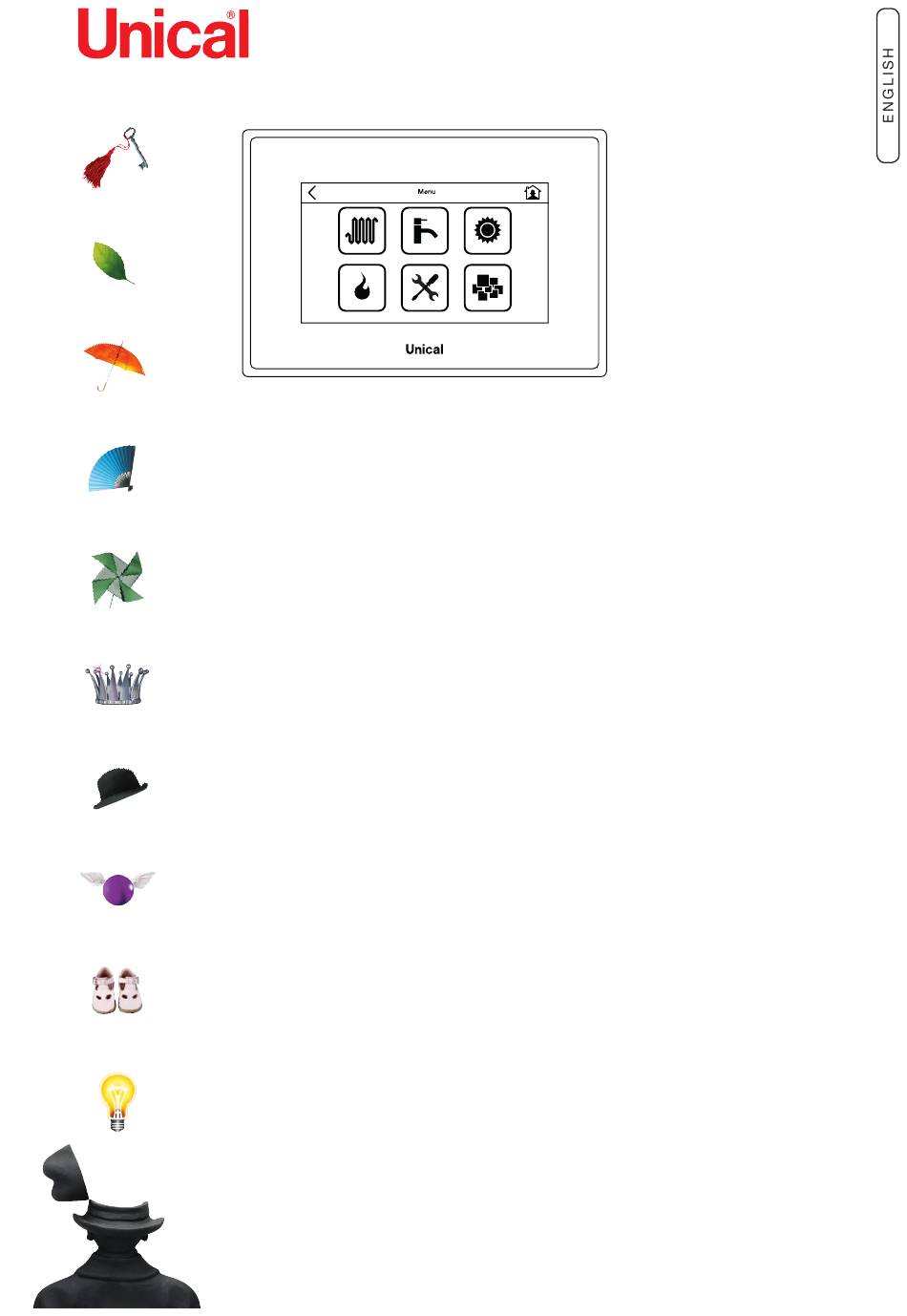

- Page 1 Ufly BOX TOUCH CONTROL INSTALLATION AND SERVICING MANUAL...
- Page 3 Description 1.1 - Reading Icons Buttons and symbol (outline + filled color area) Buttons and symbol (outline + empty color area) This service is in operation at that time Present and active service but not in operation at that time Buttons and symbol (outline in dark grey no filled Buttons and symbol (outline in ligh grey no filled area)
- Page 4 Display and functions description 2.1 - Display mode 6 Display mode 7 Display mode 8 Display mode Disbled Home page Menù page 2.2 - Button One page back and Button Home 2.3 - Display in Home page One page back INFO: see at page 26 Return always to Home page...
- Page 5 2.4 - Menù Set up...
- Page 6 Menù Set up...
- Page 7 Menù Set up If change language, it is necessary to remove and insert RJ plug, to store changes. Set parameters Save changes...
- Page 8 Menù Set up Ufly APP (*) Connecting to the net (select Icon Net) Wait few seconds, on the display of Ufly BOX Wait and select the defined Net will show a random code xxxxxx (**) in the box Pairing. Wait for connection to defined Net, access to WI-FI Password and digit.
- Page 9 2.5 - Menù Device At every boiler lighting, UFLY BOX scans devices, if new devices are recognized, such as: hcm / Heating / Burner Control Manager System manager / Cascade Slave Heating Controller Multifunction module Burner Modul Manager They are displayed on the next screen, and is prompted to save the new configuration.
- Page 10 Menù Device BMM / HCM Parameter List of parameter in par. 4.2 instruction manual of the boiler To change the parameters is required password. Hystorical Error Clean display with Button Clear.
- Page 11 2.6 - Menù Heating Selection circuit CH Change name to circuit and Save. Set Day Type Eventually rename Day 1 Day 5 ..example: Working day, Weekday, Festive.
- Page 12 Set periods 3 Time slots. Set Week Type (1) Set Week Type (2) Insert day of the week join the day Eventually rename Week 1..Week 3 example: Autumn, Winter, Jolly. (mon-fri-sat-sun) the day type Day1..Day5 Insert day of the week separately (mon-tue-wed.-thu.-fri.-sat-sun) the day type Day1..Day5.
- Page 13 Select circuit to show set program Standby Comfort Week1 Week2 Week3...
- Page 14 Menù Heating Touching the icon It shows only the details of the program in the 1-2-3 ... period.
- Page 15 Menù Heating Edit Parameters Heating circuit. Touching Settings icon you can change the hi- ghlighted parameter. It is required password. For other parameters you need not password. The parameters displayed are relative to the hea- ting program. Note: - To change the heating parameters is not neces- sary to go in the DEVICES menu.
- Page 16 Menù Heating Activation in Working Manual Working Manual set the parameter Return to operation with the set program (automatic). Is it possible View and Modify program and HEATING From Home Page parameters Example Boiler in Error (Block): Reset the boiler with R button...
- Page 17 2.7 - Menù DHW Set Day Type Eventually rename Day 1..Day5 example: Working time, Weekday, Festive. Set periods 3 Time slots.
- Page 18 Menù DHW Set Week Type (1) Set Week Type (2) Eventually rename Week 1..Week 3 Insert day of the week join the day example: Autumn, Winter, Jolly. (mon-fri-sat-sun) the day type Day1..Day5 Insert day of the week separately (mon-tue-wed.-thu.-fri.-sat-sun) the day type Day1..Day5.
- Page 19 Menù DHW Select circuit to show set program Standby Comfort Week1 Week2 Week3...
- Page 20 Menù DHW Touching the icon It shows only the details of the program in the 1-2-3 ... period. Edit Parameters DHW The parameters displayed are relative to the heating program. Touching Settings icon you can change the highli- Note: ghted parameter. It is required password. - To change the heating parameters is not ne- For other parameters you need not password.
- Page 21 Menù DHW Working Manual set the parameter Activation in Working Manual Return to operation with the set program (automatic). From Home Page Is it possible View and Modify program and DHW parameters Example Boiler in Error (Block): Reset the boiler with R button...
- Page 22 2.8 - Menù Solar NOT ACTIVE...
- Page 23 2.9 - Menù Burner WARNING! Function reserved exclusively to authorized service centers. 1 - Insert psw and select sweeper again 2 - Activation 3 - Choice boiler/burner avaible indicated by eg: usually 1 / MODULEX 1÷8 4 - Activation...
- Page 24 Menù Burner 5 - Boiler operating with modulation max 100% 6 - Change % of modulation to the minimum 10% and select the boiler/burner 7 - Boiler operating with modulation min. 8 - Disable SWEEPER function. This displayed parameter are relevant to burner Note: - To change burner parameters is not neces- sary to go in the DEVICES menu.
- Page 25 Menù Burner Manual Activation of Boiler Touching inicated Icon, you manually activate the boiler, without possibility to set the time. Reset to clear the counters.
- Page 26 Info INFO Touching indicated icon, you can select the pa- rameter to be displayed in the HOME page. changed from a value Pressure to Return temp.
- Page 27 Screen Calibration (To be made in event of difficulties in use of buttons) Touch display and at the same time disconnect the RJ cable from UFLY BOX Always touching the screen, insert the RJ in UFLY BOX Wait display activation...
- Page 28 - export@unical-ag.com - www.unical.eu Unical declines every responsibility for the possible inaccuracies if owed to errors of transcript or press. Also reserves the right to bring those changes that it will hold necessary to it own products or profits, without jeopardizing its essential characteristics.
