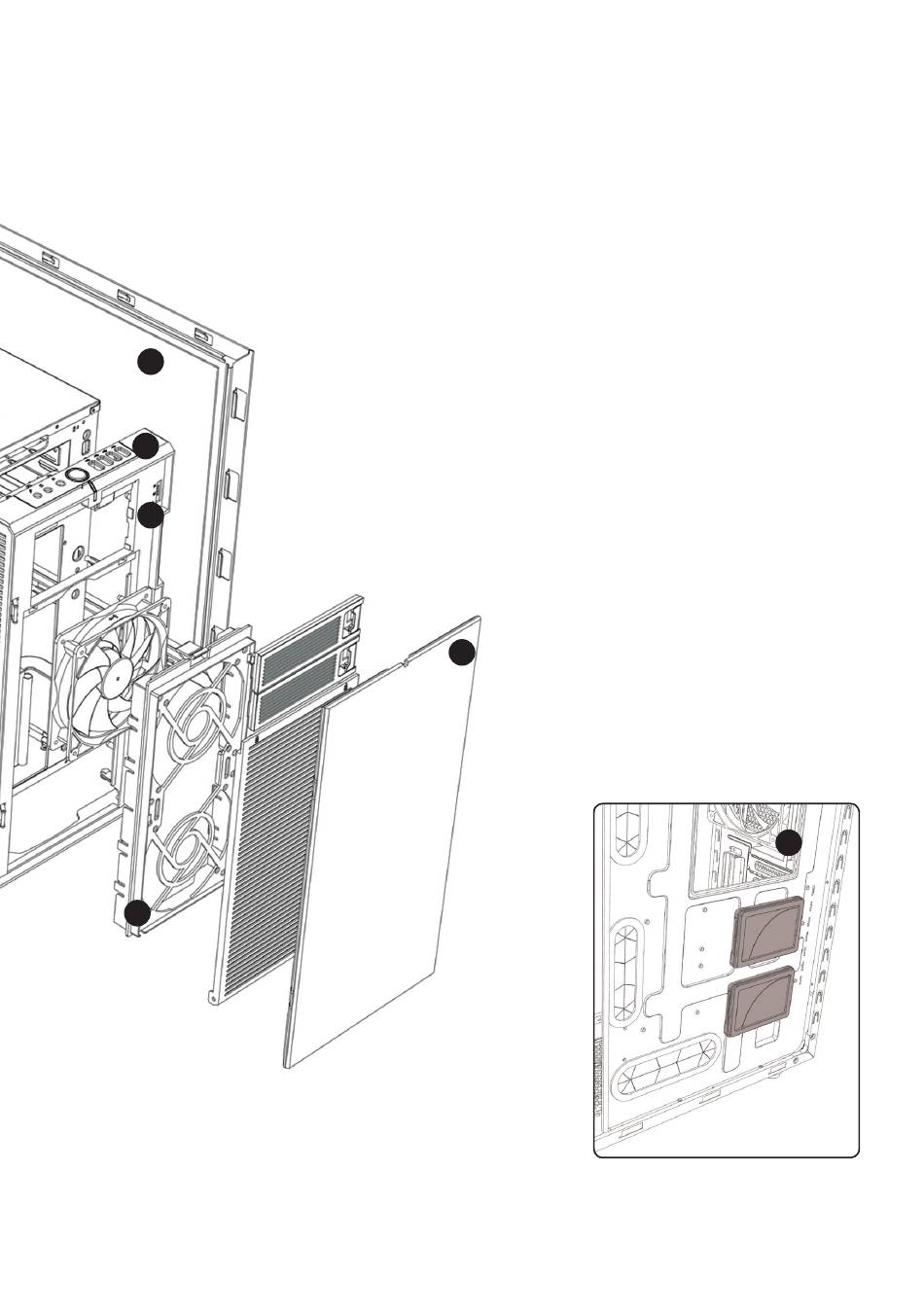

Exploded View DEFINE R4
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
1
** SSD drives have to be mounted before motherboard is mounted.
In order to be able to secure screws.
Frontpanel
Mounting bracket for fans including
fan filter
USB 2.0 and USB 3.0
Removable upper hdd cage
Lower hdd cage
hdd mounting bracket
Bottom dust filter
ModuVent
Noise damping material
Air intake
Fan controller switch
Placement for SSD drives **
Backside of motherboard tray
