Summary of Contents for Fractal design Define R3

  • Page 2 About Fractal Design – our concept The concept of Fractal Design is to provide products with an extraordi- nary design level, without compromising the important factors of qual- ity, functionality and pricing. The computer of today has come to play a central role in most people’s home, creating a demand for appealing de-...

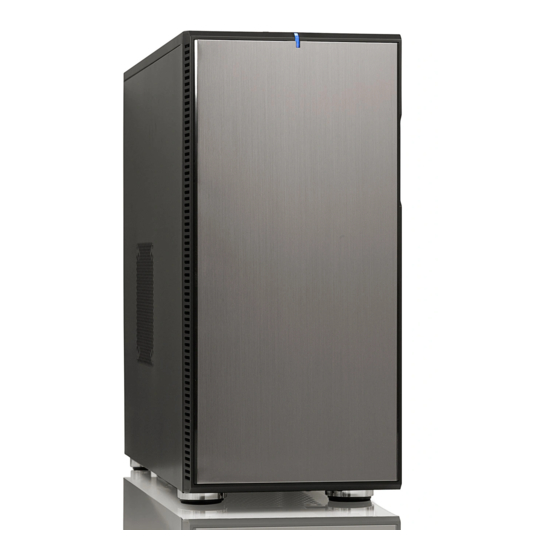

  • Page 3 Introduction Fractal Design’s Define R3 case series offers stylish cases packed with features, all to an affordable price tag. Features Stylish front panel with noise insulated door Unique ModuVent feature which allows you to either have fan holes in side and...
  • Page 4 First, you need to remove the ModuVent lids covering the side and top panel holes. 10. Connect all cooling fans to either the motherboard or the PSU. 11. Connect the AC power cord to the Fractal PSU and turn on the on/ off switch. Fractal Design...
  • Page 5 3. Front fan holder w/ filter 4. Top ODD cover 5. Lower ODD/3,5” cover 6. Metal HDD tray 7. 5,25” ODD bays 8. Side panel w/ ModuVent 9. Bottom fan holder w/ filter 10. Rear fan hole 11. Top fan holes Fractal Design...
