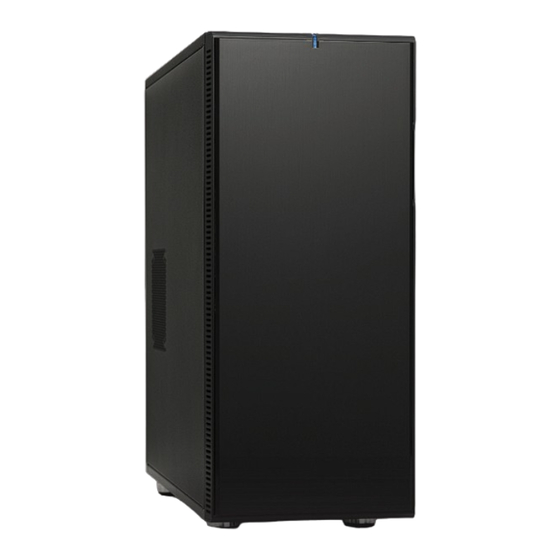

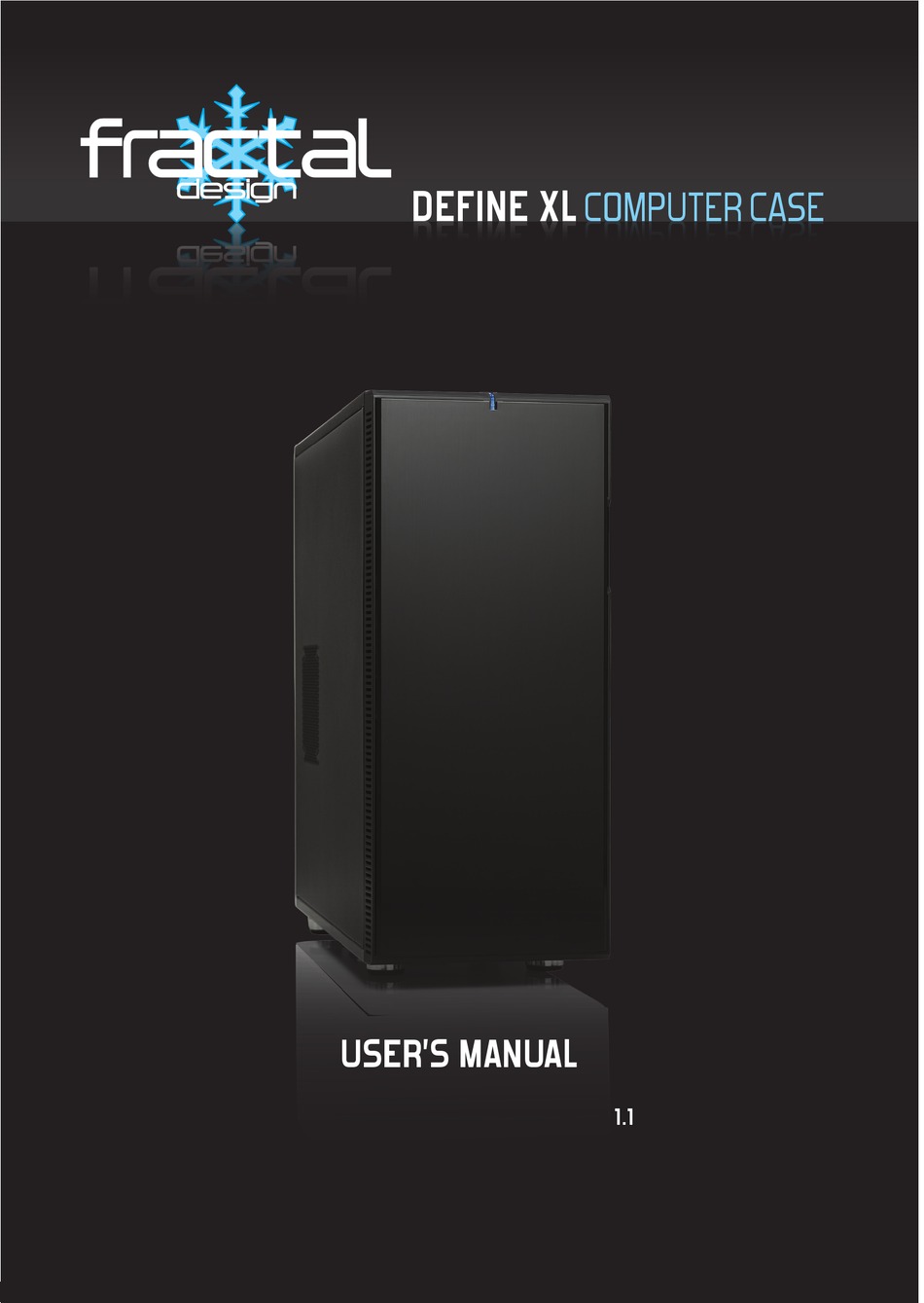

- Page 1 DEFINE XL COMPUTER CASE D E F I N E X L C O M P U T E R C A S E USER’S MANUAL...
- Page 2 About Fractal Design – our concept The concept of Fractal Design is to provide products with an extraordinary design level, without compromising the important factors of quality, functionality and pricing. The computer of today has come to play a central role in most people’s home, creating a demand for appealing design of the computer itself and its ac- cessories.
- Page 3 Water cooling holes for external water cooling products • Quality feets with anti-vibration material • Compatibility o Mini-ITX, Micro ATX, ATX and E-ATX o 7+1 expansion slots o ATX PSU (not included). Anti-vibration pads to avoid vibrations from PSU • Case dimensions o 21” (H) x 9”(W) x 20.5” (D) o 530 mm (H) x 230 mm (W) x 521 mm (D) Fractal Design...
- Page 4 Included in the chassis is a rotatable/removable HDD cage. The user can choose to either use it in default position with HDD connectors mounted backwards for optimum cable management, or mount it sideways for best cooling performance with HDD’s mounted. Fractal Design...
- Page 5 The lower HDD chamber uses the lower 140mm fan in the front for air intake. The airflow is, by default, pushed through the HDD bays, cooling the HDD’s and then warm air is going out through the cable routing holes to the back, going out on the back side holes. We do provide the flexibility to remove the wall to the PSU chamber, so the air can go straight into the PSU chamber and out above the PSU. Fractal Design...
- Page 6 Fractal Design...
