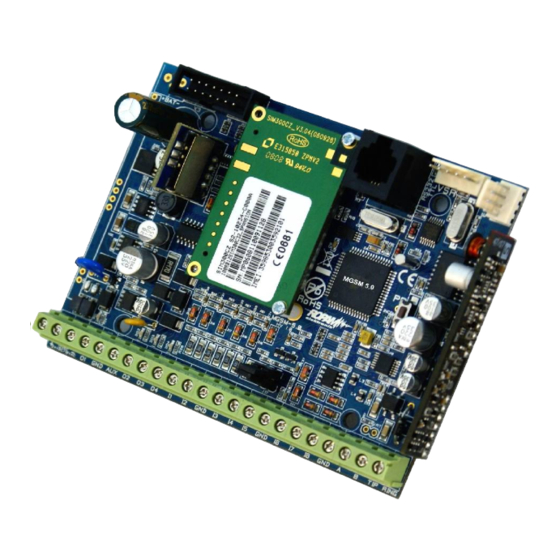

Ropam elektronik MGSM 5.0 Installation And Operating Manual

Gsm notification and controll module with gsm gate function (telephone pstn line simulation)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NEW FUNCTIONS:
support USSD codes (handling and transfer)
•
for example, to activate services, supplementary services, checking the
available limit on your account in the prepaid system.

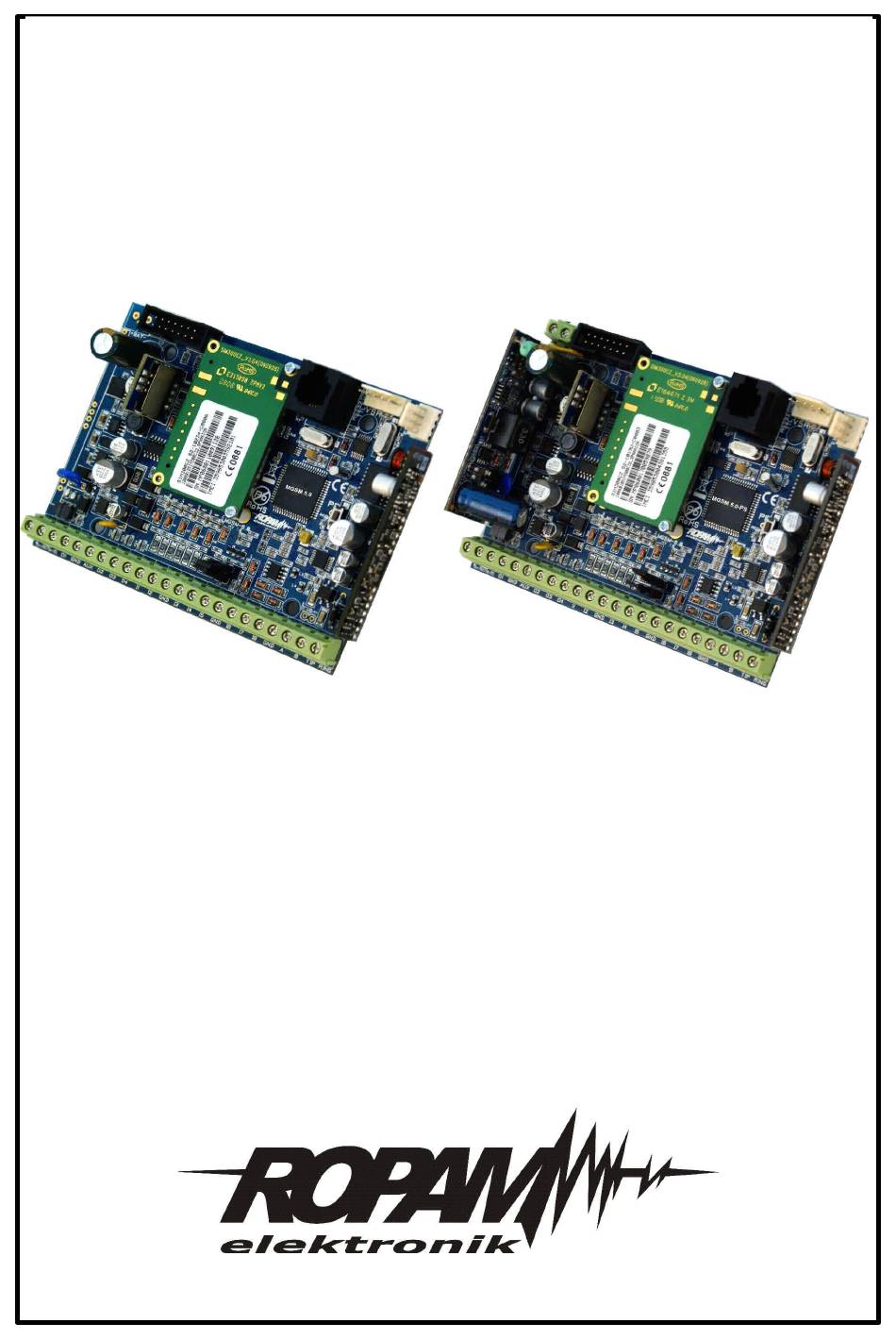

MGSM 5.0/MGSM 5.0-PS
GSM NOTIFICATION AND CONTROLL MODULE
with GSM GATE function
(telephone PSTN line simulation).
Installation and operating manual.
©2011 Ropam Elektronik

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGSM 5.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Ropam elektronik MGSM 5.0

Summary of Contents for Ropam elektronik MGSM 5.0

  • Page 1 USSD codes (handling and transfer) • for example, to activate services, supplementary services, checking the available limit on your account in the prepaid system. MGSM 5.0/MGSM 5.0-PS GSM NOTIFICATION AND CONTROLL MODULE with GSM GATE function (telephone PSTN line simulation).
  • Page 2 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN WARNINGS: • For safety reasons the equipment may be installed only by qualified personnel. • Prior to installation read the instructions. All installation procedures should be performed with the power supply disconnected.

  • Page 3: General Description

    - cooperation with VSR-2 voice synthesizers (16 messages) - cooperation with voice module (MC1), object listening function 'control panel' -mini alarm unit - KIT: MGSM 5.0 + PSR-RF+ casing, controlled with: keyfob, SMS, input - KIT: MGSM 5.0-PS + casing controlled with: SMS, input inputs [8]: - wide range of reactions, e.g.

  • Page 4: Module Description

    MGSM 5.0/5.0-PS, it is ideal for: • intrusion, assault or fire signaling systems: - as a signaling and controlling channel for control panel - GSM dialer: SMS, CLIP, SMS+CLIP • access control systems: - controlling gateway: with SMS(+access code) or CLIP - GSM dialer: system failure, status etc.
  • Page 5 (5), in the event of violating/sabotaging the input. 3.2.2 VSR-1: VOICE SYNTHETIZER Module memorizes 20 second voice message. MGSM 5.0 is fully operable with the VSR-1 synthesizer. 3.2.3 MC1: AUDIO MODULE...

  • Page 6: Installation

    The extended PSR version with built in two channel radio controller for the remote control of the MGSM 5.0 (utilizing the control panel function). PSR-RF as an independent device can functionally replace any two channel radio link and a buffered 13.8V DC/1.3A power supply (together with the O-R2/O-R3 housings).
  • Page 7 4.2. CONNECTING THE VOICE SYNTHETIZER OR AUDIO MODULE. The MGSM 5.0/5.0-PS module has a VSR socket intended for connecting the VSR-2, ARA and the MC-1 audio or other (e.g. utilized in CCTV) voice synthesizer modules, provisioned for listening in on the object.
  • Page 8 Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN authorized lines). To connect the MGSM 3.5/3.5-PS, MGSM 5.0/5.0-PS, VSR-2 and AMR-1 (or other) modules, the 5-pin plug should be used. The connections should be performed, as in the diagram, using the microphone cable or twisted UTP pair over small distances.
  • Page 9 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN contact Polarity type: NO. contact contact- TAMPER Polarity type: EOL (with a TAMPER contact). contact contact- TAMPER Polarity type: 2EOL/NC (with a TAMPER contact). contact contact- TAMPER Polarity type: 2EOL/NO (with a TAMPER contact).
  • Page 10 (the jumper JI7 or JI8 isn't installed) 4.4. DEVICE CONNECTION TO OUTPUTS. The MGSM 5.0/5.0-PS module has got outputs for control and signaling the operation status. - O1: in the active state we can connect (NO) or disconnect (NC) +12V power supply (transistor output controlling the power supply “+”...
  • Page 11 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN RELAY 12V DC (coil) Output O1: connecting a relay 12VDC (coil). - O2, O3, O4 in the active state can connect (NO) or disconnect (NC) the 0V power supply (GND), the open collector (OC) transistor outputs, control the ground of the power supply, 100mA max.

  • Page 12: Software Description

    The PARTNER GSM (v3.5) software is intended for operation on PC class computers running under the WINDOWS 9X/Me/2000/XP/VISTA operating system. Communication between PARTNER GSM and MGSM 5.0/5.0-PS is accomplished via: the RS232 port or the USB (1.1, 2.0) port utilizing communication cables with a built in RS-232-RS232-TTL or a USB-RS232-TTL converter.
  • Page 13 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN FILE > NEW - configuring the MGSM xxx module in the offline mode > READ – opening the configuration file from the computer disc (*rpm) > WRITE – writing the present configuration to the computer disc >...
  • Page 14 5.2. “PARTNER GSM” COMMUNNICATION WITH THE MGSM 5.0/5.0-PS 5.2.2 LOCAL CONFIGURATION VIA RS 232TTL (PC: RS232, USB) The MGSM 5.0/5.0-PS module is configured via the RS 232 TTL interface. To enter the configuration process, the following actions should be performed: 1.
  • Page 15 (confirmation of the CRC checksum). 5.3. COMMUNNICATION CABLES: RS232-MGSM, USB-MGSM. The connection diagram of the RS232-MGSM or the USB-MGSM cable to the MGSM 5.0/5.0- PS module. The SAT_TTL-MGSM cross-over is delivered together with the cable. After disconnecting it, the cable can be used for programming other devices with RS232TTL interface (equivalent to RS- CA5/CA6).

  • Page 16: Functional Description

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 6. FUNCTIONAL DESCRIPTION Functions descriptions and configuration method are explained in the windows and with messages in the PARTNER GSM software. Remarks: The constantly updated software and newly implemented new functions can be •...

  • Page 17: Phone Numbers

    PC computer. 6.2.1 PHONE NUMBERS The MGSM 5.0/5.0-PS module can signal four telephone numbers. The numbers should be entered in the international format. e.g. mobile number: +48555666777, fixed phone number: +48125556677 6.2.2 SMS CENTER...
  • Page 18 The module has got eight inputs on the main board. 6.3.1 MGSM INPUTS POLARITY: ● The inputs of MGSM 5.0/5.0-PS can operate with many types of polarities: I1-I6: NO, NC, EOL, 2EOL/NO, 2EOL/NC, OFF I7-I8: NO, NC trigger by (0V ) or (+VDC) NO –...
  • Page 19 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN JI8 is by default (ON)/ NO in the I8 in the NORMALLY OPEN state, is triggered software by the (short circuit) GND signal. I8 in the NORMALLY OPEN state, is triggered JI8 is (OFF)/ NO in the software by the disconnecting“plus”...

  • Page 20: Reaction Time

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN TYPE: ● INFO- data on input does not trigger the alarm function, but initiates SMS sending ● and the call queuing process. 24h- module enters the alarm state, sends SMS messages and makes calls, ●...
  • Page 21 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN Enter the characters corresponding to the numbers of registered voice messages and/or object sound detectors: - Messages: 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,F (message maximum time: 0-7 = 16s; 8-F = 8s.)
  • Page 22 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN length of the SMS message is 20 characters. Do not use special characters (for example: letters of the Polish alphabet). 6.3.3 SEND SMS TO / CALL: This tab enables the flexible determination of the telephone numbers to which an SMS message and/or voice message is to be sent.
  • Page 23 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 6.4.1 OUTPUTS - OPTIONS • POLARITY Choice of configuration in normal mode: - open NO or shorten NC to the module „plus”: O1 output, - open NO or shorten NC to the module „mass”: outputs O2, O3, O4 •...
  • Page 24 FAILURE – the output is activated after a failure has occurred. • NO AC – the output is activated after a decay in the AC supply has occurred (MGSM 5.0- • PS only), the time of delay for signaling “no AC supply” (5s – 1,000 min) is configured in the OPTIONS tab.
  • Page 25 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN Remarks: it should be remembered, that the number via which we want to control the • output can not be “unlisted”. if numbers 1-8 remain unmarked or ALL (ANY) option is chosen, the module •...
  • Page 26 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN ⊕ Logical function 'xor' (XOR, , where Y = output, A/B = input/output). • It is a logic circuit which has the signal value “1” at the output only when one of input signals is “1”.

  • Page 27: Transmission Test

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 6.5.1 TRANSMISSION TEST Option enables determination of a testing method of the module connection with the GSM network. To activate the options, mark TRANSMISSION TEST. Remarks: The transmission test is sent only to the first telephone number (entered in the •...
  • Page 28 NO AC SUPPLY – enter the SMS message content corresponding to the decay of AC • voltage (MGSM 5.0-PS only) in the tab. The time of signalization delay is configured in the DELAY [min] tab (in 5s – 1,000min range).

  • Page 29: Sms Commands

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN number of sent SMS alarm and information messages during one day. Set the number in the range 1-99. FAILURE COUNTER – determines the maximum number of sent SMS messages •...

  • Page 30: Incoming Calls

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN Marking the RETURN ACKNOWLEDGEMENT option will cause that every command sent with the use of the access code will be acknowledged by a returned SMS confirming a correctly accomplished operation.

  • Page 31: Outgoing Numbers

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 6.6 GSM GATE The bookmark is used for configuration of telephone line output options (“GSM gate”) output numbers dialed with an analogue telephones • prefixes deleted and added to the dialed number •...
  • Page 32 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN include maximum to nine characters (figures and special characters e.g. '+','*') 6.6.3 ANALOGUE TELEPHONE OPTIONS These options are used for configuration of telephone line output operation (GSM gate) depending on: occurring incoming connection, module state.

  • Page 33: Enter Pin Code

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN module power supply voltage • access to control SMS sending option (simulation of test SMS) • 6.6.6 MONITORING OF INPUT STATES The input states are displayed on round indicators mounted in places of screws securing module connectors.

  • Page 34: Set Time And Date

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN REQUIRED, to prevent automatic PIN code insertion by the module procedure. Remarks: all procedures involved in replacing the SIM card, like jumper selection, ● interface and module connections, should be performed after disconnecting the...
  • Page 35 SMS messages is tested in the SMS center. ● 6.7 UPDATE The modern solutions deployed in MGSM 5.0/5.0-PS, the processor system with the software in the FLASH memory, permit software updating, often containing new functions. Downloading new FIRMWARE via the module RS232TTL port, is possible without the necessity of uninstalling from the object.
  • Page 36 (firmware) for all MGSM modules. The file list will be displayed in the dialog window of the PARTNER GSM software. An appropriate file for the hardware configuration (MGSM 5.0/5.0-PSE) should be chosen by clicking it twice. The file will be downloaded and the following information will be displayed: b.
  • Page 37 PARTNER GSM messages. 6.8 EVENTS The MGSM 5.0/5.0-PSx real time clock enables writing to the module event memory: input entry violations, functions, tests etc. The memory can register up to 90 events taking place recently in such a way, that the oldest information is overwritten successively.

  • Page 38: Additional Info

    6.9 POWER SUPPLY PSR-RF The following modules are dedicated to MGSM 5.0 power supply and control: PSR of the buffered power supply – enables digital status transmission via SMS •...
  • Page 39 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN (operation/failure), independent 1A output for MGSM-5.0 power supply and 0,3A for other devices, rechargeable batteries max. 1.2 Ah – 7 Ah/12V, power supply event register in the MGSM-5.0 PSR-RF of the buffered power supply with built in two channel radio •...
  • Page 40 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 7. REMOTE CONFIGURATION OF THE MODULE THROUGH SMS MESSAGES The functionality of the module enables a remote alteration of selected configuration parameters. It is effected through sending an SMS message, which contains an appropriate command with an access code.
  • Page 41 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 7.2. Remote configuration of INPUTS The configuration SMS syntax has the following format: yyyy Ix [parameter1 parameter2 parameter3..] Where: - yyyy = access code; - Ix = input with the no. x = {1..8}...
  • Page 42 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 7.3. Remote configuration of OUTPUTS The configuration SMS syntax has the following format: yyyy Ox [parameter1 parameter2 parameter3 parameter4] Where: - yyyy = access code, Ox = output with the no. x = {1..3}...
  • Page 43 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN CONTENT “aaaa” SMS message is sent as a CONTENT “aaaa” = maximum 20 transmission test “GSM Module characters OK” TIME hh:mm Transmission test time, TIME 08:30...
  • Page 44 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN DELAYED input (for the alarm control panel function) EXIT xx The parameter determines the EXIT 30 xx = a number between 1 time of exiting for the alarm...
  • Page 45 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 8. MODULE OPERATION SATUS SIGNALING The MGSM 5.0/5.0-PS module is equipped with an optical status signaling system. Four LED diodes mounted on the module board display the operation status of: signaling, communication with PC, software update.
  • Page 46 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 7 – PIN code error, 8 – problem with SIM card, 10 – rapid flashing signifies configuration data damage in EEPROM memory PROGRAMMING (communication with PC): –...
  • Page 47 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN The function of controlling via SMS messages is realized by sending an SMS message with  the following content: Command (yyyy = access Description Example code) Onx yyyy ACTIVATION of output x, where “x”...
  • Page 48 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN Network: P (Network level status P:1-5) Failure/No failure (Failure status) Clock not set (Date and time missing status) No AC supply (For the version with integrated PS feeder)
  • Page 49 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN by any standardization body, so each network operator can implement whatever it finds suitable for its customers. USSD can be used to provide independent calling services such as a callback service (e.g.
  • Page 50 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 10.1. DTMF control module state – armed, alarm deleting DTMF CODE Description /Event Confirmation (yyyy= access code) (VSR-2 message or confirmation) yyyy +[#] ARMING message: “ARMED”...
  • Page 51 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN Entering a particular function relies on giving the DTMF code of the function e.g. [1], [2]..depending on the number, the control is available or there is played information about the system state.

  • Page 52: Exit Main Menu

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 7 – PIN code failure 8 – SIM card problem [KOD]+[#] ENTER THE CODE message: ”SYSTEM ARMED” ”SYSTEM DISARMED” return to the “ERROR” main menu OBJECT SOUND...
  • Page 53 Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN the module is designed to send „human voice” and DTMF formats • Ropam Elektronik does not hold any responsibility for failures of GSM network • e.g. „busy network”, lack of GSM signal etc.
  • Page 54 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN not set not set not set not set not set CALL TO TEL1, TEL2, TEL3 TEL4 (VOICE) not set not set not set not set not set...

  • Page 55: Technical Data

    2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN 13. TECHNICAL DATA TECHNICAL PARAMETERS Value MGSM 5.0 U = 9V÷14V/DC min/max @ 1,3A min. Power supply U = 17V÷20V/AC min/max @ 30VA min. MGSM 5.0-PS U = 20V÷28V/DC min/max @ 0,7A min.
  • Page 56 2011© Ropam Elektronik sales@ropam.com.pl www.ropam.eu Instalattion and operating manual: MGSM 5.0/MGSM 5.0-PS v.1.8S EN Manufacturer: Ropam Elektronik s.c os.1000-lecia 6A/1 32-400 Myślenice, Poland tel/fax.+48-(0)-12-272-39-71 sales@ropam.com.pl www.ropam.eu List of versions Version Publication date Change, description actualization 1.0S 15.01.2009 First English version.
