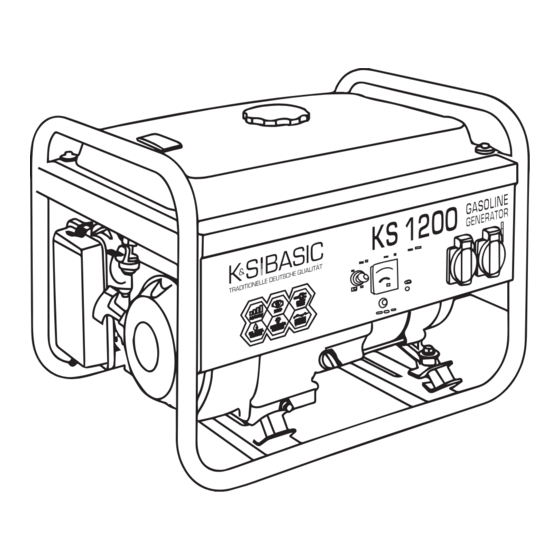

- Page 1 OWNER’S MANUAL Please, read this manual carefully before use! Gasoline Powered Generator KS 1200C KS 2200A KS 2200C KS 2800A KS 2800C...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PREFACE 2. SAFETY PRECAUTIONS 2.1. Work area 2.2. Electrical Safety 2.3. Personal Safety 2.4. Safety Precautions for Gasoline Powered Generator Operation 3. SAFETY SYMBOLS 3.1. Description of safety symbols when operating the generator 4. DESCRIPTION OF GENERATOR INSCRIPTIONS 5. -
Page 3: Preface
1. PREFACE Thank you for your purchase of K&S Basic generator. This owner’s manual contains safety instructions, a description of the use and commissioning of K&S Basic generators and procedures for their maintenance. The generator manufacturer may make some modifications that may not be reflected in this manual. -
Page 4: Electrical Safety
is recommended to store and use the generator indoors or in well-ventilated premises. - Always install the generator on a flat solid horizontal surface. The generator is equipped with dampers to reduce vibration during operation and avoid damage to the surface where the generator is installed. - Do not use the generator near flammable gases, liquids or dust. -
Page 5: Safety Precautions For Gasoline Powered Generator Operation
WARNING - DANGER! Failure to comply with these requirements may result in fire or explosion of the generator, as well as fire in the building wiring. - Do not operate the generator in areas with poor ventilation. Exhaust gases contain poisonous carbon monoxide, which is life threatening! - Make sure there are no foreign objects on the generator when it is turned on. -
Page 6: Safety Symbols
3. SAFETY SYMBOLS 3.1. DESCRIPTION OF SAFETY SYMBOLS WHEN OPERATING THE GENERATOR Fig. 1 Fig. 2 a. Be careful when operating the device! Observe safety precautions to avoid electric shock. the safety instructions in this manual. f. Read this owner’s manual carefully before b. -
Page 7: Description Of Generator Inscriptions
4. DESCRIPTION OF GENERATOR INSCRIPTIONS APART FROM THE SAFETY SYMBOLS, THE GENERATOR CONTAINS THE FOLLOWING INSCRIPTIONS: Specifications chart. Specifications vary from model to model. For more information, see “Generator Specifications”. Noise level information for each model can be found in the specifications chart. -
Page 8: General View And Composition
5. GENERAL VIEW AND COMPOSITION OF THE GASOLINE POWERED GENERATOR Fig. 3 1. Fuel cap 7. Air filter 2. Control panel 8. Air choke lever 3. Oil dipstick 9. Fuel level indicator 4. Oil drain cap 10. Damper 5. Hand starter 11. -
Page 9: Generator Specifications
6. GENERATOR SPECIFICATIONS: Model KS 1200C KS 2200A KS 2200C Voltage (V) Maximum power (kW/kVA) 1,0/1,0 2,2/2,2 2,2/2,2 Rated power (kW/kVA) 0,9/0,9 2,0/2,0 2,0/2,0 Frequency (Hz) Current (A) 4,35 9,57 9,57 Outlets 2*16А 2*16А 2*16А Fuel tank capacity (L) Operation time at 50% load... - Page 10 Model KS 2800A KS 2800C Voltage (V) Maximum power (kW/kVA) 2,8/2,8 2,8/2,8 Rated power (kW/kVA) 2,5/2,5 2,5/2,5 Frequency (Hz) Current (A) 12,7 12,7 Outlets 2*16А 2*16А Fuel tank capacity (L) Operation time at 50% load Voltmeter Noise level (dB) Output 12 V (A) 12/8,3 12/8,3 Engine model...
-
Page 11: Generator Delivery Package
7. GENERATOR DELIVERY PACKAGE 1. Generator 2. Packaging 3. Owner's manual 4. Spark plug wrench 8. CONTROL PANEL Fig. 4 1. Voltmeter 2. Safety switch 3. Outlets 4. Engine start button (ON/OFF) 5. 12 V/DC sockets 6. Ground connector USE CARE WHEN THE GENERATOR IS RUNNING: - You can use the generator if the voltmeter indicates a value of 230 V ±10% (50 Нz). -
Page 12: Commissioning
9. COMMISSIONING The generator is supplied without fuel. Before use, be sure to fill the fuel tank. Recommendations for refueling are listed below. The generator is supplied without motor oil. The generator crankcase may contain oil residues after factory tests. Be sure to add oil before use. Recommendations for oils and filling procedure are given below. -
Page 13: Engine Start
11. ENGINE START WARNING - DANGER! Before starting the engine make sure that the total power of tools or power consumers corresponds to the rated power of the generator. Do not exceed the rated power of the generator. Do not connect any devices before the engine start! In the power supply mode, the generator should operate no longer than 30 minutes in the range from rated to maximum power. -
Page 14: Engine Stop
12. ENGINE STOP PLEASE NOTE! Disconnect all devices before stopping the generator! Do not stop the generator if it has any devices connected to it. This may disable the generator! 12.1. GASOLINE POWERED GENERATOR STOP: 1. Disconnect all power consumers from the generator, set the safety switch to the OFF position. -
Page 15: Recommended Maintenance Schedule
14. RECOMMENDED MAINTENANCE SCHEDULE Checking Motor level Changing Cleaning filter Changing Cleaning Sparking plug Changing Checking Fuel level tank Cleaning Fuel Cleaning filter 15. SPARK PLUG MAINTENANCE A spark plug is an important element that ensures proper engine operation. It must be intact, properly gapped and free of deposits. -
Page 16: Recommended Oils
16. RECOMMENDED OILS Motor oil significantly affects the engine performance and is the main factor that determines its service life. Use oil intended for four-stroke automobile engines, as it contains detergent additives that meet or exceed the SE standards according to the APE classification (or equivalent). -
Page 17: Air Filter Maintenance
WARNING - DANGER! Oil pollutes soil and groundwater. Avoid oil leaking out of the crankcase. Dump used oil into the sealed container. Hand over used oil to waste oil collection point. 17. AIR FILTER MAINTENANCE The air filter should be checked for contamination from time to time. Regular maintenance of the air filter is necessary to maintain sufficient air flow in the carburetor. -
Page 18: Generator Storage
18. GENERATOR STORAGE The generator must be stored in a dry, well-ventilated area that is free from dust. Keep away from children and animals. It is recommended to store and use the generator at a temperature of -20 to +40 °C. Do not expose the generator to direct sunlight and precipitation. -
Page 19: Troubleshooting
21. TROUBLESHOOTING Fault Probable cause Remedy The engine start key (button) Set the engine start key is set to the OFF position (button) to the ON position The fuel valve is set to the “CLOSE” Move the fuel valve to the position “OPEN”... -
Page 20: Average Power Ratings Of Devices
22. AVERAGE POWER CONSUMPTION OF DEVICES Device Power (kW) Iron 500-1100 Hair dryer 450-1200 Coffee machine 800-1500 Electric cooker 800-1800 Toaster 600-1500 Heater 1000-2000 Vacuum cleaner 400-1000 Radio 50-250 Grill 1200-2300 Oven 1000-2000 Fridge 100-150 TV set 100-400 Perforator 600-1400 Drill 400-800 Freezer... -
Page 21: Warranty Provisions
WARRANTY TERMS: Warranty repair is carried out only if you have a fully completed warranty card, the Buyer's signature of acceptance of the warranty terms, as well as a document supporting the purchase (cash receipt, sales slip or invoice). In the absence thereof, as well as in the event of errors or corrections not authenticated by the seller's seal or illegible inscriptions in the warranty card or tear-off coupon, no warranty repair is carried out, no objections to quality are accepted and the warranty card is withdrawn by the service center as invalid. - Page 23 CONTACTS Germany ks-power.de info@dimaxgroup.de Poland ks-power.pl info.pl@dimaxgroup.de Ukraine ks-power.com.ua sales@ks-power.com.ua...
