Soundoff Signal nERGY bluePRINT ENGCC01241 Owner's Manual

CENTRAL CONTROLLER
PART NUMBER: ENGCC01241
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can
cause heat build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer
to vehicle Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine
vehicle wiring configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-)
battery terminal or local chassis ground (-) must be sized to supply at least 125% of
max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
www.soundoffsignal.com/sales-support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the
1.800.338.7337 / www.soundoffsignal.com
1
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
automated message). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .

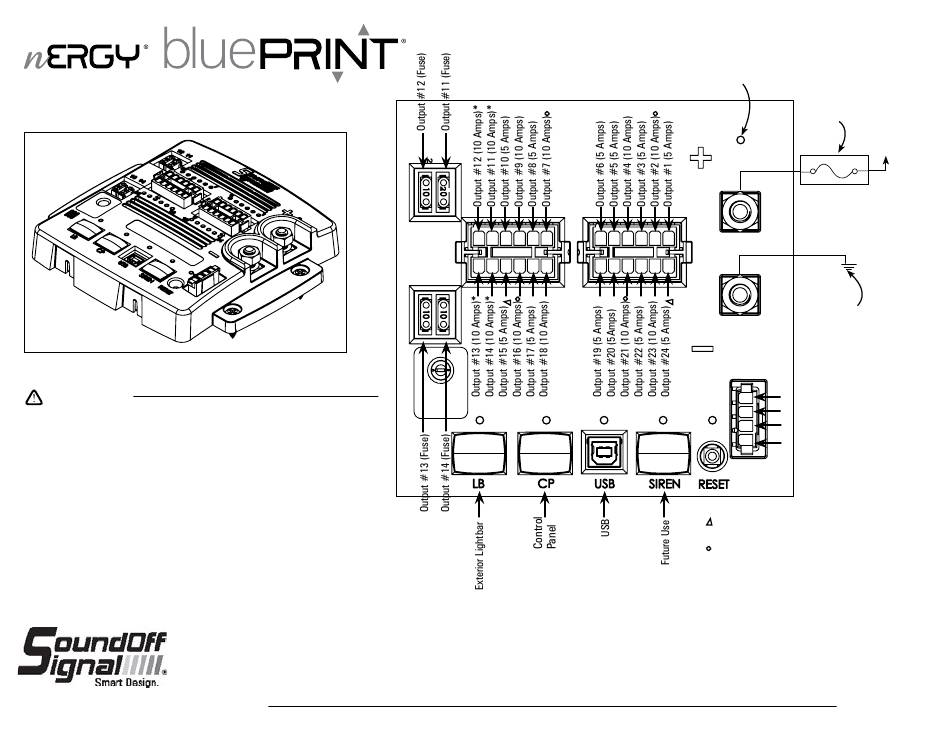

POWER DIAGNOSTIC LED
* Constant Power Outputs
NOTICE:
AUTOMOTIVE 100A
FUSE OR BREAKER
V
BATT
+
(Power)
-
(Ground)
DIRECT BATT GROUND
CONNECTION
Ignition
Input Node, 200R, up to 5 Remotes
External Reset
Internal Series Diode (to prevent backfeed
from external connections)
Higher inrush current threshold-
xenon
EVCS_Central Controller_ENGCC01241 5.16
