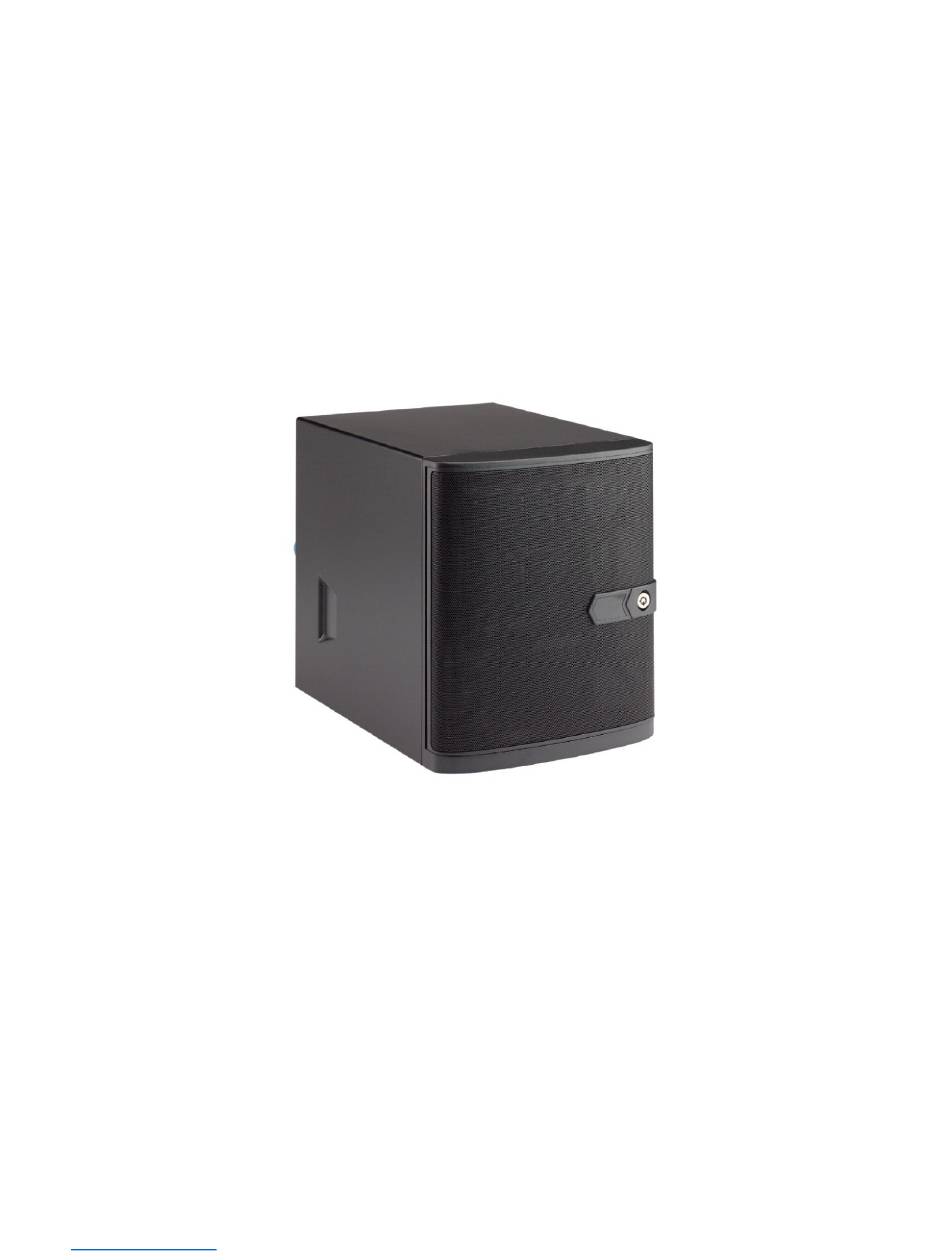

- Page 1 StoneFly VSO™ NAS Storage Appliance Product Manual Version 1.1 www.stonefly.com...
- Page 2 All rights are reserved. No part of this document may be photocopied or reproduced without the prior written consent of StoneFly. The information contained in this document is subject to change without notice. StoneFly shall not be liable for errors contained herein or for consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
Table of Contents Getting Started .............................. 4 About this Manual ............................ 4 Initial Connectivity Checklist ......................... 5 Operation ..............................6 System Interface ............................7 Control Panel Buttons ..........................8 Control Panel LEDs ............................ 8 Chassis Setup and Maintenance ........................9 Removing Power from the System ...................... -
Page 4: Getting Started
About this Manual The purpose of this manual is to guide the user through the steps required to setup a StoneFly VSO™. It provides information for the installation and use of the VSO™. The initial connectivity checklist, operation... -
Page 5: Initial Connectivity Checklist
Initial Connectivity Checklist Perform the following connectivity tasks before powering up the VSO™: 1. Connect video display to the 15 pin video port, DVI, HDMI or display port (DP). 2. Connect keyboard to the USB port. 3. Connect mouse to the USB port. -
Page 6: Operation
Product Registration Form (For faster support assistance we recommend that you register your product) 4. Your storage is set up with RAID 1 5. The factory preset system information for the VSO™ is as follows: Username: administrator Password: Stonefly Address: DHCP... -
Page 7: System Interface
System Interface The VSO™ includes a control panel which is located on the front of the chassis, behind the front bezel. This panel features power buttons and status monitoring lights. These elements are described in this section with possible responses that you may need to take. -
Page 8: Control Panel Buttons
Control Panel Buttons Power Button The main power switch is used to apply or remove power from the power supply to the server system. Turning off system power with this button removes the main power, but keeps standby power supplied to the system. -
Page 9: Chassis Setup And Maintenance
This section covers the steps required to install components and perform maintenance on the chassis. Most components of the VSO™ do not require tools or screws to set them up. Those components which must be secured with screws require only a Phillips screwdriver. - Page 10 The VSO™ chassis supports four 3.5" hot-swappable hard drives in hard drive carriers. These hard drives can be removed from the chassis without powering down the system. Removing 3.5" Hot-Swap Hard Drives 1. Unlock the front bezel and swing it open.
- Page 11 Figure 5: Installing a Hard Drive into Hard Drive Carrier Installing 3.5" Hot-Swap Hard Drives 1. Insert the new hard drive into the hard drive carrier as described on the previous page. 2. Insert the hard drive carrier into the hard drive cage, sliding it towards the back of the hard drive cage until it clicks into a locked position.
-
Page 12: Troubleshooting
Check to see if a power supply has failed. One of my power supplies has failed, what do I do? Please contact StoneFly support at the number listed on the README page, which was shipped with the system, and request an RMA for the failed drive. - Page 13 StoneFly, Inc. 26250 Eden Landing Road Hayward, CA 94545, USA. (510) 265-1616 Support@stonefly.com www.stonefly.com www.iscsi.com...
