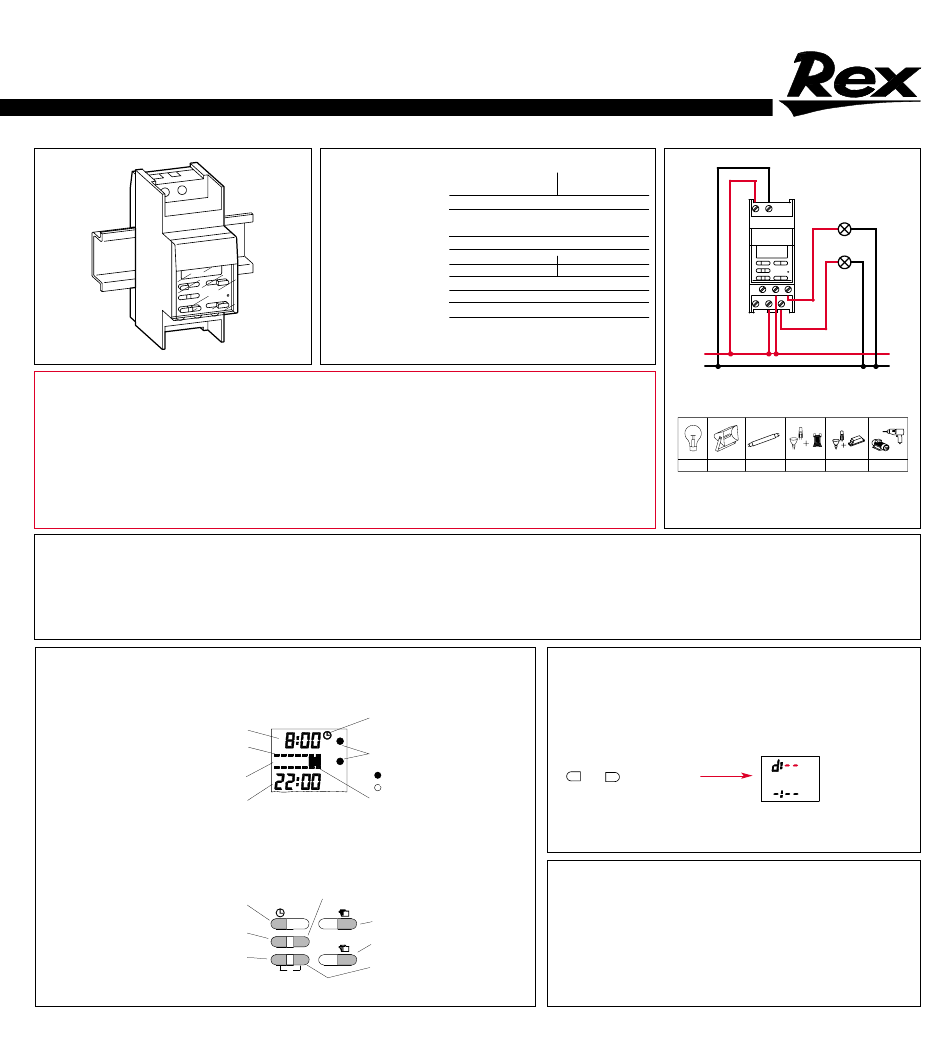

REX MicroRex D22 Quick Start Manual

Time switch
MicroRex D22
NT 29 17 87 02
Safty notes
• Installation of these products should only be undertaken by a qualified electrician.
• The operational and electrical safety is only guaranteed, if the product is installed using its proper
accessories, in a position as specified in the installation instructions.
• Any interference with the product makes the guarantee void.
• If the time switch is mounted near equipment where heat produced raises the local ambient above 55°C. Then a space should be put
between the time switch and the equipment.

Function

The MicroRex D22 is a microprocessor controlled digital time switch. Eight programs of your choice can be stored and used to control the automatic operation of your electrical equipment. Each indi-
vidual weekday can have a separate program or you can have several days operating on the same „Block" program. To program the MicroRex D22 a „picture" is used and when this is complete the
chosen times are stored in the microprocessor memory. The MicroRex D22 makes available 2 separate switching channels. The summer-/winter changeover can be programmed for hand or automa-
tic operation.
Presentation
Liquid Crystal Display
Actual or „On" time
Weekday
Day number
„Off" time
Programming Buttons
Choose function
Summer- / winter
changeover
Setting the hours, minutes,
days and channels

Technical data

Supply voltage:
Consumption: ca. 0,6W
2 changeover contact 10A 250V~µ cos ϕ = 1
Contact rating:
Parallel compensation: not allowed
Accuracy: ±2,5s/d
Terminal capacity: single strand
4 mm
Program pictures: 8
Battery reserve: 100h
Storage ambient: -10°C to +60°C
Working ambient: -10°C to +55°C
Symbol for
„Set actual time"
1
State of output
1 2 3 4 5 6 7
2
= On
= Off
„Off" days
Delete
Hand switch
Channel 1
1
± 1h
C
Channel 2
S OK
Fixing the hours, minutes,
2
days, channels and
R
continuous switching
230V 50/60Hz 120V 50/60Hz
multi strand
2 2
2,5 mm
1. Starting
Approximately 30 seconds after the supply voltage is connected the symbols
appear on the LCD.
Before any operations the complete memory must be reset.
2. Memory reset
+ press both at
S
OK
the same time
The time switch memory is completely clear.
3. Setting date and summer- / winter changeover
This can only be done after a Reset.
Summer- / winter changeover can be made manually or automatically if set.
If manual changeover is required choose no during the date input. Automatic changeover
depends on your country / area. Choose the appropriate setting for your country / area.

Connection

1 2
6 7 8
3 4 5
L
N
200W 200W 1600W 200W 1600W 900W
