- Page 1 TECTUS Transponder Technology GmbH, Eurotec-Ring 39, 47445 Moers 7 Germany RFID MultiPen for LF, HF and UHF passive Transponder in one device User Manual ™™ MultiPen User Manual V.1.2 ©TECTUS Page 1 / 10...

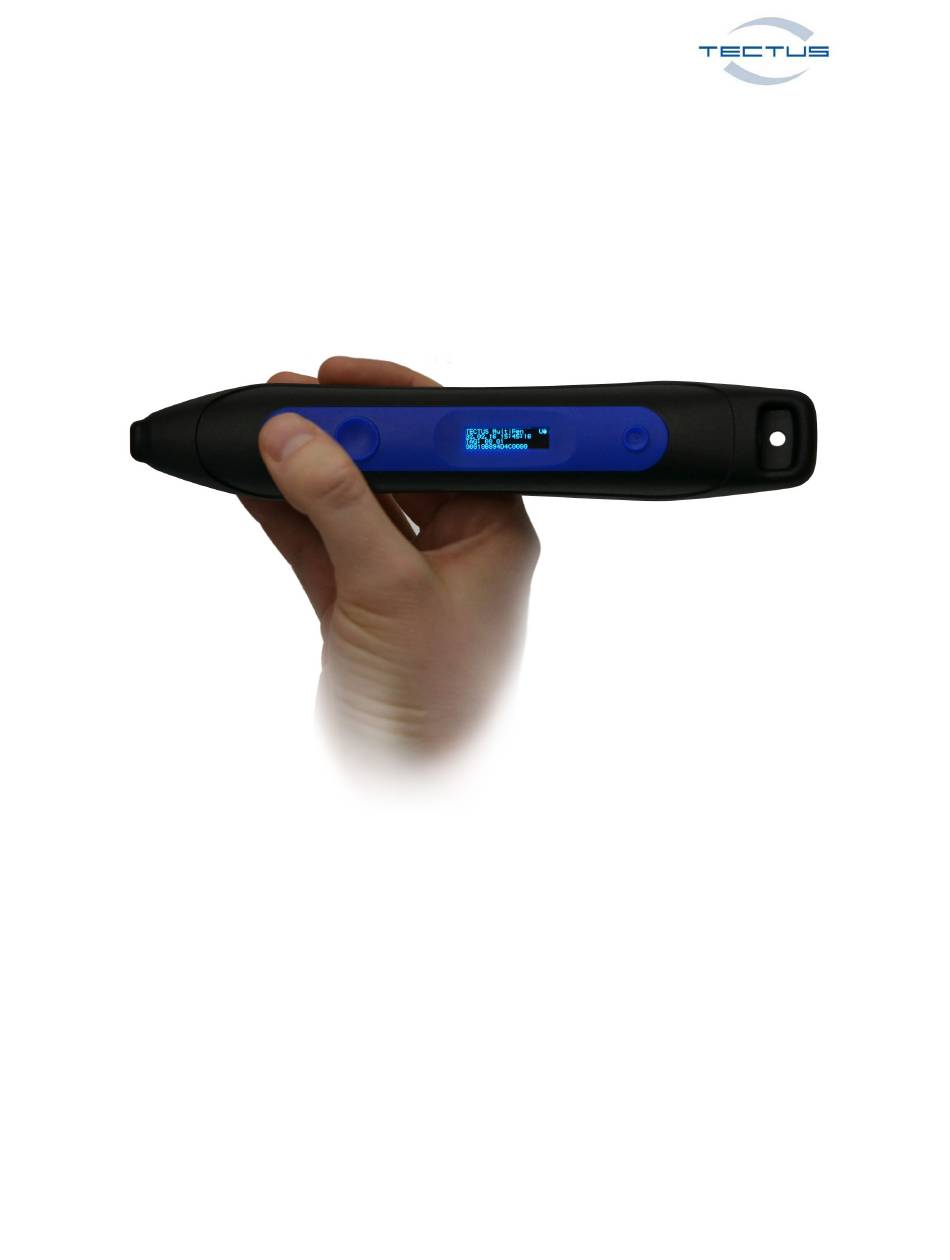

- Page 2 TECTUS Transponder Technology GmbH, Eurotec-Ring 39, 47445 Moers 7 Germany RFID MultiPen for all passive frequencies (LF, HF and UHF) in one device The new RFID handheld device MultiPen enables you the reading of UIDs of passive RFID transponders of Frequency ranges UHF (868…915MHz) , HF / NFC (13,56 MHz) and LF (125/134 kHz FDX-B/HDX).
-
Page 3: Fcc Compliance Statement
Changes or modification not expressly approved by TECTUS could void the user’s authority to operate the equipment described in the manual. This device contains Bluetooth™ module FCC ID: T9JRN41-3 MultiPen User Manual V.1.2... - Page 4 TECTUS Transponder Technology GmbH, Eurotec-Ring 39, 47445 Moers 7 Germany Button 1 Button 2 OLED Display Button 3 Button 1 Transponder Read Button 2 Bluetooth™ ON / Virtual keyboard ON/OFF by using IOS devices in HID mode Button 3 ON / OFF Universal Operating modes (BLUETOOTH™...
- Page 5 TECTUS Transponder Technology GmbH, Eurotec-Ring 39, 47445 Moers 7 Germany Transponder Reading (LF, HF or UHF) Turn on the MultiPen by using button 3. Move the tip of your MultiPen to the transponder (LF or HF) and push button 1 once or keep it pushed.
- Page 6 TECTUS Transponder Technology GmbH, Eurotec-Ring 39, 47445 Moers 7 Germany Use HID (Human Interface Device) Mode with USB cable connection Please turn on your MultiPen and connect the corresponding USB cable to the USB slot on the back. As soon as your PC/Laptop is connected to the USB cable, your MultiPen will send the UID to your focus point (cursor point) during the reading process.
- Page 7 TECTUS Transponder Technology GmbH, Eurotec-Ring 39, 47445 Moers 7 Germany Battery charging (NiMH Nickel-Metalhydrid) Please connect the USB cable to your MultiPen and an USB port on a PC/Laptop or power supply adaptor (not included in the delivery). The display will show the charging information as well as the current battery status for a few seconds.
-
Page 8: Technical Information
TECTUS Transponder Technology GmbH, Eurotec-Ring 39, 47445 Moers 7 Germany Technical information Housing: Plastic IP 64 Dimensions: 190 x 35 x 30 mm Weight: 125 g Power supply: USB 5 V DC Battery: NIHM 2200 mAh Power consumption: 1 mA (Automatic Power OFF) +RFID Max. - Page 9 Software for WINDOWS™ operating systems TECTUS TID MultiPen V.xx https://www.dropbox.com/home/Tectus%20Products/products%20industrial/multipen/WI NDOWS ™%20PC%20Programm/TIDMultiPen%201.5 APP for ANDROID™ operating systems TECTUS TID MultiPen V.xx https://www.dropbox.com/home/Tectus%20Products/products%20industrial/multipen/AN DROID ™/MultiPen/App or visit the Google Play Store™ and search for TECTUS MultiPen APP MultiPen User Manual V.1.2 ©TECTUS Page 9 / 10...
- Page 10 Copyright© Any reproduction of this manual in whole or in parts, the storage in electronic media and the translation into foreign languages without the written permission of TECTUS GmbH is forbidden. © 2018 TECTUS all ©rights reserved ANDROID™ and Google Play Store™ is a reg. Trademark of Google™ Corp.
