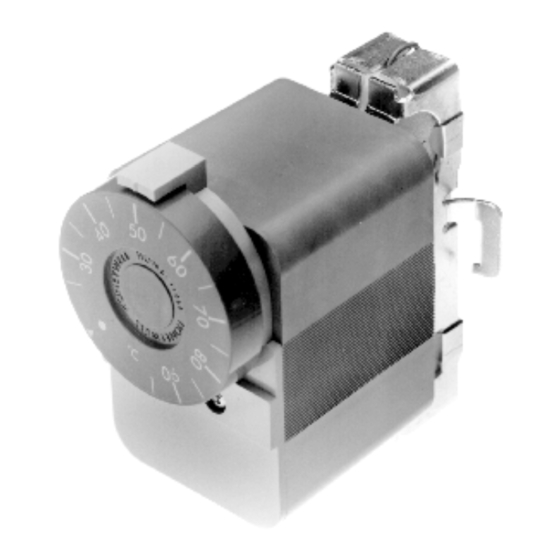

Honeywell L6190A Instruction Sheet

Aquastat control
Hide thumbs

Advertisement

Quick Links

APPLICATION
The L6190 aquastat thermostat is sensitive water temperature
thermostat designed for surface mounting on domestic hot
water cylinders or pipe work.
The L6190 is delivered complete with mounting strap that
makes installation rapid and easy, since draining the system or
tapping the cylinder or pipe work is not required.
The SPDT switching action is accomplished by a snap action
micro switch actuated by the liquid in the temperature sensing
element.
The L6190 aquastat thermostat confirms with the following
EC directives:
Low Voltage Directive 73/23/EEC
Electro Magnetic Compatability Directive 89/336/EEC
Compliance with the EMC directive regarding emission can
only be determined in the application.

SPECIFICATIONS

Model
L6190: surface mounted aquastat with SPDT switch
Suffix A: knob setting
Suffix B: external setting
Suffix C: internal setting and manual reset
Dimensions
See fig. 3., 4. and 5.
L6190A, B, C
AQUASTAT CONTROL
Ambient temperature
0 ... 70°C
Temperature range
25 ... 95°C
Switch differential
4, 8 or 12°C fixed
4 ... 10°C adjustable
Manual reset
Capillary length
0.55 m
Strap length
0.25 m or 2 m
Electrical connection
6.3 mm quick connect terminals suitable for
and adapters for screw connection.
Enclosure
IP40
Electrical rating
C-1:
10 A at 250 Vac, resistive load
2.5 A at 250 Vac, inductive load
15 A at 250 Vac, locked rotor
2 A at 24 Vac, inductive load
C-2:
4 A at 250 Vac, resistive load
1 A at 250 Vac, inductive load
Terminal data (see fig. 2. page 7.)
C-1 breaks on temperature rise
C-2 makes on temperature rise
Accessories
Mounting strap, fixing screw and clamp brackets
English................................................................................... 1
Deutsch ................................................................................. 2
Nederlands ............................................................................ 4
Français................................................................................. 5
Suomi..................................................................................... 6
1
INSTRUCTION SHEET
1
/
" receptacles
4
Contents
MU1R-9024 0502R5-NE

Advertisement

loading

  Related Manuals for Honeywell L6190A

  Summary of Contents for Honeywell L6190A

  • Page 1: Table Of Contents

    L6190A, B, C AQUASTAT CONTROL INSTRUCTION SHEET Ambient temperature 0 ... 70°C Temperature range 25 ... 95°C Switch differential 4, 8 or 12°C fixed 4 ... 10°C adjustable Manual reset Capillary length 0.55 m Strap length 0.25 m or 2 m Electrical connection 6.3 mm quick connect terminals suitable for...
  • Page 2: Deutsch

    Adjusting set point Where no special instruction is given, see fig. 6. page 8. L6190A: see fig. 7. page 8. (knob setting) L6190B: see fig. 8. page 8. (external setting) Wiring (see fig. 1. page 7) L6190C: see fig.
  • Page 3 C-2. werden. Zubehör Einstellung der Temperaturwert Temperaturregler mit Spannband, Spannschraube und L6190A: siehe Bild 7. Blatt 8.(Einstellung mittels Knopfes) Klemmbügel. L6190B: siehe Bild 8. Blatt 8.(Einstellung mittels Werkzeug) L6190C: siehe Bild 9. Blatt 8.(Innere Einstellung mittels EINBAU Werkzeug)
  • Page 4: Nederlands

    NEDERLANDS L6190A, B, C WATERTHERMOSTAAT TOEPASSING Behuizing IP40 De L6190 klemthermostaat is een nauwkeurig reagerende Contactbelasting watertemperatuur-regelaar voor montage tegen warmwater- leidingen, voorraadtanks etc. met behulp van een mee- C - 1 geleverde klemband en beugels. Tijdens de montage behoeft 10 A bij 250 Vac, ohmse belasting de installatie niet te worden afgetapt.
  • Page 5: Français

    Temperatuurinstelling uitschakeltemperatuur minus het schakeldifferentiaaal en ontgrendel de thermostaat door de herstelknop in te drukken. L6190A: zie fig. 7. bladzijde 8. (Knopinstelling) L6190B: zie fig. 8. bladzijde 8. (Schroevendraaierinstelling) Eindcontrole L6190C: zie fig. 9. bladzijde 8. (Interne schroevendraaier-...
  • Page 6: Suomi

    Ces aquastats ne nécessitent aucune lubrification. Réglage de la température Montage L6190A: voir fig. 7. page 8. (réglage avec un bouton) Il est impératif de suivre scrupuleusement les instructions du L6190B: voir fig. 8. page 8. (réglage avec un tournevis) fabricant en matière de vérification et d’entretien si de telles...
  • Page 7 Fig. 3. L6190A Sähkökytkentä L6190A: kts. kuva fig. 1. ja 7. Lämpötilan asettelu L6190A: kts. kuva fig. 7. ja 8. (säätöupilla) L6190B: kts. kuva fig. 8. ja 8. (säätönuppi) L6190C: kts. kuva fig. 9. ja 8. (työkalulla asetetava ja käsipalautus) Rajoituksen asettelu Rajoitustermostaatit voidaan varustaa käsi- tai...
  • Page 8 26.5 Fig. 7. L6190A Fig. 4. L6190B 26.5 Fig. 8. L6190B Fig. 5. L6190C L6190 75 mm 75 mm Fig. 9. L6190C Fig. 6. Home and Building Control Combustion Control Center Europe Honeywell BV Phileas Foggstraat 7 7821 AJ Emmen The Netherlands Tel.: +31 (-)591 695911...
