LCBS Connect Wall Module
PRODUCT DESCRIPTION
The LCBS Connect Wall Module is a Sylk bus
communicating device which is exclusively compatible
with the LCBS Connect controller. It contains integral
temperature and humidity sensors to control any given
space's comfort. This device enables local controller
configuration through an easy-to-use touch screen
interface with menu driven selections. The wall module
communicates and is powered by the Sylk bus, so no
additional wiring is necessary.
Dimensions
The TS120 consists of a back plate and a front cover which
contains a circuit board.
INSTALLATION INSTRUCTIONS
4-49/64
(121)

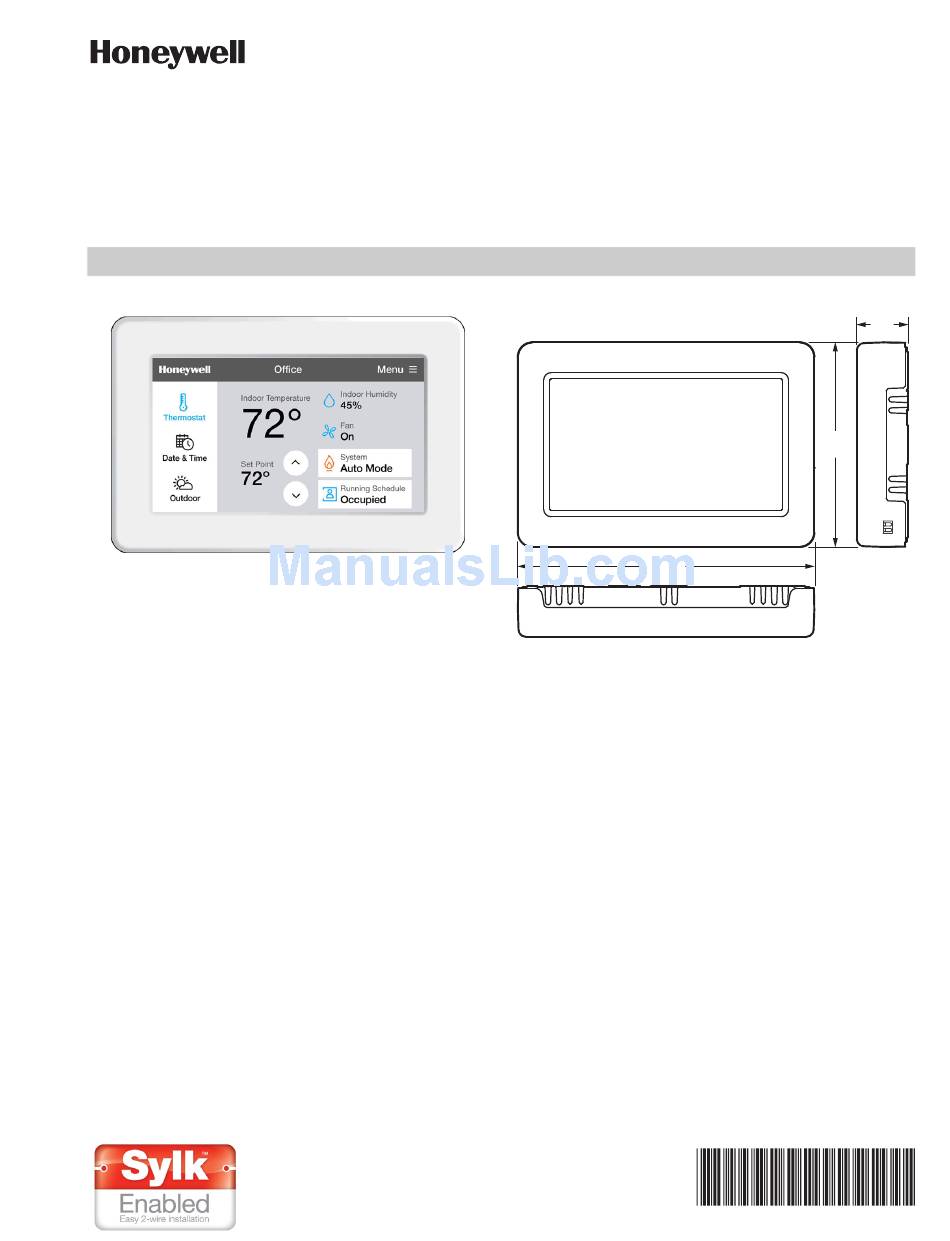

Fig. 1. Dimensions in in. (mm).
INSTALLATION
1. Read these instructions carefully. Failure to follow
them could damage the product or cause a hazard-
ous condition.
2. Check ratings given in instructions and on the prod-
uct to ensure the product is suitable for the applica-
tion.
3. Installer must be a trained, experienced service tech-
nician.
4. After installation is complete, check out product
operation as provided in these instructions.
MOUNTING
Mount the wall module on an inside wall approximately 48
in (1.2m) from the floor (or in the specified location) to
allow for exposure to the average zone temperature. Do
not mount the device on an outside wall, on a wall
containing water pipes or near air ducts. Avoid locations
that are exposed to discharge air from registers or
radiation from appliances, lights or the sun.
53/64
(21)
3-5/16
(84)
M36282
31-00084-01
