FPG Visair IN-VA10-A004 Product Manual

Open front food & drinks cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Open Front
Food & Drinks Cabinet
AS/NZS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Visair IN-VA10-A004 and is the answer not in the manual?

Questions and answers

Related Manuals for FPG Visair IN-VA10-A004

Summary of Contents for FPG Visair IN-VA10-A004

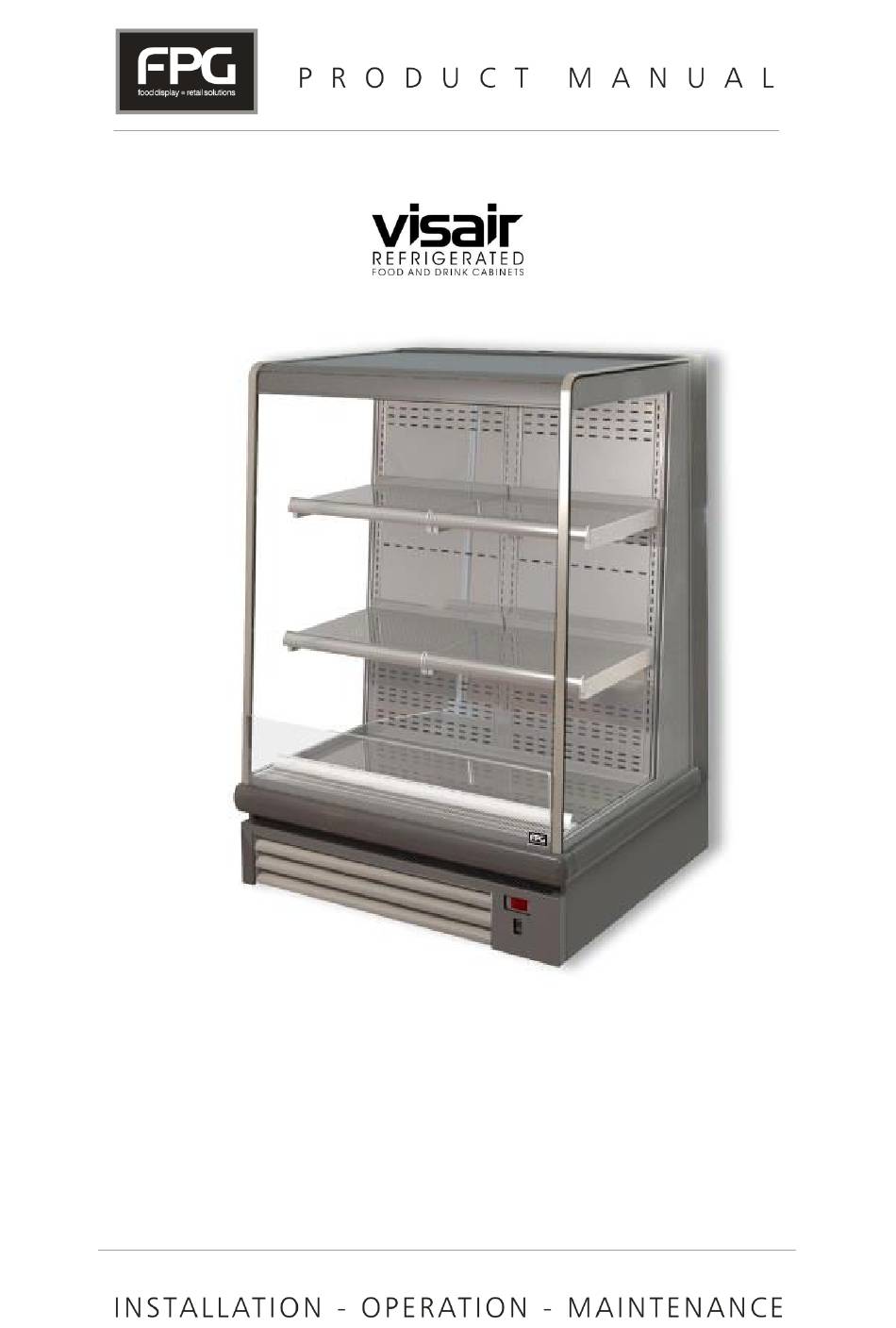

  • Page 1 Open Front Food & Drinks Cabinet AS/NZS...
  • Page 2 Copyright © November 2017 Future Products Group Limited. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Future Products Group Ltd.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ......................... 6 Welcome ................................6 Future Products Group (FPG) ........................6 Guidance and Help ............................. 6 Warranty ................................6 Warranty Period ............................6 Liability Exceptions ............................. 7 Specific Exclusions ............................. 7 Assessment ..............................7 Time Limit ..............................7 Caution ...............................
  • Page 4 Exterior ................................13 Louvers ..............................13 Painted and Metal Surfaces ........................13 Glass ................................ 13 Interior................................14 Side Glass ..............................14 Shelves ..............................14 Base Tray ..............................14 Back Plates ............................... 14 Cleaning the Base Cavity ......................... 15 Fan Deck and Drain Hole ......................... 15 Condensate Capacity Warning .........................
  • Page 5 Evaporator Fan Replacement ........................22 Evaporator Coil ............................22 Air Ducts and Grills ........................... 22 Temperature Regulator XR40CX ......................23 FPG Settings ............................27 Dixell Default Settings ..........................27 XR40CX Alarm Signals ..........................29 XR40CX Connections ..........................29 SPECIFICATIONS ......................30 Mechanical ..............................

  • Page 6: Introduction

    INTRODUCTION Welcome VISAIR CABINETS INTRODUCTION Future Welcome to the world of FPG! Our products are designed and engineered to Products give you the optimal performance that you deserve with innovative visual Group (FPG) merchandising appeal. We are confident that you will be delighted with your state of the art Inline Visair food service cabinet, and that it will become a valued appliance in your store.

  • Page 7: Liability Exceptions

     Fair wear and tear. Assessment The liability under this warranty is dependent on an assessment by FPG, to determine the defect in workmanship or materials. Time Limit FPG does not guarantee that any service to be performed under this warranty will be carried out within any particular time limit.

  • Page 8: Operation

    OPERATION Cabinet Layout VISAIR CABINETS OPERATION Visair Cabinet This is a fully self-contained, stand- Configuration alone, open front cabinet, with glass side panels and LED lighting. The cabinet is available with two shelf configurations. See Mechanical Drawings. It is fitted with a condensate disposal boil-off unit, in the base of the cabinet.

  • Page 9: Preparation

    Preparation VISAIR CABINETS OPERATION Shelf Location All shelves are adjustable in height and can easily be moved up or down, to and Ticketing match product size. The front edges of the shelves are profiled to carry ticketing/labels. Shelf To alter the shelf position, slide the brackets Adjustment upwards and disengage them from the support pillar.

  • Page 10: Shelf Load Restrictions

    Preparation cont. VISAIR CABINETS - OPERATION  Shelf Load Two-piece pull out shelves must not be loaded with more than 15kg of Restrictions evenly distributed products per shelf.  Full width fixed shelves must not be loaded with more than 35kg of evenly distributed products per shelf.

  • Page 11: Routines

    Routines VISAIR CABINETS OPERATION After Hours Ideally, cabinets should not be turned off after hours or at night. If the cabinet is turned off, transfer the products to a cool store. When the cabinet is turned on again, allow it to run for 30 minutes before returning the chilled products.

  • Page 12: Trouble Shooting

    TROUBLE SHOOTING FAULT POSSIBLE CAUSE REMEDY The mains isolating switch on Turn isolating switch circuit the wall, circuit breaker or fuses breaker or fuses on are off at the power board Cabinet does not The power switch on the cabinet Turn the power switch ON operate/start is OFF...

  • Page 13: Cleaning

    CLEANING Cautions VISAIR CABINETS CLEANING Power ALWAYS TURN THE POWER SUPPLY OFF BEFORE CLEANING. Water THIS UNIT IS NOT WATERPROOF. DO NOT USE A WATER JET SPRAY TO CLEAN THE INTERIOR OR EXTERIOR OF THIS CABINET. Exterior VISAIR CABINETS CLEANING Louvers Use a vacuum cleaner to remove dust and fluff from the ventilation louvers on the front and top of the cabinet.

  • Page 14: Interior

    Interior VISAIR CABINETS CLEANING Side Glass The inside surfaces of the side panels are most easily cleaned after the products and shelves have been removed. Shelves The shelves can be cleaned in place, or lifted off. The complete shelf module can be removed by lifting it vertically, to disengage the support brackets from the back panel.

  • Page 15: Cleaning The Base Cavity

    Interior cont. VISAIR CABINETS - CLEANING Cleaning the With the base tray pulled out, sweep out, Base Cavity or use a vacuum cleaner, to remove any debris from the base cavity. A Wet-and-Dry vacuum cleaner should be used, since there is likely to be some water in the bottom.

  • Page 16: Mandatory Cleaning Routines

    Mandatory Cleaning Routines VISAIR CABINETS CLEANING Warning It is mandatory to have the radiator fins cleaned periodically, by a refrigeration engineer. (see Servicing section). Failure to carry out routine cleaning/servicing schedules will void the warranty on the refrigeration equipment. To maintain optimum performance, cleaning must be regular and thorough. It is recommended that a schedule of cleaning operations should be drawn up.

  • Page 17: Installation

    INSTALLATION Regulations VISAIR CABINETS INSTALLATION Compliance It is very important that your food cabinet is installed correctly and is operating with Local properly before use. Installation must comply with local electrical, health & Requirements safety and hygiene requirements. Setting Up VISAIR CABINETS INSTALLATION Unpacking...

  • Page 18: Isolation

    Setting Up cont. VISAIR CABINETS - INSTALLATION Isolation If the cabinet is not connected to an outlet socket, but is hard wired to the mains supply, a means of isolation must be provided. If a plug and socket are used, they should still be accessible after the cabinet is installed.

  • Page 19: Servicing

    SERVICING Electrical Protection VISAIR CABINETS SERVICING Circuit Breaker The lighting and control circuits are protected by a circuit breaker, located on the control panel. The louvered panel must be removed to access the circuit breaker. If the breaker cannot be reset, call an electrician to check the circuits.

  • Page 20: Refrigeration Equipment

    Refrigeration Equipment VISAIR CABINETS SERVICING Caution DO NOT attempt to service the refrigeration equipment without isolating the cabinet from the mains supply. Refrigeration The compressor, Equipment condenser fan and condensate disposal system are mounted in the base of the cabinet, behind the condenser radiator.

  • Page 21: Acr Fault Finding Guide

    Refrigeration Equipment cont. VISAIR CABINETS - SERVICING ACR Fault First check if the condensate water level probe in the ACR tank is dirty and Finding Guide needs cleaning (a dirty probe may either fail to detect water, or give a false indication of water) clean if required.

  • Page 22: Control Gear

    Refrigeration Equipment cont. VISAIR CABINETS - SERVICING Control Gear The main ON-OFF switch, circuit breaker, refrigeration controller and associated compressor relay are all mounted on this chassis. Other control components are included in the compressor assembly. The manual re-set High Pressure switch and the low pressure switch are also on the compressor assembly.

  • Page 23: Temperature Regulator Xr40Cx

    Refrigeration Equipment cont. VISAIR CABINETS - SERVICING Temperature Model XR40CX is a microprocessor based Regulator controller. XR40CX It is provided with three NTC probes. The first one for temperature control (air off), the second one, located on the evaporator coil, to control the defrost termination, the third one, connected to the HOT KEY terminals indicates the cabinet temperature (air on).
  • Page 24 Refrigeration cont. VISAIR CABINETS - SERVICING XR40CX Key FUNCTION Functions To display target set point; in programming mode it selects a parameter or confirm an operation (DEF) To start a manual defrost (UP): To see the max. stored temperature; in programming mode it browses the parameter codes or increases the displayed value (DOWN): To see the min stored temperature;...
  • Page 25 Refrigeration cont. VISAIR CABINETS - SERVICING XR40CX Press and release the key. Min & Max Lo will be displayed followed by the minimum temperature recorded. Recorded Press the key again or wait 5s to restore the normal display. Temperature Press and release the key.
  • Page 26 Refrigeration cont. VISAIR CABINETS - SERVICING XR40CX The The hidden menu includes all the parameters of the instrument. Hidden Menu TO ENTER THE HIDDEN MENU  Enter the Programming mode by pressing the keys for 3s, (the °C or °F LED starts blinking). ...

  • Page 27: Fpg Settings

    Refrigeration cont. VISAIR CABINETS - SERVICING FPG Settings Note that the following settings are Dixell factory defaults. Refer to the Specification section for the correct FPG settings for your cabinet. Label Name Range Default Setting Dixell Default Settings Set point LS÷...
  • Page 28 Refrigeration cont. VISAIR CABINETS - SERVICING Dixell Default Label Name Range Default Setting Settings cont. Differential for temperature alarm recovery (0,1 °C÷25,5°C) (1 °F÷45°F) Temperature alarm delay 0 ÷ 255 min Delay of temperature alarm at start up 0 ÷ 23h e 50’ Probe for temperature alarm of condenser nP;...

  • Page 29: Xr40Cx Alarm Signals

    Refrigeration cont. VISAIR CABINETS - SERVICING XR40CX Message Cause Outputs Alarm Signals Room probe failure Compressor output acc. to par. Con and COF Evaporator probe failure Defrost end is timed Third probe failure Outputs unchanged Fourth probe failure Outputs unchanged Maximum temperature alarm Outputs unchanged.

  • Page 30: Specifications

    SPECIFICATIONS Mechanical VISAIR CABINETS SPECIFICATIONS CABINET MODEL IN-VA10- IN-VA10- A004 A005 Height mm 1480 1480 Front leg adjustment mm Width mm 1096 1096 Depth mm Dry Weight kg Cabinet Well Material Stainless steel Stainless steel Number of Shelf Modules 0.73 (shelves) 0.99 (shelves) Display Area m + 0.36 (base)

  • Page 31: Cabinet Performance

    If the supply cord is damaged, it must be replaced by a special cord or Replacement assembly available from the manufacturer or its service agent, FPG part number 13237. The mains lead must ONLY be replaced by a qualified service person.

  • Page 32: Compliance

    Young children should be supervised, to ensure that they do not play with the appliance. Improvements VISAIR CABINETS SPECIFICATIONS Ongoing FPG reserves the right to change specifications and construction, as part of Development ongoing product improvement. Part No. 25553 Rev. J November 2017 - 32 - Visair Refrigerated Cabinets...

  • Page 33: Electrical Circuit Diagrams

    ELECTRICAL CIRCUIT DIAGRAMS Model: IN – VA10-A004/5 Visair Refrigerated Cabinets IN – VA10 - 33 - © Future Products Group...

  • Page 34: Spare Parts

    Number the label fixed to the control panel. This serial number will enable FPG to trace details of the build specification of your particular cabinet, and hence ensure that spare parts are fully compatible. To satisfy warranty conditions, and ensure optimum performance, use only FPG supplied spare parts.

  • Page 35: Mechanical Drawings

    MECHANICAL DRAWINGS Inline Visair IN – VA10-A004 IN – VA10 - 35 - © Future Products Group...

  • Page 36: Inline Visair In - Va10-A005

    Inline Visair IN – VA10-A005 Part No. 25553 Rev. J November 2017 - 36 - Visair Refrigerated Cabinets...
  • Page 37 IN – VA10 - 37 - © Future Products Group...
  • Page 38 Part No. 25553 Rev. J November 2017 - 38 - Visair Refrigerated Cabinets...
  • Page 39 IN – VA10 - 39 - © Future Products Group...
  • Page 40 Part No. 25553 Rev. J November 2017...
