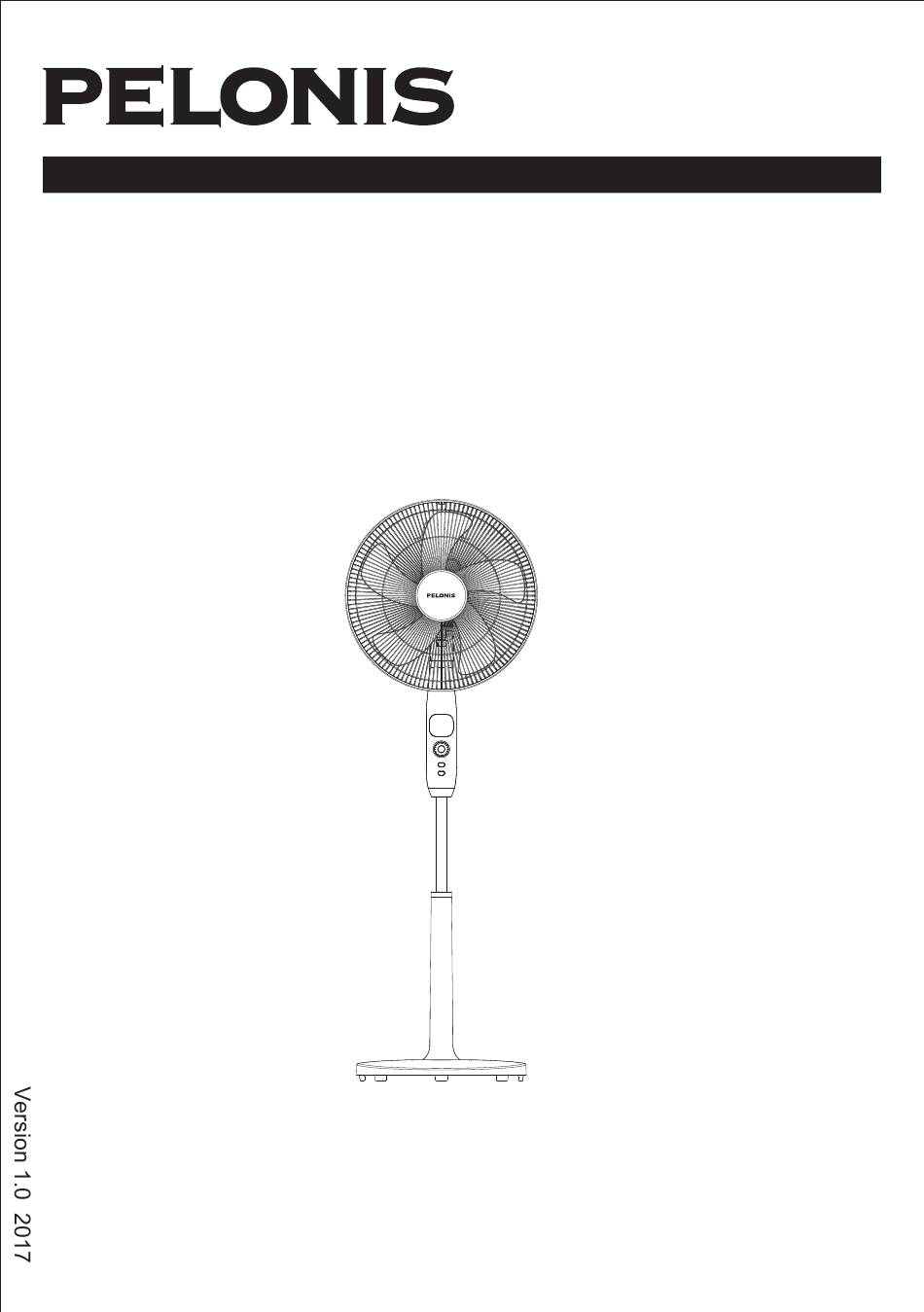

- Page 1 OWNER’S MANUAL Electric Fan FS40-16CR READ AND SAVE THESE INSTRUCTIONS Attention: Pictures in the IM are for reference only.
- Page 2 IMPORTANT SATETY INSTRUCTIONS CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING 1.Do not leave the fan running unattended. 2.Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision. 3.This appliance has a polarized plug (one blade is wider than the other).
-
Page 3: Rules For Safe Operation
RULES FOR SAFE OPERATION 1. Never insert fingers, pencils, or any other object through the grill when fan is running. 2. Disconnect the fan when moving from one location to another. 3. Be sure the fan is on a stable surface when operating to avoid overturning. -
Page 4: Front Grill
Front grill Lock nut of blade 6. Tighten the Blade: Screw the lock nut of blade anticlockwise Blade 5. Install the Blade: Put the fan blade through the motor shaft. After installment, gently rotate the blade to check whether it works normally. Lock nut of grill 4. -
Page 5: Drive Plate
INSTRUCTIONS FOR USE Instructions for key of remote controller ON/OFF DRIVE PLATE MODE PRO/Timer Battery installation Rear cover PUSH OPEN Considerate Hint: 1. Install the battery with the positive side facing up. 2. Effective Range of Remote Control: within 5 meters distance and 30-degree deflection in front of Product. -
Page 6: Mode Key
Remote Control: Drive Plate Rotate it to adjust the speed/time setting (Clockwise for increase, Anticlockwise for decrease) ON/OFF Key Press it once, the fan will turn on at normal mode. Press it again to shut off. (The fan starts at speed 01. Rotate the Drive Plate clockwise for higher speed. The wind speed ranges from 01 to 12 with an increment of 1) OSC Key After the fan starts, press this key once to start oscillation. -
Page 7: Height Adjustment
INSTRUCTIONS FOR USE Instructions for operation of body Height Adjustment Screw the knot clockwise and loosen it for adjusting the height Height Adjustment Body key Knot Drive Plate: Rotate it to adjust the speed/time setting Mode Button: Repeatedly press the mode button in the middle, and select modes in the cycle of “Normal-Sleep-Natural-Silent-Normal”. -
Page 8: User Servicing Instructions
USER SERVICING INSTRUCTIONS a) Grasp the plug and remove it from the receptacle or other outlet device. Do not unplug it by pulling on cord. b) Open the fuse cover. Slide to open the fuse access cover on top of the attachment plug towards blades. c) Remove the fuse carefully.
