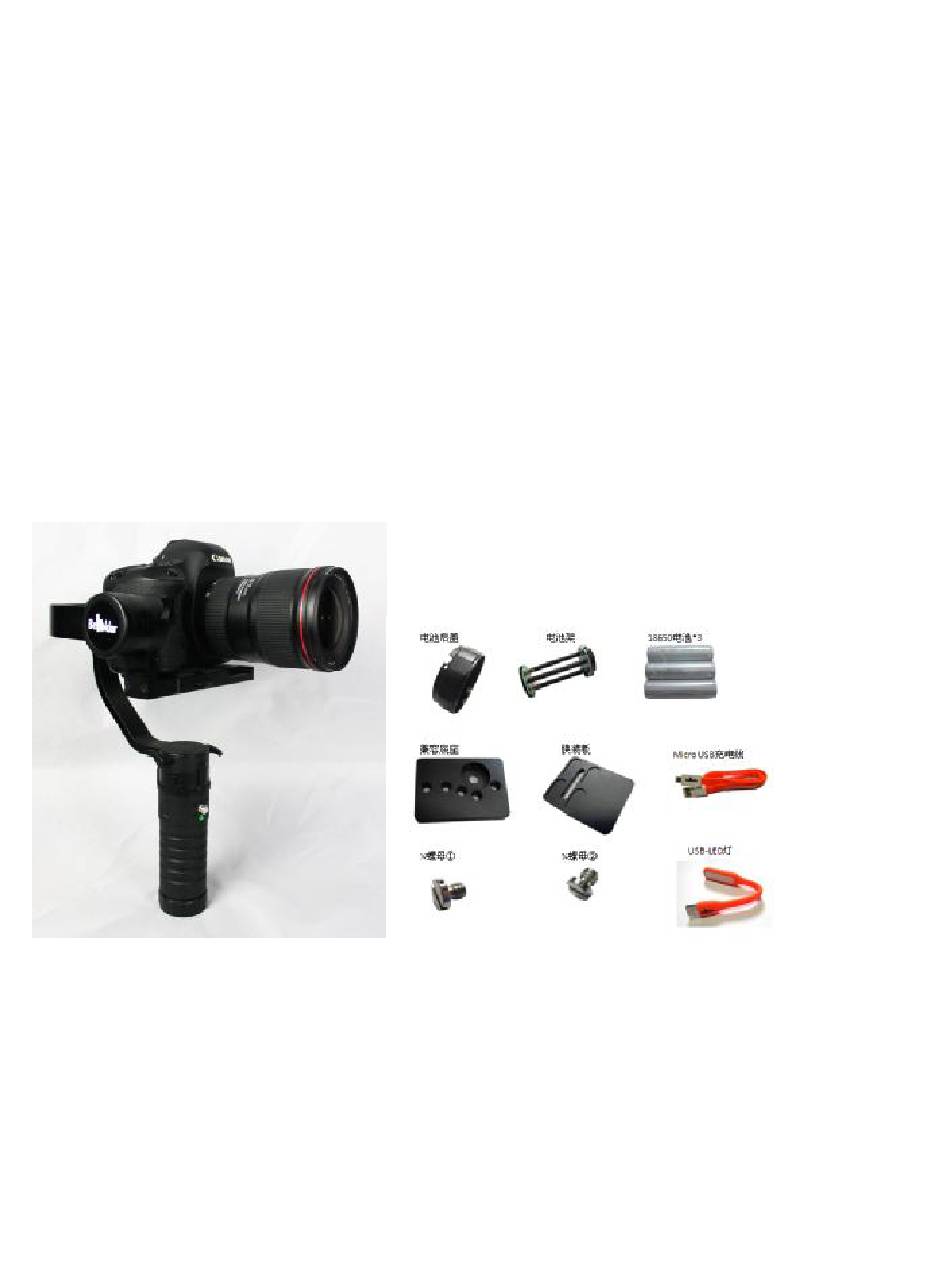

Beholder DS1 specification (32 bit system):
Height :300mm
Width:175mm
Depth :160mm
Net Weight（no camera）: 1090g
packed weight：1790g
Box packing size:375mmx200mmx100mm
Max load weight：camera with lens 1700g
supported camera：
canon 5D/6D/7D+16-35,24-105etc lens.
sony A7S series +24-70*12-35、A7R2、
pansonic
Max angle range：90-180°
Products:
battery installing :
1.
A. how to charge battery:
a. following pic 1、pic2, let Micro USBcharing cable insert into battery holder USBport，connect
TRD New Beholder DS1 Manual
GH4+12-35 etc
Direction shaft：355°
Pitch：355°， +-180° range
Rolling：355°， +-60° range
Power： 3.7v 2600mah *3
working time
：3-4 hours（up to camera weight etc）
P/N：DS1
Page 1
