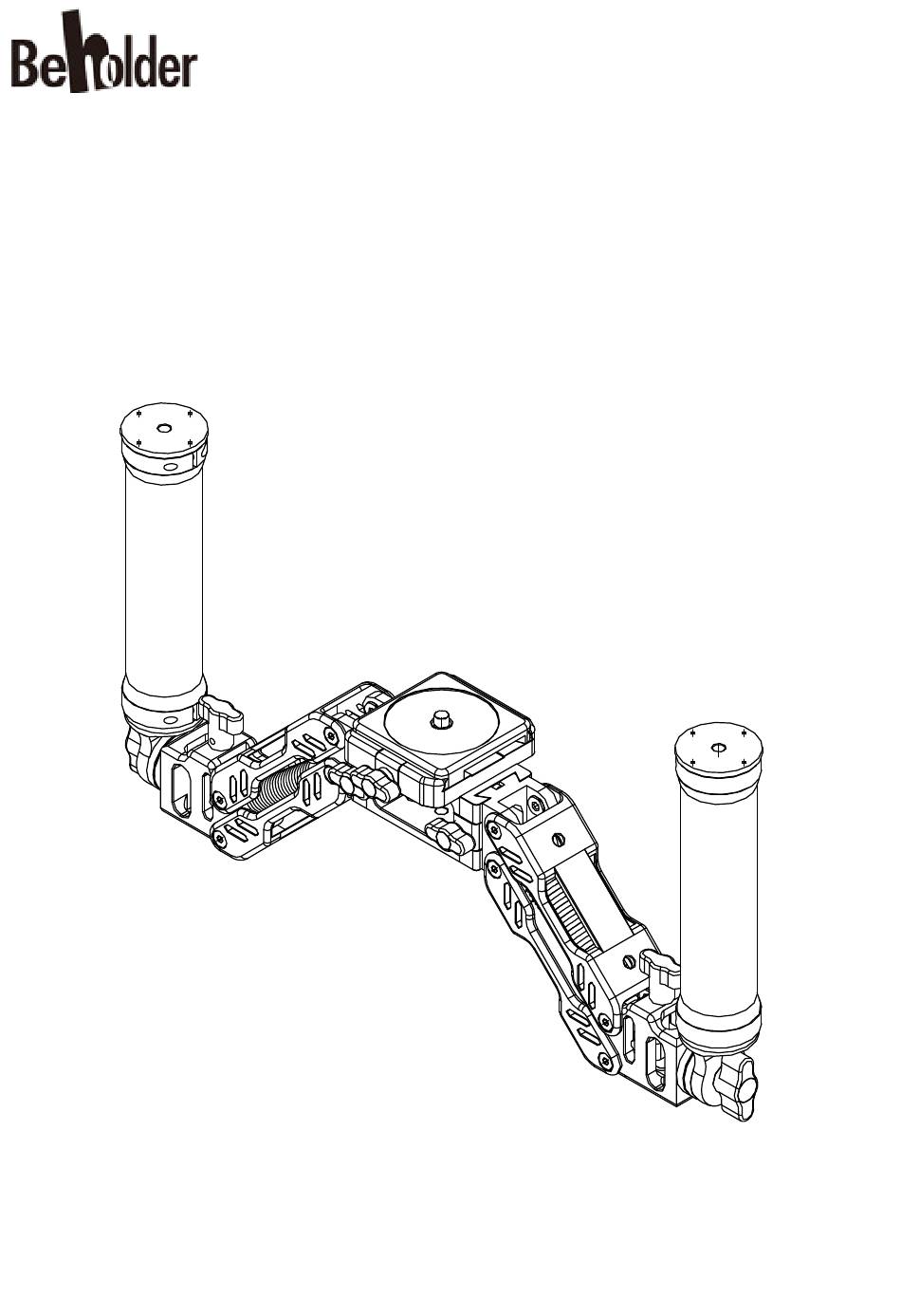

- Page 1 Beholder FHS Flex Handle Stabilizer V1.0 2017.07 Before using the product, please read manual carefully. Be sure to keep this manual in a safe place so that you can check it at anytime in the future.
-
Page 2: Table Of Contents
Operating Instructions Copyright Product Description Welcome to the Ikan Beholder Flex Handle Stabilizer. The Flex Handle Stabilizer is designed to be used along with Ikan Beholder 3-Axis handheld gimbals to provide videographers and photographers additional stability when shooting. The stabilizer has a quick release plate making it easy for users to switch between the two handed and single handed operation. -
Page 3: What's Included
After you've received the product and before you use it, please make sure the package contains all the items in the following inventory. If any item is missing, please get in touch with the dealer to resolve the situation. 2017 Beholder... -
Page 4: Stabilization Control
The Flex Handle Stabilizer helps reduce camera vibrations cased by walking or running. You'll notice more stabilization as the bouncing movement increases. Below is a chart of the testing data of the Beholder EC1 and the Flex Handle Stabilizer. Action... -
Page 5: Operating Instructions
Operating Instructions Loosen the locking screws on the bridge to slide the flex handles into the bridge. After the flex handles are in place, tighten the locking screws. Locking Screws 2017 Beholder... - Page 6 2. Install the quick release mounting plate with the included screws and hex key. The included 3/8" screw is used to attach the gimbal to the quick release plate. Quick Release Plate Mounting Screws 2017 Beholder...
- Page 7 Flex Handle Stabilizer the handles fall to roughly 15 degrees. Make sure the two tension screws are leveled with each other. Please see image below for reference. Tension Adjustment Screws 2017 Beholder...
- Page 8 Handle Angle Adjustment Screw If you will be using the stabilizer in inverted mode, be sure to use the inverted safety lock to prevent accidental drops. Default Safety Lock Screw Location Inverted Safety Lock Screw Thread 2017 Beholder...
-
Page 9: Copyright
Copyright Beholder and Ikan are certified trademarks, which cannot be used without our permission for any other purposes. The product has a number of patents so if copies of the product are found, the perpetrator will hold the relevant legal responsibility.
