WARNING: Important! Read and understand these instructions before using the Manual
Resuscitator. Do not use this product unless you have been instructed in its
use by a qualified healthcare professional. If the Manual Resuscitator is not
properly assembled, personal injury and/or damage to the Manual Resuscita-
tor could result.
WARNING: Test the product functions before using this product on a patient.
WARNING: Important: This resuscitator is intended for use on an adult with a minimum
body weight of 66 lb. (30 kg).
WARNING: This resuscitator is intended for single patient use.
WARNING: Do not use this product in a toxic atmosphere, or in the presence of sparks,
flame, or smoking materials. Do not allow smoking. Fire and/or personal in-
jury could result.
WARNING: If components are damaged or missing, contact your dealer immediately. DO
NOT use substitute parts.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury
caused by improper installation or use of this product.
Caution: For best performance of this product, use within three years from the date of
s
manufacture.
WARNING: Do not remove the pop-off valve.
1. Use your hands to pull the resuscita-
tor out from both sides.
2. Assemble the patient valve, reservoir
bag and resuscitator. Ensure that all
connections are secure.
3. Connect the mask to the patient
valve.
4. Optional: Connect the oxygen tube to
a regulated oxygen source.
5. Adjust the oxygen flow so that the res-
ervoir bag expands completely during
inspiration, and nearly collapses as
the squeeze bulb refills during exhalation.
6. Before connecting the manual resuscitator to a patient, check the function of both resuscitator
and mask; ensure that all connections are secure and that the intake valve, reservoir bag and
patient valve allow all phases of the ventilation without any leakage.
GF91102A-INS-LAB-RevA07

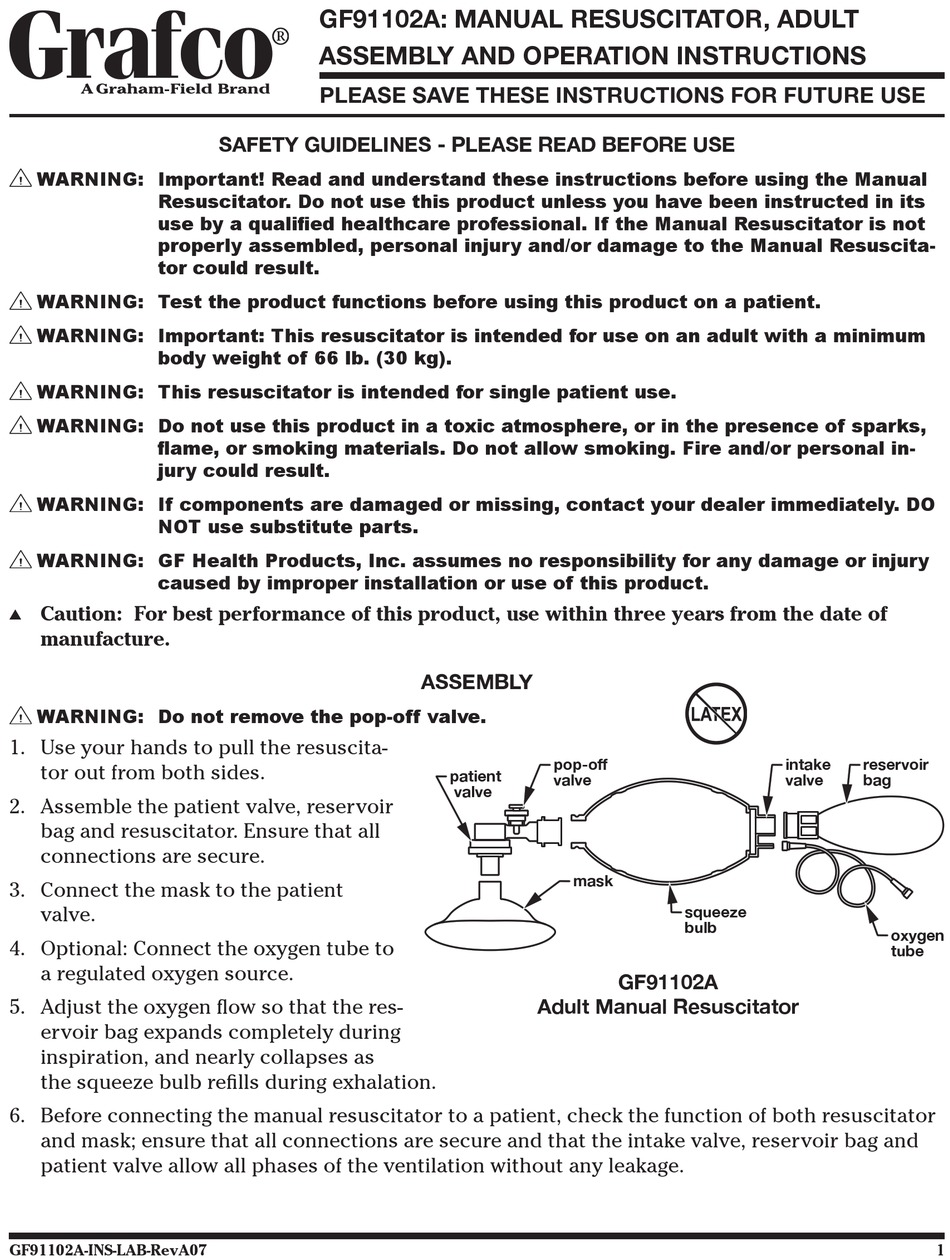

GF91102A: MAnuAl ResuscitAtoR, Adult
AsseMbly And opeRAtion instRuctions
pleAse sAVe tHese instRuctions FoR FutuRe use
sAFety Guidelines - pleAse ReAd beFoRe use
AsseMbly
pop-off
patient
valve
valve
mask
Adult Manual Resuscitator
intake
valve
squeeze
bulb
GF91102A
reservoir
bag
oxygen
tube
1
Advertisement
Table of Contents
Related Manuals for GF Health Products Grafco GF91102A
Summary of Contents for GF Health Products Grafco GF91102A
- Page 1 Do not allow smoking. Fire and/or personal in- jury could result. WARNING: If components are damaged or missing, contact your dealer immediately. DO NOT use substitute parts. WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by improper installation or use of this product. Caution: For best performance of this product, use within three years from the date of manufacture.
-
Page 2: Specifications
<3 cmH 0 @ 50 LPM Expiratory resistance <3 cmH 0 @ 50 LPM WARRAnty GF Health Products, Inc. warrants the GF91102A Grafco Adult Manual Resuscitator for a period of twelve months for defects in workmanship and materials. During the warranty period, defective items will be repaired or replaced at GF Health Products, Inc.'s option at no charge. © 2007 GF Health Products, Inc. • 2935 Northeast Parkway • Atlanta, GA 30360 • tel 800-347-5678 • fax 800-721-0601 • www.grahamfield.com GF91102A-INS-LAB-RevA07...
