Summary of Contents for HOPEFULL B768y

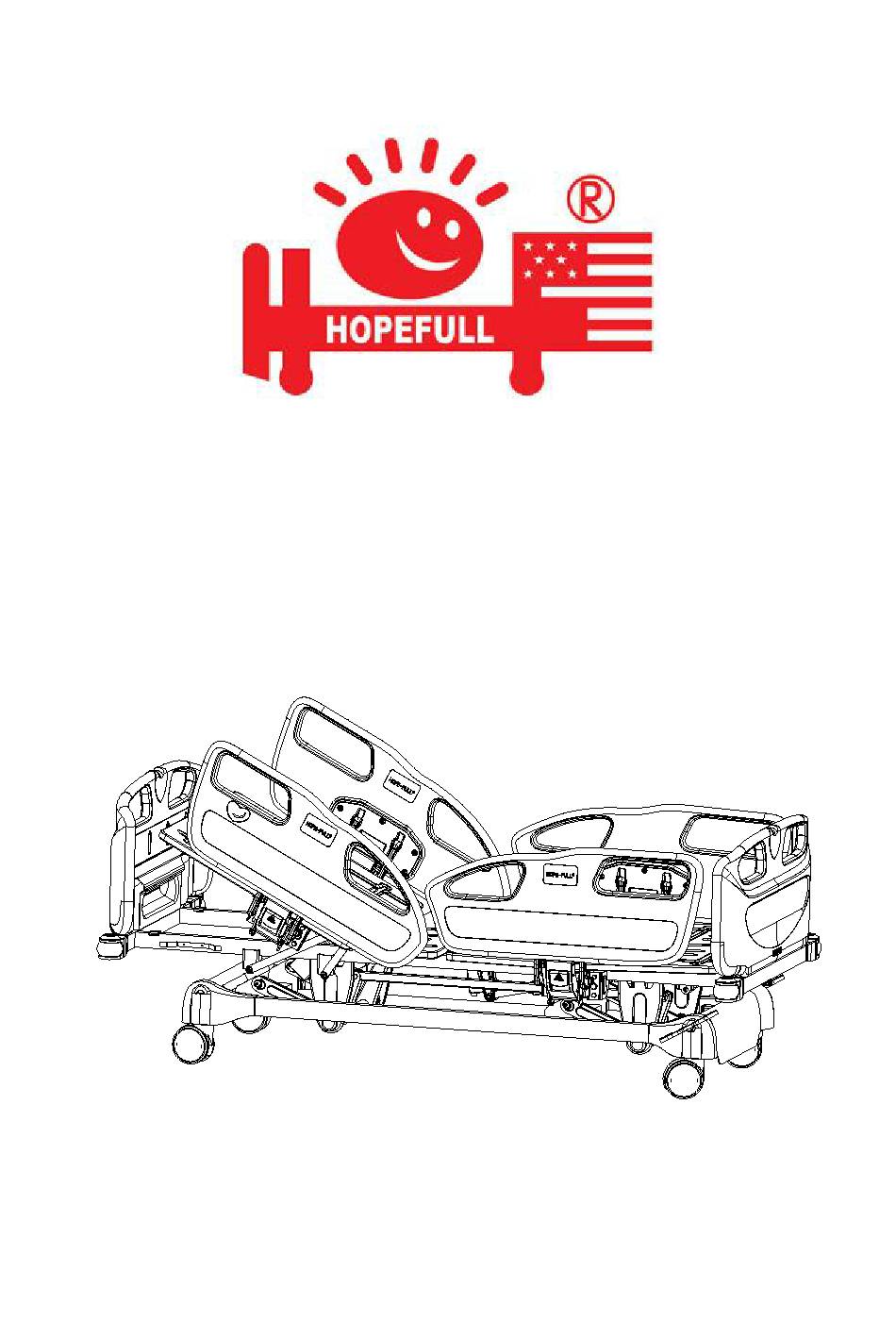

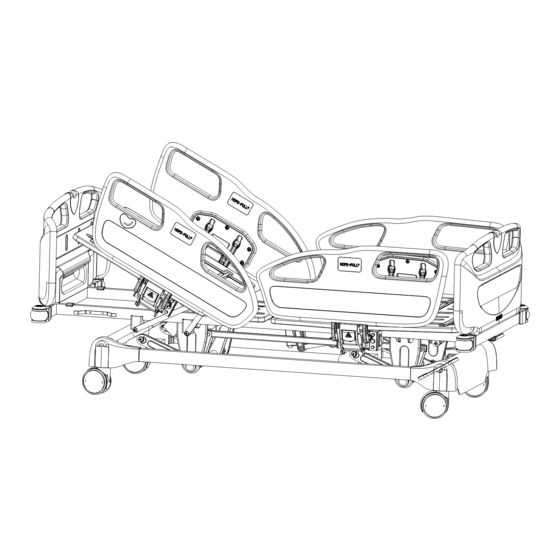

- Page 1 HOPEFULL ® electric bed Instruction Manual （Applicable model：B768y） Version No.：1.0...
-
Page 2: Table Of Contents
HOPEFULL ® electric bed Instruction for use Contents 1. Usage and safe notice.....................2 1.1 Usage........................2 1.2 Safe notice.......................2 1.3 Specification of the product.................. 5 2. Functions introduction and Operation manual............. 6 Components name....................6 Bed placement....................... 6 Functions introduction...................6 Main functions operation.................. -
Page 3: Usage And Safe Notice
Instruction for use Instruction summarize The instruction is applicable to B768y Electric bed. It’s including the information such as usage & safe notice, function instruction, care & maintenance, and so on. The inside pictures only for reference. When operation, please take the real product for standard. - Page 4 HOPEFULL ® electric bed Instruction for use 2). In order to avoid the patient falling from the bed, please use both bedside rails. Don’t put your head, hands and legs out of the bed, or else you may fall out from the bed and get hurt.
- Page 5 HOPEFULL ® electric bed Instruction for use Please make sure to install and lock well the head and foot panels. If the panels are not locked well before moving the bed, the patient may fall from the bed to get hurt because of the panels loose.
-
Page 6: Specification Of The Product
HOPEFULL ® electric bed Instruction for use 1.3 Specification of the product Serial Item Parameter Remarks including length 2000±20mm the bed frame width 900±10 mm Mattress support The lowest height from the platform 430±10 mm floor The highest height from the 760±10 mm... -
Page 7: Functions Introduction And Operation Manual
HOPEFULL electric bed Instruction for use ® 2. Functions introduction and Operation manual Components name Bed board Bedside rail Head panel Foot panel Castor Central brake 2.2 Bed placement Please put the bed in the environment: temperature between 5 ～ 40℃ 、 relative humidity ≤80%. -
Page 8: Main Functions Operation
HOPEFULL ® electric bed Instruction for use 1. Back section up and down adjustment 2. Knee section up and down adjustment 3. Hi-Low adjustment 2.4 Main functions operation Notices: Please stop to operate the bed when the bed is adjusted to the final distance/angle including the height or angle adjustment. -
Page 9: Bedside Rails (Guardrail) Operation
HOPEFULL ® electric bed Instruction for use 3. Back&Knee section up and down adjustment Press the Back&knee section up and down buttons, the Back and leg bed board can go up and down. Loose the buttons, the Back and leg bed board will stop movement . -
Page 10: Install And Dismantle The Head / Foot Panels
HOPEFULL ® electric bed Instruction for use 2. Put down the bedside rails： Use one hand to hold the bedside rail’s holes and the other hand to open the switch, when hearing a sound of “ka” ， then put down the bedside rails slowly (Re. the picture as below) 2.6 Install and dismantle the head / foot panels... -
Page 11: Drip Stand Usage
HOPEFULL ® electric bed Instruction for use 2. Dismantle the head /foot panels Release the lock then straightly lift up the panel . (Re. the picture as below) 2.7 IV drip stand usage 1. Safety working load for IV drip stand is 5 kilogram 2. -
Page 12: Bed Movement
HOPEFULL ® electric bed Instruction for use 2.8 Bed movement: When there is patient on the bed, please lift up the bedside rails before moving the bed. 1. Before moving the bed, please step on the green sign till hear “ka” sound to open... -
Page 13: Control Box Connection Methods
HOPEFULL ® electric bed Instruction for use 2. Step on the red sign until hear “ka” that means locked. (Re. the picture as below) Control box connection methods Wire connection methods: （1） Power supply (Electric source) （2） H1 controller socket （3）... -
Page 14: Cleaning And Disinfection Of Beds
HOPEFULL ® electric bed Instruction for use 2. When do the inspection, you should add some lubricating oil on the bed moving parts, if find the parts are abraded seriously, please change a new one. 3. Avoid to hit the bed or use the sharp tools scratch the surface. -
Page 15: Malfunction And Elimination Methods
2.13 After-sales service contact information Manufacturer: Hopefull Medical Equipment Co., Ltd. Address: The Yangtze Industrial Park, Economic Development Area,Xian'ning City 437100 ,Hubei Province, China. Tel: +86(715) 8898610 Fax: +86(715) 8898613 E-mail: sales01@hope-full.com...
