HOPEFULL F968y-ch Instruction Manual

Electric bed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
HOPEFULL
electric bed
Instruction Manual
（Applicable model：F968y-ch）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F968y-ch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HOPEFULL F968y-ch

Summary of Contents for HOPEFULL F968y-ch

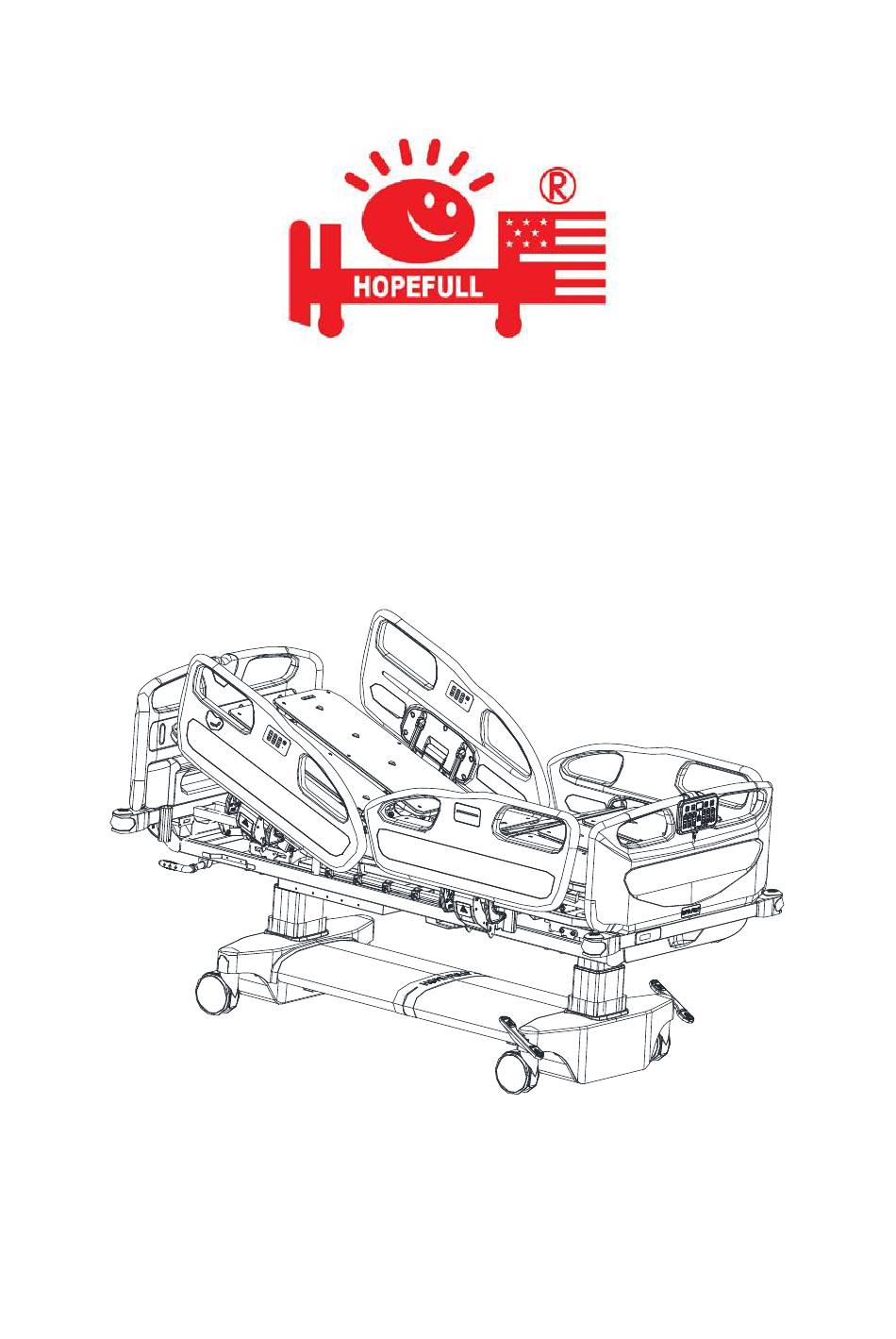

  • Page 1 ® HOPEFULL electric bed Instruction Manual （Applicable model：F968y-ch）...

  • Page 2: Table Of Contents

    ® HOPEFULL electric bed Instruction Manual Contents Instruction summarize ......................2 1. Usage and safe notice ....................2 Usage ..........................2 Safe notice ........................2 2. Functions introduction and Operation manual ............. 5 Components name ......................5 Bed placement ......................6 Functions introduction ....................

  • Page 3: Instruction Summarize

    Instruction Manual Instruction summarize The instruction is applicable to F968y-ch Electric bed. It’s including the information such as usage & safe notice, function instruction, care & maintenance, and so on. The inside pictures are only for reference. When operation, please take the real product for standard.
  • Page 4 ® HOPEFULL electric bed Instruction Manual electric wire. ◼ The products may be disturbed by other wireless electronic equipment, in this case , users may use the method to avoid the interruption. 2). In order to avoid the patient falling from the bed, please use both bedside rails.
  • Page 5 ® HOPEFULL electric bed Instruction Manual because of the bed movement. 6). When move the beds: ◼ Please make sure to install and lock well the head and foot panels. If the panels are not locked well before moving the bed, the patient may fall from the bed to get hurt because of the panels loose.

  • Page 6: Functions Introduction And Operation Manual

    ® HOPEFULL electric bed Instruction Manual 11). Please lay the patient in the correct sections as the bed. If head and foot sections are reversed, the back and knee will have wrong posture when adjust the bed and the patient will get hurt.

  • Page 7: Bed Placement

    ⚫ Flabby floor. ⚫ Unbalance floor. 2.3 Functions introduction The electric bed F968y-ch is designed base on the safe and convenient use, the bed can be operated and adjusted different positions by the controls. The main functions including: 1. Back section up and down adjustment 2.

  • Page 8: Main Functions Operation

    ® HOPEFULL electric bed Instruction Manual 2.4 Main functions operation Notices: ⚫ Please stop to operate the bed when the bed is adjusted to the final distance/angle including the height or angle adjustment. ⚫ Don’t let other people sit on the bed board when adjust the bed, in order to avoid breaking the bed board because of the imbalanced force.
  • Page 9 ® HOPEFULL electric bed Instruction Manual The function instruction of the keys as follow: 1. Key 1: Cardiac chair operation There is a “Cardiac chair” sign on the nurse control, press the button continuously, the back section will go up and the leg section will get down to form into a chair figure.
  • Page 10 ® HOPEFULL electric bed Instruction Manual into flat board and the bed will go to the lowest position. When loose the “CPR” button, the operation will be stopped. 5. Key5 & 6: Back section up and down adjustment Press the button “Back section up” on the handset, the back bed board up;...
  • Page 11 ® HOPEFULL electric bed Instruction Manual Notices:Before operation, make sure there’s nothing under the bed. 10. Key 14 & 15: Trendelenburg and reverse trendelenburg adjustment A. Key 9: Press the reverse trendelenburg button(head tilt up), the head goes up and the leg goes down, release the button, the whole bed will stop movement.
  • Page 12 ® HOPEFULL electric bed Instruction Manual 11. Key 16: Left bed board turn-over Press the button “left bed board turn-over”,the left bed board will move down;release the button the movement will stop;when the left bed board move to the lowest position,press this button again,the bed board won’t go down any more.

  • Page 13: Manual Cpr Operation

    ® HOPEFULL electric bed Instruction Manual 2. Built-in bedside rails controls (for patient use normally): 1. Back section up 2.Back section down 3.Whole bed up 4.Whole bed down 5.Knee section up 6.Knee section down 7. Under bed light 8.Indicator light 2.5 Manual CPR operation...

  • Page 14: Scale Function

    ® HOPEFULL electric bed Instruction Manual 2.6 Scale function Don’t sit the bed corner to weight, or else the weight date will be wrong, and there’s risk to damage the bed scale facilities too. If patient sleep on bed or put some load on bed and press the zero button, when the weight function disappear, the date maybe show the negative number, you need to press the zero button again.
  • Page 15 ® HOPEFULL electric bed Instruction Manual patient comes back to the bed to start the scale. 4. When weight, the patient should sleep on the middle of the bed and the weight data is correct, as below photo. Make sure the patient in the middle 5.

  • Page 16: Bedside Rails (Guardrail) Operation

    ® HOPEFULL electric bed Instruction Manual 2.7 Bedside rails (Guardrail) operation When patient lies on the bed, please keep the bedside rails risen in order to avoid the patient falling from the bed to cause the accident. When operating, please pay attention whether there is barrier in the gaps between the bedside rails and bed frame, If yes, please eliminate.

  • Page 17: Install And Dismantle The Head / Foot Panels

    ® HOPEFULL electric bed Instruction Manual 2.8 Install and dismantle the head / foot panels 1. Installation of plungers Insert the plungers into the holes of the head and foot bars,and fasten them with screws and flat washers.Fix the four plungers of head & foot panel with 17 # wrench and screwdriver one by one.
  • Page 18 ® HOPEFULL electric bed Instruction Manual Lock of head & foot panel Turn the lock 90°anticlockwise Locked 3. Dismantle the head /foot panels Turn the lock to the unlock state firstly,then straightly lift up the panels with two hands.(Re. the picture as below) Turn the lock 90°clockwise...

  • Page 19: Castor Operation

    ® HOPEFULL electric bed Instruction Manual 2.9 Castor operation When there is patient on the bed, please lift up the bedside rails before moving the bed. Before moving the bed,please pull out the power cord and circle it on the hook under the bedside rail.

  • Page 20: Control Box Connection Methods & Mjb Instruction

    ® HOPEFULL electric bed Instruction Manual 2.10 Control box connection methods & MJB instruction 1. Wire connection methods: 1). Power supply (Electric source) 2). Motor socket for back section 3). Column motor socket for back section 4). Backup battery socket 5).
  • Page 21 ® HOPEFULL electric bed Instruction Manual 2.2 Slide the control box on the other side of the slide bar of the switch, and then pull out all the lines on the control box. 2.3 Change a new control box and fix it on the stand,then insert the correct The control box has been removed.

  • Page 22: Accessories Usage

    ® HOPEFULL electric bed Instruction Manual 4.2 Remove this two screws with the cross screwdriver; 4.3 Change a new MJB then fix this two screws. 2.11 Accessories usage(Option) 1. IV drip stand usage 1.1 Firstly insert the IV drip stand into the socket, then lift the inner pipe of IV stand to a desired height, and then fasten the “locked screw”.（as below picture）...

  • Page 23: Backup Battery Maintenance

    ® HOPEFULL electric bed Instruction Manual the “locked screw”. 1.3 Safety working load for IV drip stand is 5 kilogram IV drip stand Locked screw Adjustable IV drip stand socket 2. Lifting pole usage Please insert the lifting pole into the lifting pole socket before using it.（Re. the picture as below) Lifting pole is optional.

  • Page 24: Cleaning And Disinfection Of Bed

    ® HOPEFULL electric bed Instruction Manual sealed structure, no harmful gas will be produced when charging; high discharge rate, stable characteristic, free maintenance. The battery cannot be replaced by the user and must be maintained by the designated professional staff.

  • Page 25: Malfunction And Elimination Methods

    ® HOPEFULL electric bed Instruction Manual and wrest dry to wipe away the residual scour, finally dried with clean dry cloth. 4. Please do not use volatile chemicals to clean, such as thinner, volatile liquid, gasoline and so on. Or else it will cause the materials to change colors or the quality change.

  • Page 26: After-Sales Service Contact Information

    Tech Support No : 866-3POINTA (376-4682) Tel : 909-869-8949 Fax : 909-869-8959 info@pointatech.com www.pointatech.com Manufacturer: Hopefull Medical Equipment Co., Ltd. Address: The Yangtze Industrial Park, Economic Development Area,Xian'ning City 437100 ,Hubei Province, China. Tel: +86(715) 8898610 Fax: +86(715) 8898613 E-mail: sales01@hope-full.com Website: www.hope-full.com...
