- Page 1 Mobile thermal printer MPT-III Series User Manual...
-
Page 2: Table Of Contents
Content Precautions ........................... 3 Chapter 1 Brief Introduction ....................5 1.1 Appearance ......................... 5 1.2 Model definition......................5 1.3 Acessories ........................6 Chapter 2 Function Features ....................6 2.1 Printing feature ......................6 Physic parameters ......................6 Environment parameters ....................6 Other features. -
Page 3: Precautions
Precautions 1. Safety Precautions Only use li-ion battery and power adapter fit for this printer, otherwise it may cause the losses to printer, leakage, fire or explosion. Don’t throw li-ion battery into fire, make battery short circuited, tear it apart or heat, otherwise it may result in leakage, fire or explosion. - Page 4 Be sure to carefully read the user manual before using the product. Ignore the following instructions may cause battery overheating, fire, explosion, damage and / or performance, and reduced product life. 1) Do not allow water, sea water from entering or leaking into the battery inside. If the batteries internal safety device burn, when charging it, it may cause any abnormal current and / or voltage, caused by abnormal chemical reaction, then the battery may cause overheating, fire and / or explosion.
-
Page 5: Chapter 1 Brief Introduction

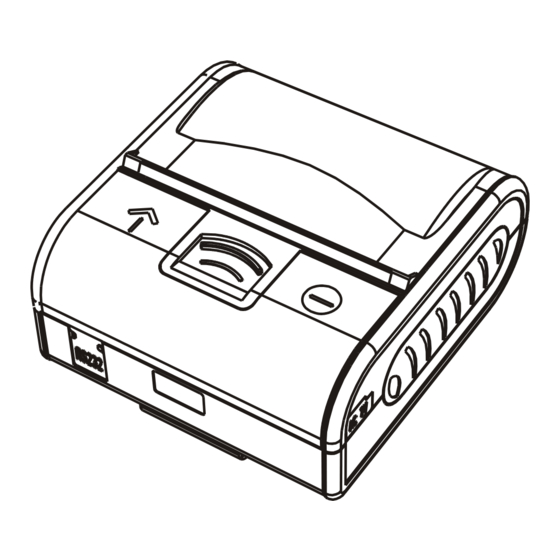

safety device, the battery charge may cause any abnormal current and / or voltage, caused by abnormal chemical reaction, and may cause the battery to overheat, ignite, and / or explosion. Chapter 1 Brief Introduction 1． Appearance 1. Feed button 2. -
Page 6: Acessories
1.3 Accessories Standard accessories Li-ion battery Power cable Adapter Roll paper Optional accessories Leather coat Serial interface cable Chapter 2 Function features 2.1 Printing feature Printing method: Thermal line Paper width: 80mm Paper thickness: 60 ～ 80μ m Valid printing width: 72 mm Resolution: 8 dot/mm (203 dpi) Dot /line: 576 dots Printing speed: 50-80 mm/s... -
Page 7: Other Features
Other features Paper feeding method: Easy paper loading Mark position: detecting mark position Paper sensor: LED indicator flashes when come to paper end meanwhile alarm. Printing control indication: ESC/POS compatible with commands set Power: 1500 mAh rechargeable li-ion battery Power alarm: indicator flashes when printer will run out of power and give out two short hoots. -
Page 8: Basic Function
3.2 Basic Function 3.2.1 Power on When power off, please push the power button（right button） for 2 seconds and then standby, power LED indicator is red. Note: If blue LED indicator is flashing slowly, it means printer will run out of the power and please charge it or replace li-ion battery if you want to continue use it. -
Page 9: Bluetooth
3.3.3 Bluetooth Hand terminal, notebook and other intelligence terminal drive to printer through Bluetooth. Methods: Add Bluetooth device through click Bluetooth icon with your mouse right button on Bluetooth control panel. Find new device MPT-III. Click ‘next’ and enter your password ‘ 0000’ , then finish. The system will display interface added, one interface is output interface, the other input interface.
