Summary of Contents for American Audio WM-419

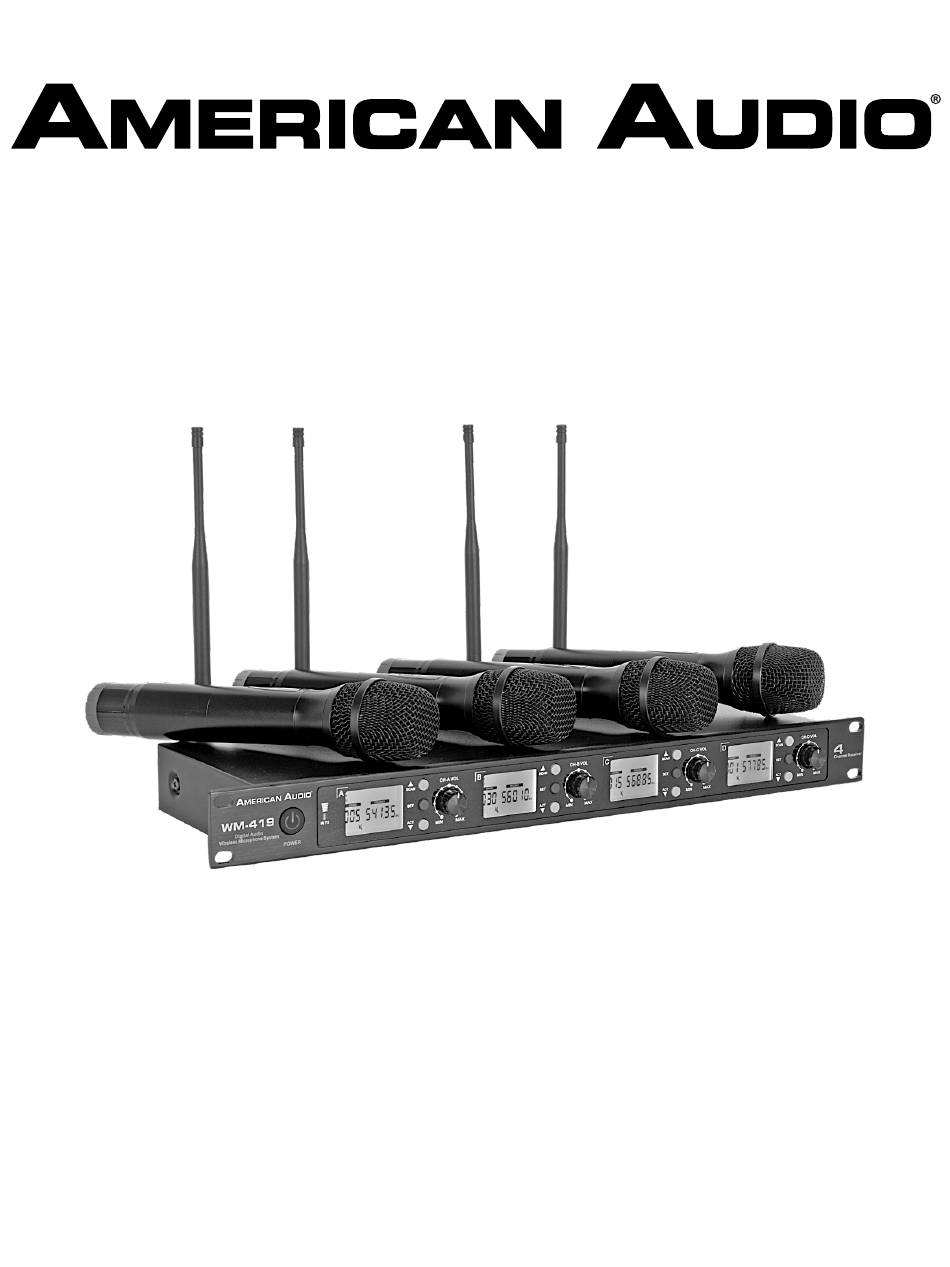

- Page 1 WM-419 Professional Wireless Microphone System user manual...
- Page 2 ® ©2019 AMERICAN AUDIO all rights reserved. Information, specifications, diagrams, images, and ® instructions herein are subject to change without notice. AMERICAN AUDIO and identifying product names ® and numbers herein are trademarks of AMERICAN AUDIO . Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Overview Set Up Instructions Operation Maintenance Guidelines Troubleshooting Tips Frequently Asked Questions and Dimensions Technical Specifications Optional Accessories... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY RETURNS The WM-419 carries a 1 Year (365 days) limited warranty. This warranty covers parts and labor. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. -
Page 5: Limited Warranty (Usa Only)
All shipping charges must be pre-paid. If the requested ® repairs or service (including parts replacement) are within the terms of this warranty, American Audio will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. -
Page 6: Safety Guidelines
S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. AMERICAN AUDIO ®... - Page 7 S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S DO NOT attempt installation and/or operation of devices without knowledge how to do so. DO NOT permit operation by persons who are not qualified to operate these types of devices.
-
Page 8: Overview
ANT.D ANT.C ANT.B ANT.A 420mm O V E R V I E W Box Contents: (1) Receiver (4) Handheld Microphones CH-A VOL CH-B VOL CH-C VOL CH-D VOL SCAN SCAN SCAN SCAN CHANNEL FREQUENCY CHANNEL FREQUENCY CHANNEL FREQUENCY CHANNEL FREQUENCY (4) Microphone Stand Clips M H Z M H Z... - Page 9 O V E R V I E W RECEIVER OVERVIEW CH-A VOL CH-B VOL CH-C VOL CH-D VOL SCAN SCAN SCAN SCAN CHANNEL FREQUENCY CHANNEL FREQUENCY CHANNEL FREQUENCY CHANNEL FREQUENCY M H Z M H Z M H Z M H Z 10 11 13 14 ANT.D...
-
Page 10: Set Up Instructions
S E T U P I N S T R U C T I O N S SET UP There are many factors that can affect and/or interrupt the wireless UHF signal. These factors can include walls, glass, metal objects, other solid surfaces, other digital or electronic devices (CD/DVD/Media players, computers, laptops, Wi-Fi devices, cell phones wireless phones, two-way radio communication devices and wireless remote controls), electronic appliances and people. -
Page 11: Operation
ANT.D ANT.C ANT.B ANT.A 420mm O P E R A T I O N WIRELESS HANDHELD MICROPHONE 1. Open the battery cover and insert the batteries as indicated. CH-A VOL CH-B VOL CH-C VOL CH-D VOL SCAN SCAN SCAN SCAN 2. - Page 12 O P E R A T I O N WIRELESS RECEIVER 1. Place the receiver on a flat non-metal surface or install in an equipment rack. 2. Connect all four included UHF antennas to the receiver. 3. Position the UHF antennas vertically and ensure they are fully extended. 4.
-
Page 13: Maintenance Guidelines
M A I N T E N A N C E G U I D E L I N E S DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! CLEANING Frequent cleaning is recommended to insure proper function, and an extended life. The frequency of cleaning depends on the environment in which the device operates in: damp, smoky or particularly dirty environments can cause greater accumulation of dirt and or debris in the tank. -
Page 14: Troubleshooting Tips
T R O U B L E S H O O T I N G T I P S Problem Possible Cause Remedy 1. AC adapter not connected to 1. Connect AC adapter to receiver receiver or power source. and/or power source. 2. -
Page 15: Frequently Asked Questions And Dimensions
F R E Q U E N T L Y A S K E D Q U E S T I O N S Listed below are a few answers to common questions users may have. 1. What is the carrier frequency? The carrier frequency is UHF 540-590 MHz 2. -
Page 16: Technical Specifications
S P E C I F I C A T I O N S MODEL: WM-419 Carrier Frequency: UHF 540-590 MHz Frequency Stabilization: > ±20PPM Dynamic Range: > 98dB Total Harmonic Distortion: < 1% Frequency Response: 50 Hz ~ 14 Hz Audio Output Level: 0-300 mV ¼... -
Page 17: Optional Accessories
O P T I O N A L A C C E S S O R I E S Order Code Description XL-3 3-foot XLR male to XLR female audio cable.* XL-12 12-foot XLR male to XLR female audio cable.* XL-25 25-foot XLR male to XLR female audio cable.* XL-50...
