iOptron iPolar 3339R-SGP Installation Manual

Tool needed: 2mm and 2.5mm hex key wrench

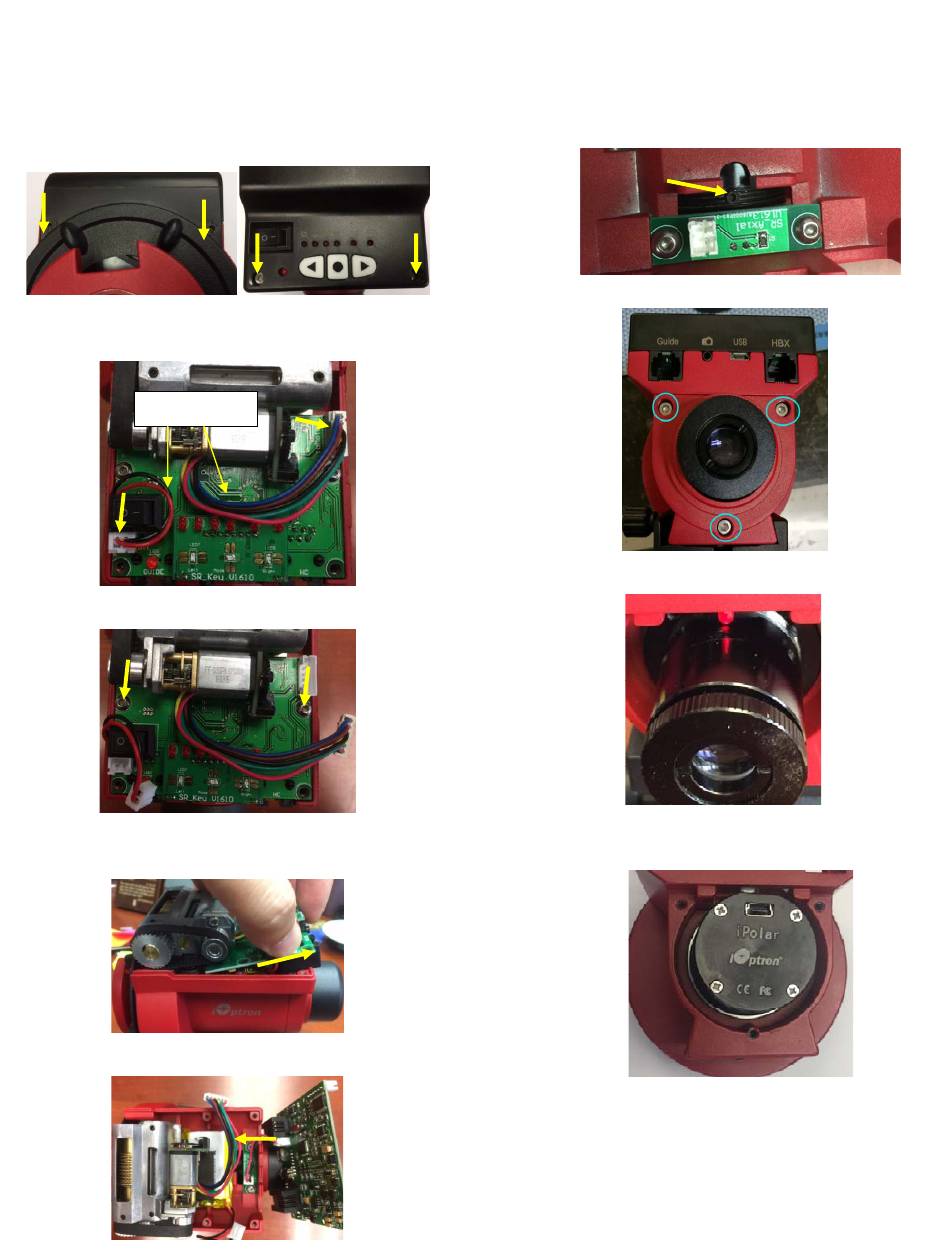

1. Loosen two screws at the front of the mount and
two others on the top of a SkyGuider Pro main
board cover and remove the black cover.
2. Unplug the 6‐wire motor driver cable and DC power
cable. Remember how wires wrapped.
Wire wrapping
3. Remove two mounting screws.
4. Gently pull the circuit board with sockets end up
and slide the circuit board out.
5. Disconnect the polar scope LED cable.
iPolar Installation –SkyGuider Pro (#3339R‐SGP)
6. Rotate the RA axis to find two set screws next to the
LED board, which are used to secure the polar
scope in place. Use a hex key to release the set
screws. Pull the polar scope out of the RA axle.
7. Remove polar scope cover and base.
8. Remove the polar scope out of the RA axis.

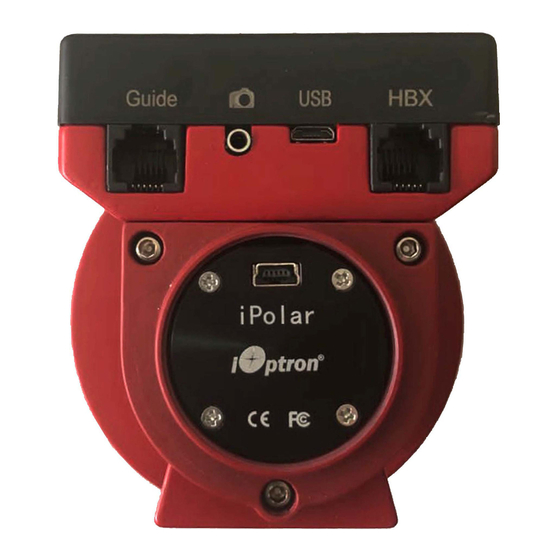

9. Insert the iPolar into the RA axis. Lock the set screw
gently to secure the iPolar.
10. Replace the Polar Scope base plate with a new one
with larger opening.
