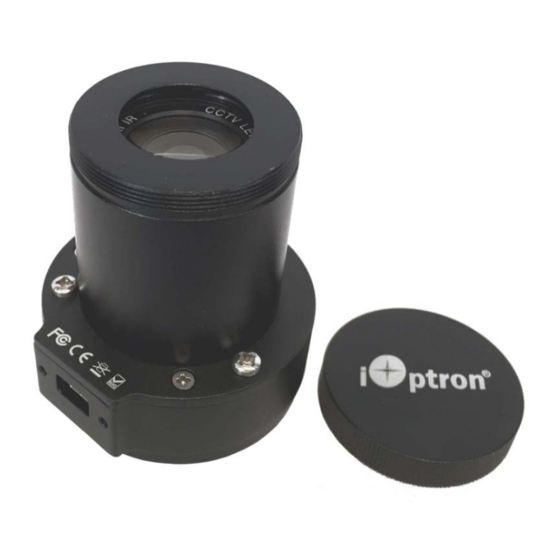

- Page 1 ® PoleMaster Electronic Polar Scope Installation and User manual Product #3338-25, #3338-34, and #3338-60...
- Page 2 Ver. 1.0 2015.12 Rev.2.0 2016.2 iOptron reserves the rights to revise this instruction without notice. Actual color/contents/design/function of a product may differ from those described in this instruction manual. 2 ...
- Page 3 1mm hex wrench; and you have to restart from the beginning. An And ONE of following: iOptron’s Center-balanced Equatorial Mount o CEM60 mounting adapter (for (CEM), such as CEM25 and CEM60, which CEM60/CEM60EC, P/N #3338-060), equipped with an all time accessible polar scope, will allow you to make a quick and precise polar alignment in a few minutes.
- Page 4 2.2.2. iEQ/iEQ Pro 2.2. Assembly 2.2.1. CEM60 Set the mount in Zero Position. Remove the polar scope cover and thread the iEQ30/45 mounting adapter (#3337-034) on. Set the mount in Zero Position. Remove the polar scope cover and thread the CEM60 mounting adapter (#3337-060) on.
- Page 5 2.2.3. CEM25/ZEQ25 Retreat the thumb screw and insert the electronic polar scope. Align the USB port to the left side, as shown in the photo. Tighten the thumb screw to lock the polar scope in place. 2.3. Focusing PoleMaster Polar Scope Each PoleMaster’s lens is focused manually before shipping from factory.
-
Page 6: Maintenance And Servicing
So please contact iOptron first to avoid alignment accuracy achievable after this returning the mount for repair. stage is 30 arcseconds. It is recommended to send technical questions Note: support@ioptron.com... - Page 7 environmental laws determined by calculation while rotating the regulations to ensure that it will mount. be recycled in a manner that protects human health and the 6.3. How to use in low latitude area? environment. To find out where At low latitude, the atmospheric refraction will you can drop off your waste equipment for cause the Pole Position not on the geometric recycling, please contact your local waste...
-
Page 8: Appendix A. Technical Specifications
Appendix A. Technical Specifications Field of View (FOV) 11 degree X 8 degree Alignment Precision (Coarse) 5 arcmin approx. Alignment Precision (Max.) 30 arcsec Optical 25mm focal length Image Capture Device MT9M034 Chip Size 1/3 inch Pixel Number 1.2 million (1280X960) Pixel Size 3.75μmX3.75μm Interface... -
Page 9: Appendix B. Software Version History
Appendix B. Software Version History Camera Driver V150915 PoleMaster Software V109 Initial Release V110 Optimized UI interface. Updated Japanese translation V114 Added astronomical refraction calibration function Added Southern Hemisphere Support. Added manual adjustment for the two rectangle position squares after the mount GOTO. ... - Page 10 A. iOptron warrants your telescope, mount, or controller to be free from defects in materials and workmanship for one year. iOptron will repair or replace such product or part which, upon inspection by iOptron, is found to be defective in materials or workmanship. As a condition to the obligation of iOptron to repair or replace such product, the product must be returned to iOptron together with proof-of- purchase satisfactory to iOptron.
