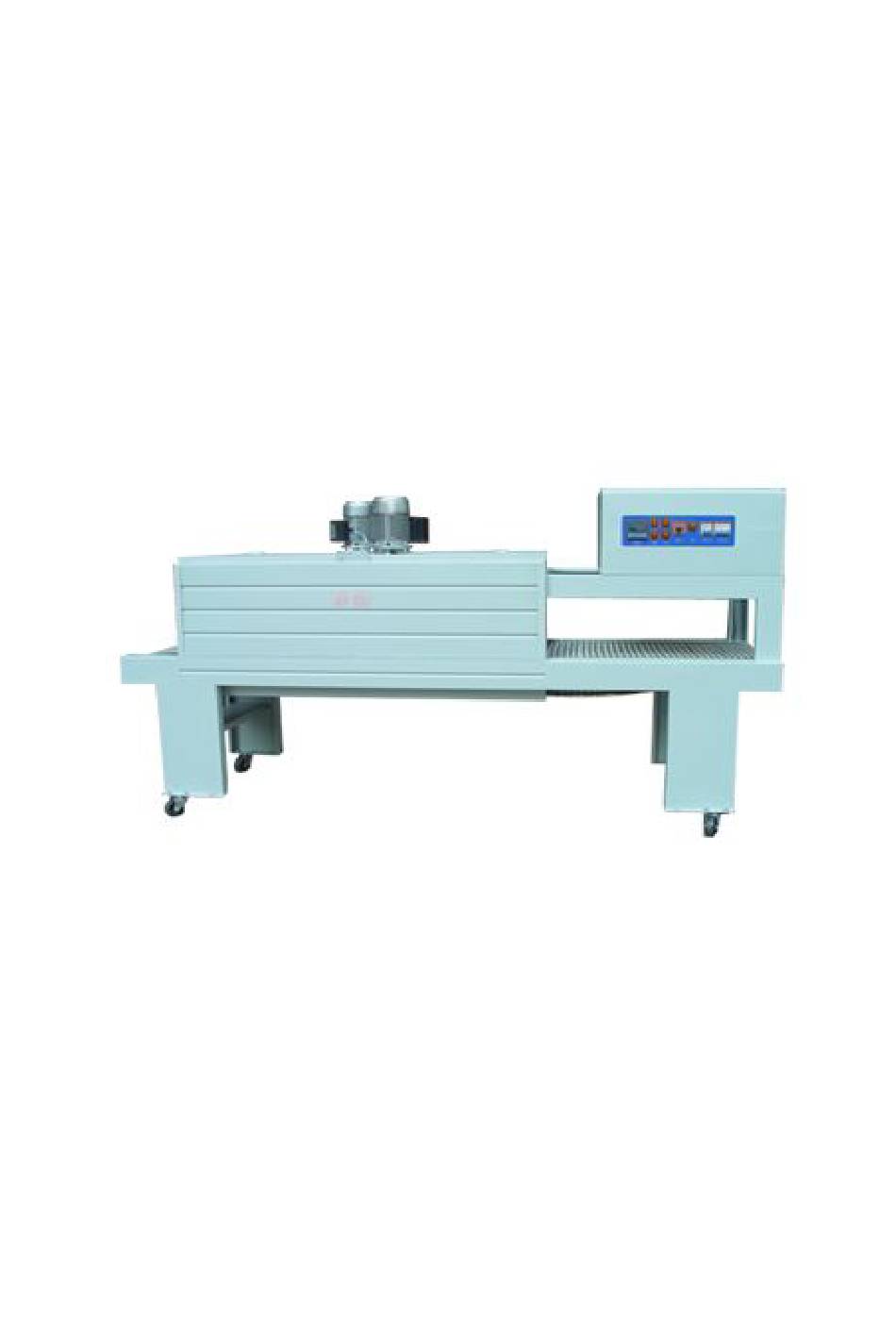

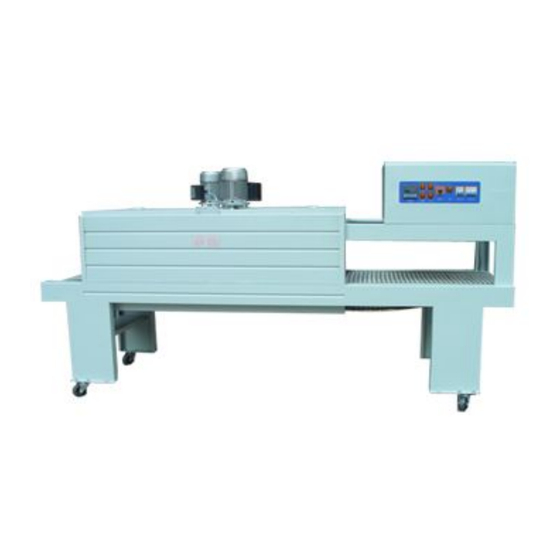

- Page 1 PE SHRINK PACKING MACHINE BS5530M-PE ＆ BS5540M-PE OPERATION MANUAL 中 国 华 联 机 械 有 限 公 司 ●...
-
Page 2: Function & Feature
I. USE: Shrink packing machine is one of the advanced packaging ways in the international market at present. It adopts shrink film to products or being packed articles, and then to heat the shrink packing material & tightening products or being packed articles, so that the appearance of the articles is shown fully, so that the articles can be put well on display and which may also increase the their beauty and value. -
Page 3: Control Panel
CONTROL PANEL: 1. Intelligent temperature regulator 2. Heating switch 3. Conveying switch 4. Electronic speed regulator 5. Hot wind switch II 6. master control switch 7. Heating master switch 8. cooling switch TEMPERATURE & TIME FOR SHRINK FILM: Term Shrinking room Name Thickness (mm) Heating(S) Film temperature (℃) -
Page 4: Malfunction & Troubleshooting
After rinsing package, firstly, please shut off the heating switch, and let the conveying motor and fan working for another 20 minutes of so, then shut off the other power switch, master heating switch and master controlling switch. The diameter of the inputting wire for this machine should be more than 6mm, and do not put your hand into the machine in case there’s an electric shock. - Page 5 specification, we won’t we won’t describe here. 37 36 35 34 PE-M broken d...
- Page 6 Spare parts list for M-PE shrink packing machine Name Chain I 08B 398 nodes with pin GB 14212-93 Locating collar φ27× φ21×10 Mesh-belt Wide495 Roller End lid Inner φ20 Driven shaft φ20×587 Driven chain wheel P=12.70,Z=14, inner φ32 Bearing 6804Z Bale spring In φ17.5×1 GB 894.1-86...
- Page 7 Conveying motor Potentiometer Heating tube Heating tube Heating tube Hot wind AC contactor J ELECTRIC THEORY DIAGRAM 13 14 1 2 3 4 5 6 Power master switch Heating master k1 for earth connect 380V...
