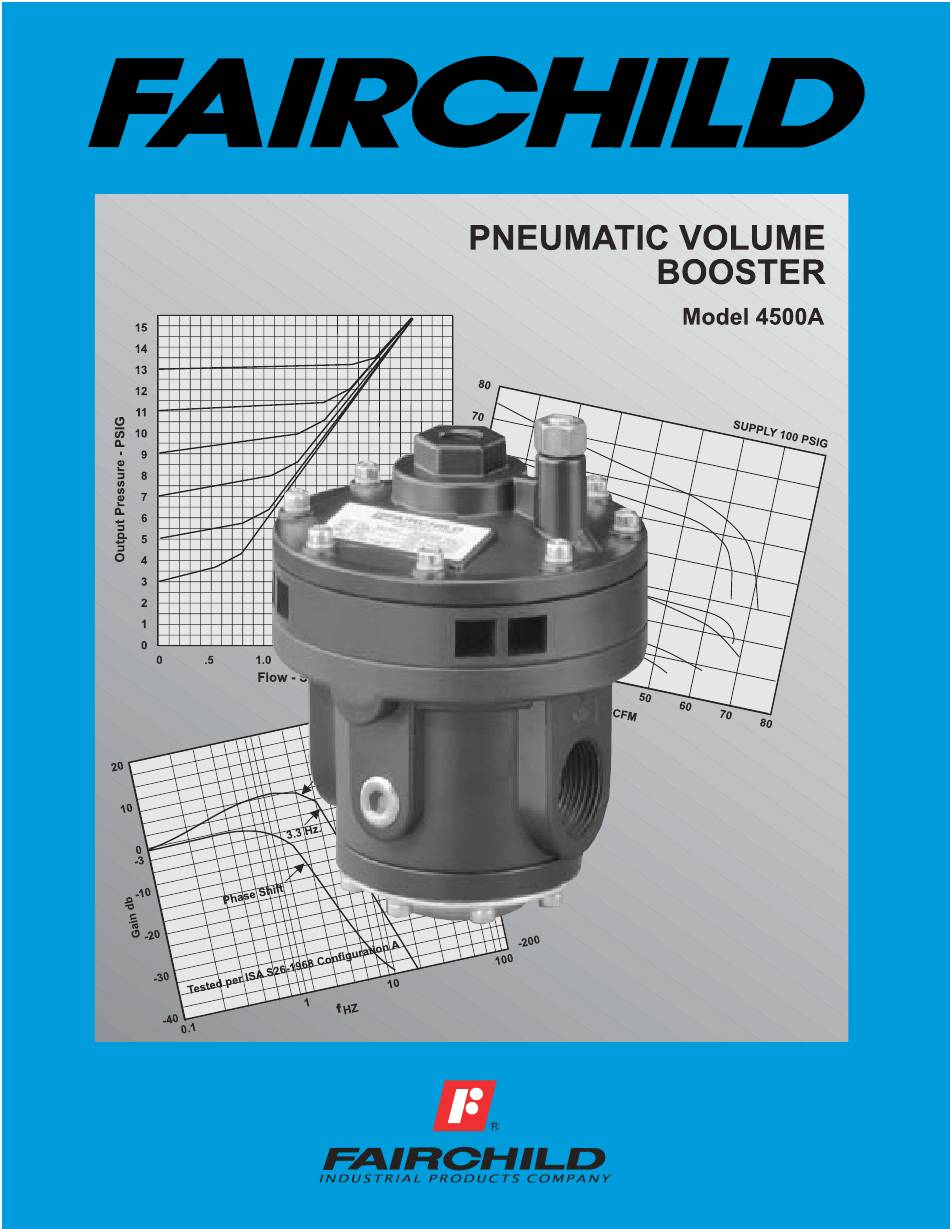

Summary of Contents for Fairchild 4500A
-
Page 2: General Information

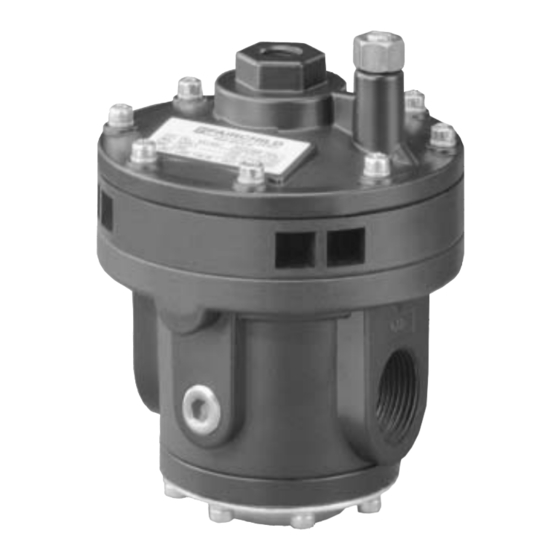

(1:1 Ratio Only) or dividing ratios. It is ideal for systems requiring input isolation or increased flow capacity. • Unit construction lets you service the Model 4500A without removing it from the line. The Model 4500A has the following features: OPERATING PRINCIPLES • Five (5) signal to output ratios meet most control element... -
Page 3: Specifications
Inlet Port 3 13/32 3 1/2 86.6 1/4 NPT Face Dim. 88.9 Gage Ports (2) 4 1/2 (typical) (typical) 114.3 Figure 2. Model 4500A Outline Dimensions SPECIFICATIONS FUNCTIONAL SPECIFICATIONS PERFORMANCE SPECIFICATIONS Ratio Ratio psig 1" 2" 3" 2" 2" Maximum... -
Page 4: Typical Application
(800 kPa) Tire Supply Model Pneumatic 4516A Electrical Figure 3. Model 4500A Inflation and Test Pressure Application VRG CONTROLS USE MODEL 4514AE ORDERING INFORMATION ORDERING INFORMATION TYPICAL APPLICATION The Model 4500A controls inflation and test pres- Catalog Number sures of a tire testing machine. An electronic control-...
