Installation, Operation and Maintenance Instructions
By-pass Valve
1:1 Ratio Only
(optional)
5/16
1/4 NPT
Signal Port
8.1
3/8
9.5
5 5/64
128.8
3 19/64
83.8
3/8 NPT
Inlet Port
3 1/2
Face Dim.
88.9
(typical)

INSTALLATION

You can mount the booster in any position without
affecting its operation.
Clean all pipelines to remove dirt and scale before
installation.
Apply a minimum amount of pipe compound to the
male threads of the fitting only. Do Not use teflon
tape as a sealant. Start with the third thread back
and work away from the end of the fitting to avoid
contaminating the booster. Install the booster in the
air line.
The Inlet and Outlet ports are labeled "In" and "Out".
Tighten all connections securely. Avoid undersized
fittings that will limit the flow through the booster. For
more information, see Figure 1.
FAIRCHILD MODEL 4500A
PNEUMATIC VOLUME BOOSTER
31/64
12.2
3/8 NPT
Outlet Port
(typical)
3 13/32
86.6
1/4 NPT
Gage Ports (2)
(typical)

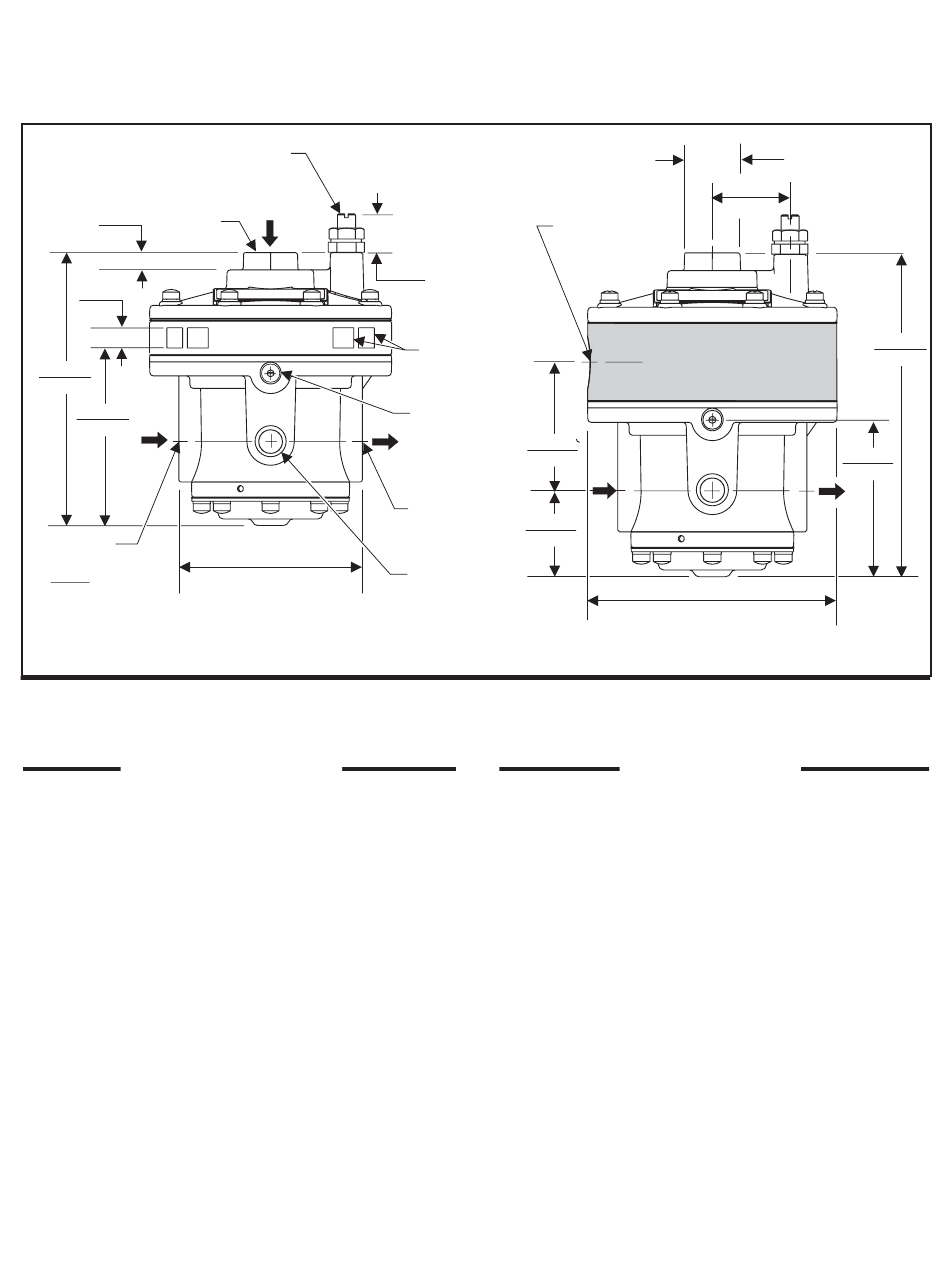

Figure 1. Model 4500A Outline Dimensions
1/2 NPT Tapped
Exhaust Port
(optional)
By-pass
Valve Closed
Exhaust
Vents (8)
(keep clear)
1/8 NPT
Remote
2 19/64
Feedback
58.5
Port
(optional)
1 9/16
39.6
The Model 4500A reproduces a pneumatic signal in
a 1:1 ratio or in multiplying or dividing ratios.
(Po = Ps x R); where Po is output pressure, Ps is
signal pressure, R is ratio.
NOTES: Oil free air must be applied to the
booster. Use a filter to remove dirt and en-
trained liquid in the air line ahead of the booster.
If an air line lubricator is used, it MUST be
located downstream of the booster to avoid
interference with performance.
1
Hex.
25.4
1 13/32
35.9
4 1/2
114.3

OPERATION

5 53/64
148.2
2 53/64
71.8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4500A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fairchild 4500A

  • Page 1 INSTALLATION OPERATION You can mount the booster in any position without The Model 4500A reproduces a pneumatic signal in affecting its operation. a 1:1 ratio or in multiplying or dividing ratios. (Po = Ps x R); where Po is output pressure, Ps is Clean all pipelines to remove dirt and scale before signal pressure, R is ratio.
  • Page 2: Troubleshooting

    MAINTENANCE To clean the Model 4500A, use the following steps: Shut off system pressure to the booster to prevent air from escaping. It is not necessary to remove the booster from the air line. Remove the four Screws and Washers (be- tween ports) from the bottom of the unit.
