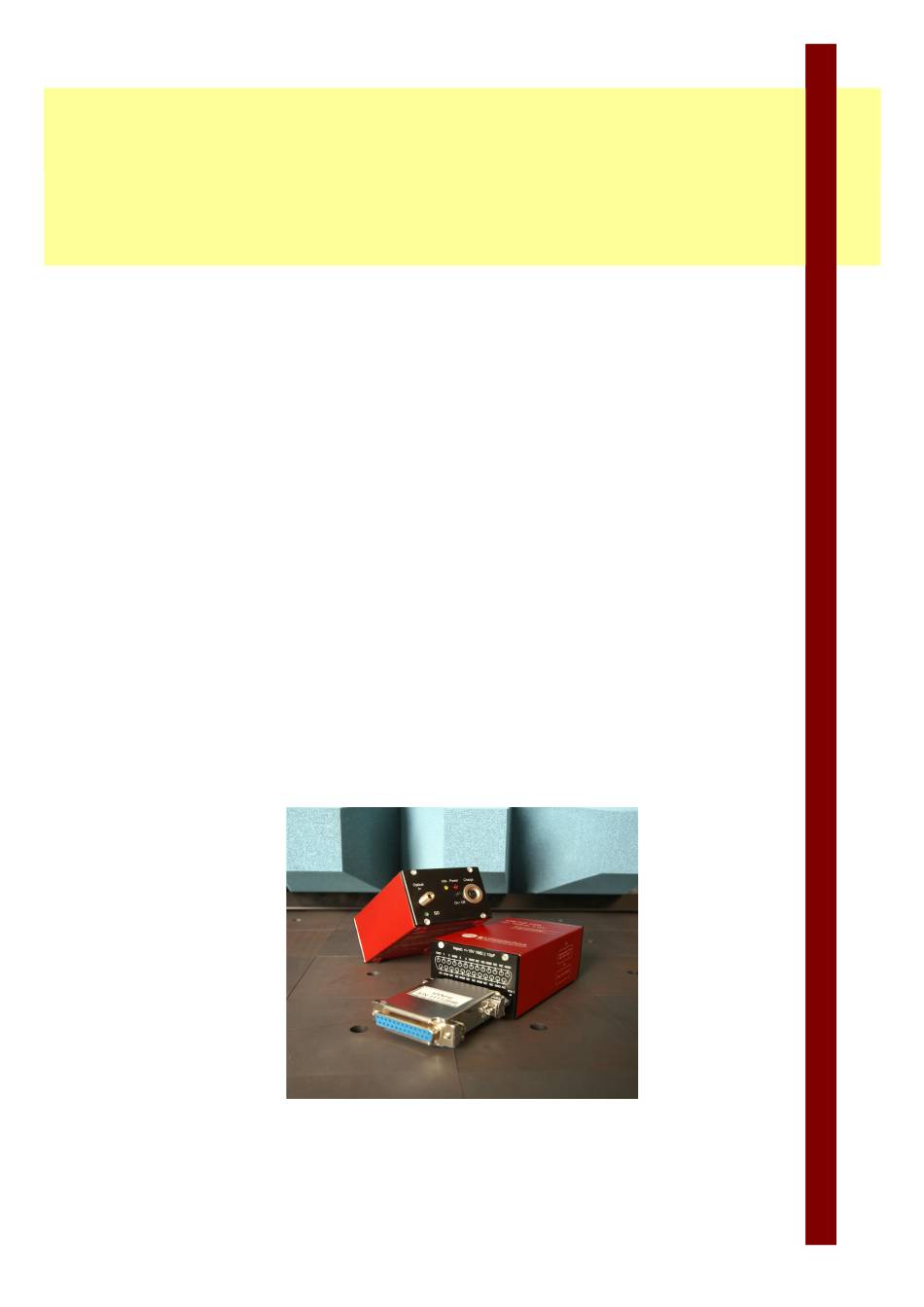

Analog transmitter BV15 U16/14-100k Manual Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com...
Page 2
Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com...
Power is supplied by internal NiMH-batteries which make the system easy to use. The U16/14-100k is prepared for the use of external batteries (with optional battery pack). Distributed by: Reliant EMC LLC, 3311 Lewis Ave, Signal Hill CA 90755, 4089165750, www.reliantemc.com...
U16/14-100k Date: 11/19/13 Manual Page 5 Field of application • Transmission of analog signals during EMC-tests • Transmission of analog signals over long distances without voltage loss (up to 100m or more, depending on timing requirements) • Handle ground potential problems An external filter has to be used for high level EMC-tests.
2 (+) and pin 4 (GND). An external supply (6…8V, 0.5A) system might get can be connected to pin 3 (+) and pin 4 (GND). Use only power supplies damaged! which are certified by mk-messtechnik. Pinning of charge- / buffer connector Figure 5.1: pinning of charge plug The included chargers are not meant to power the transmitter or receiver during operation.
U16/14-100k Date: 11/19/13 Manual Page 7 Trouble shooting The following trouble shooting list is provided to assist you while having problems. It might let you use the system again without a long down time: Error: Possible reasons: Solution: No or erroneous...
Date: U16/14-100k 11/19/13 Page: 8 Manual Error: Possible reasons: Solution: Low-impedance at Input wiring defective (if Send in device to the input system was used for manufacturer immunity tests without external filter or over voltage at input) Accessories / Options...
The following chapter is used to describe special details of the Ux/14-100k Appendix for fully system with up to x=16 channels (+/-15V) for unidirectional transmission. loaded U16/14-100k. In this appendix, the maximum number of channels is being described. The The pinning of your...
Page 10
Date: Ux/14-100k 19.11.13 Page: A2 Manual - Appendix Fig. a.2 shows the rear sides of transmitter(left) and receiver (right) with connectors: Input: +/-15V 1MΩ || 10pF Output: +/-15V max. 10mA Rear sides with 13 15 connectors Your pinning is printed on the PIN 1 PIN 1 housing!
Page 11
The measurements can be extended by using the optional battery pack (BP-60) with connector cable or a power supply certified by mk- messtechnik. The external supply can be connected to the system any time (parallel). The connection to the internal battery is decoupled with a diode.
Page 12
Date: Ux/14-100k 19.11.13 Page: A4 Manual - Appendix Only use the battery pack and connector cables from mk-messtechnik! Only use battery Others might lead to a damage of the system! packs and connector cables provided from mk- messtechnik. Other modules influence...
