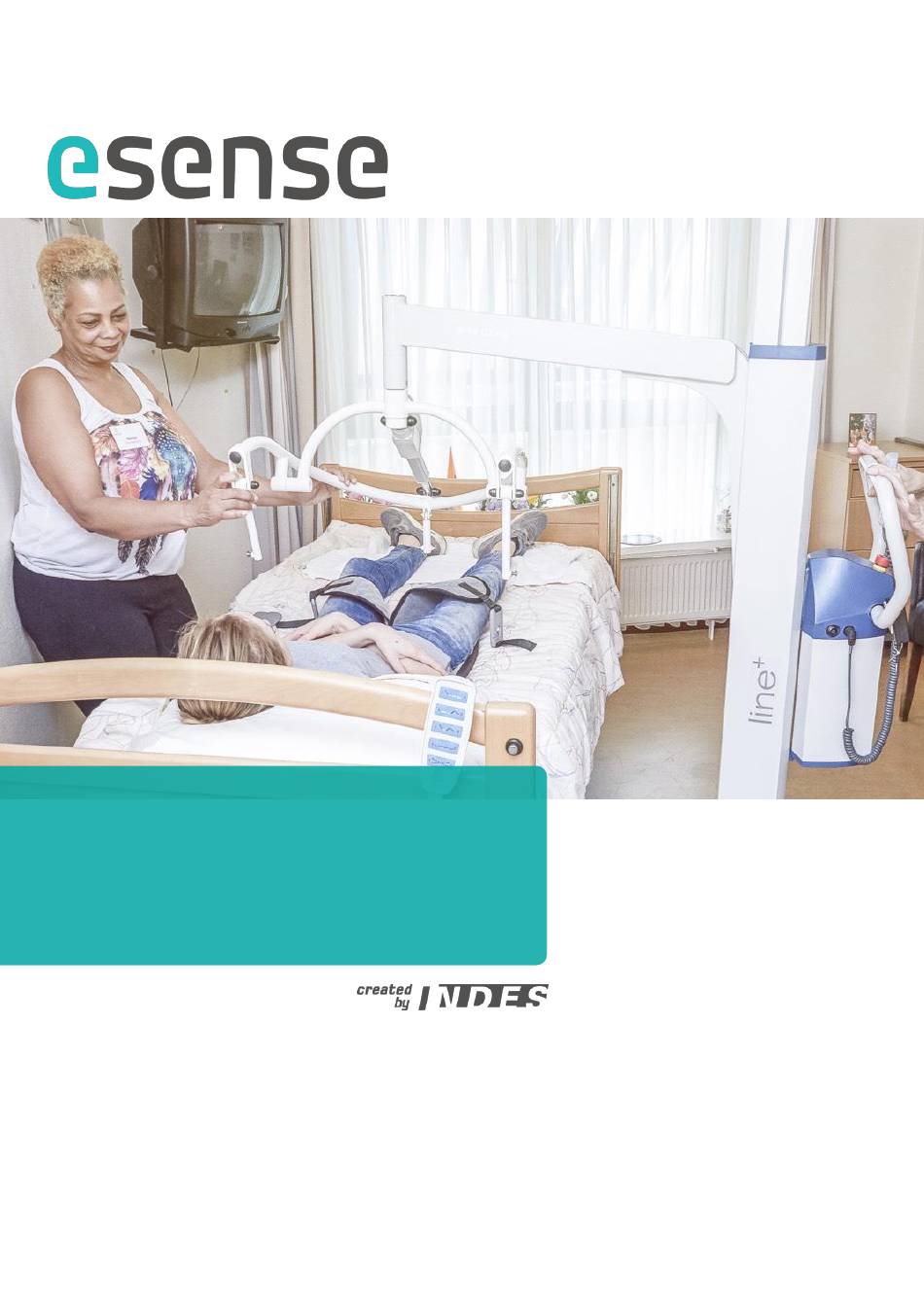

- Page 1 Line user guide esense Line user guide I version 1.00 | 24-04-2019...
- Page 2 Your supplier Name Address Zip Code City Country Phone Email esense is a product by: Indes Production Management T +31 (0)53 4803920 Pantheon 28 info@esense-moves.com 7521 PR Enschede www.esense-moves.com The Netherlands esense Line user guide I version 1.00 | 24-04-2019...
-
Page 3: Table Of Contents
Table of contents Introduction ............................4 About this guide ........................... 4 Definitions ........................... 4 Specific sections .......................... 5 Important safety instructions ....................... 6 Certification ............................7 Product description ..........................7 Product models ........................... 7 Main components ........................8 Component overview ........................8 User interface ............................. - Page 4 The lift does not drive smoothly ....................20 The height and/or hanger bar adjustment is not working ............21 The leg adjustment is not working .................... 21 Technical specifications ......................... 22 10.1 Patient lift ..........................22 10.2 Battery ............................23 10.3 Weigh unit (optional) ........................
-
Page 5: Introduction
1 Introduction Thank you for choosing an esense patient lift! De esense Line is a passive patient lift. With this type of lift you can transfer a patient with minimal force. To provide a fitting solution for every situation, the Line patient lift is available in two models: the standard Line –... -
Page 6: Specific Sections
Specific sections Caution! Text in red boxes describes important instructions and potentially dangerous situations and shall be read carefully. Please contact Indes for clarification in case the text raises any questions. Notice! Text in blue boxes describes points of attention and other issues that are important to be aware of before and during use of the patient lift. -
Page 7: Important Safety Instructions
Do not expose the lift to temperatures below -5°C and over 50°C. Caution! Use the patient lift exclusively with slings of the ‘esense’ or ‘SlingCare’ brand supplied by Indes. These can be recognised by a label with the text ‘esense’ or ‘SlingCare’. Caution! The esense power assist functionality is activated by sensitive sensors in the pushbar. -
Page 8: Certification
Indes shall not be held responsible for any damage and potential resulting consequential damage in case of intentional damage, overdue maintenance, improper use and deviation from the instructions set out in this user guide. 4 Certification All esense products are marked with a CE certification. The products are classified as class I of the Medical Devices directive MDD 93/43/EEC. -
Page 9: Main Components
Main components esense Line manual esense Line 1. Base 6. Controller box 2. Lower mast 7. Hand control 3. Upper mast 8. Pushbar 4. Lifting arm 9. Battery charger 5. Hanger bar 10. esense drive Component overview Base (1) The base of the patient lift is equipped with 4 castor wheels: 2 braked rear castors and 2 unbraked front castors. - Page 10 Controller box (6) The controller box is located at the back of the mast. It contains the electronics needed to control the various electrical adjustments. In the manual version it also contains the battery pack. In models with esense drive the battery pack is located underneath the cover on top of the drive.
-
Page 11: User Interface
6 User interface Hand control The patient lift is controlled using the hand control. It can be taken out of the bracket and held in hand, making it possible to control the lift from many different positions. Indication LEDs 1 Battery level indication 2 Service indication 3 On-off indication User controls... -
Page 12: Service Indication
Service indication Periodic maintenance notification When the service indication LED (2) blinks 3 times when the lift is switched on, it is time for periodic maintenance. During start-up the current date is compared to the date for next periodic maintenance that is set in the system. -
Page 13: Battery Charger
6.6.1 Battery charger To charge the battery open the cover at the back of the controller box. Plug the charger into the controller box and connect it to the mains socket. The charging process starts shortly thereafter. Charging of a fully empty battery takes up to 4.5 hours. Ensure to close the cover on the controller box after disconnecting the charger. -
Page 14: Battery Indication On Hand Control
6.6.2 Battery indication on hand control The battery level indication LED on the hand control reflects the approximate percentage of battery capacity left. It is only lit if the hand control is switched on. Indication LED (hand control) Percentage of battery capacity left Green Over 70% charged Green... -
Page 15: Leg Adjustment
Notice! If excessive force is put on the pushbar (e.g. when it is pushed into motion from rest) the sensors may need to recalibrate. The electrical drive wheel switches off and the service indication LED starts blinking. If this happens then switch the lift off and on again and wait until the on-off LED turns green. -
Page 16: Hanger Bar Adjustment
The patient lift shall be used in combination with a sling that supports the patient during the transfer. The sling is attached to the lifting frame using Visual Clips. Notice! Use the patient lift exclusively with ‘esense’ of ‘SlingCare’ slings supplied by Indes. The slings are recognised by the ‘esense’ or ‘SlingCare’ label. Notice! Carefully read the user guide of the sling before use. -
Page 17: Weight Measurement
Notice! The weigh unit on the patient lift is not certified as medical weighing device (NAWI 2009/23/EU Class III). The weigh unit shall only be used as indicative tool for globally monitoring weight gain and loss over time. 6.14.2 Weight measurement •... -
Page 18: Performing Patient Transfers
7 Performing patient transfers Notice! Always check the patients’ medical file to learn if the patient has any limitations regarding patient lift transfers. • Before performing a transfer select the right size and type of sling and place it within reach. Notice! Esense patient lifts are optimized for use with ‘esense’... - Page 19 Caution! Prevent the patient from bumping into the mast, motor or pushbar during driving. Caution! The patient lift is meant for short-distance transfers only. It is not designed as means of transportation. Limit the distance covered during a transfer to a minimum.
-
Page 20: Service And Maintenance
8 Service and maintenance If used and maintained correctly the average lifespan of the patient lift shall be 8 years minimum. Some parts, like e.g. slings, shin rest, battery and esense drive, are highly sensitive to wear and might have to be replaced during the total lifespan. -
Page 21: Quick Debugging Guide
9 Quick debugging guide The patient lift is not working 1. Check if the lift is switched on by pressing the on-off switch. The on-off LED has to light up green. If it does not then switch the system off and on again. 2. -
Page 22: The Height And/Or Hanger Bar Adjustment Is Not Working
The height and/or hanger bar adjustment is not working Notice! Be aware that the lifting motion is deactivated if the weight capacity of the lift is (far) exceeded. Check if the weight of the patient does not exceed the maximum. Notice! If necessary, use the emergency lowering function to manually lower the patient (see paragraph 6.12 ‘Emergency lowering’). -
Page 23: Technical Specifications
10 Technical specifications 10.1 Patient lift Lift dimensions Line Line Length of the base 100 cm 120 cm Height of the base 11,3 cm 11,3 cm Min. clearance to floor 3,7 cm 3,7 cm Min. internal width 46 cm 46 cm Max. -
Page 24: Battery
10.2 Battery Battery manual esense Drive Guaranteed battery lifetime in charging cycles 500 x 500 x Battery type NiMh NiMh Battery voltage 24 V DC 24 V DC Battery capacity 3,8 Ah 9 Ah Average number of complete transfers on a charged battery (battery capacity at 80%, with 100kg weight) * * Calculation available on request. -
Page 25: Product Label
11 Product label Each patient lift has an identification label, located below the controller box. Maximum lifting weight Article number Serial number Notice! Displayed label is an example and may differ from the actual label on the patient lift. -
Page 26: Warranty
12 Warranty The manufacturer guarantees a 2 year warranty on the patient lift. For batteries a warranty of 500 charge cycles or 2 years is applicable. The manufacturer reserves the right to make changes to the product, deviating from what is described in this guide. -
Page 27: Distribution And Autorization List
Datum 1.00 First version of user guide in English 24-04-2019 esense is a product by: Indes Production Management T +31 (0)53 4803920 Pantheon 28 info@esense-moves.com 7521 PR Enschede www.esense-moves.com The Netherlands esense Line user guide I version 1.00 | 24-04-2019...
