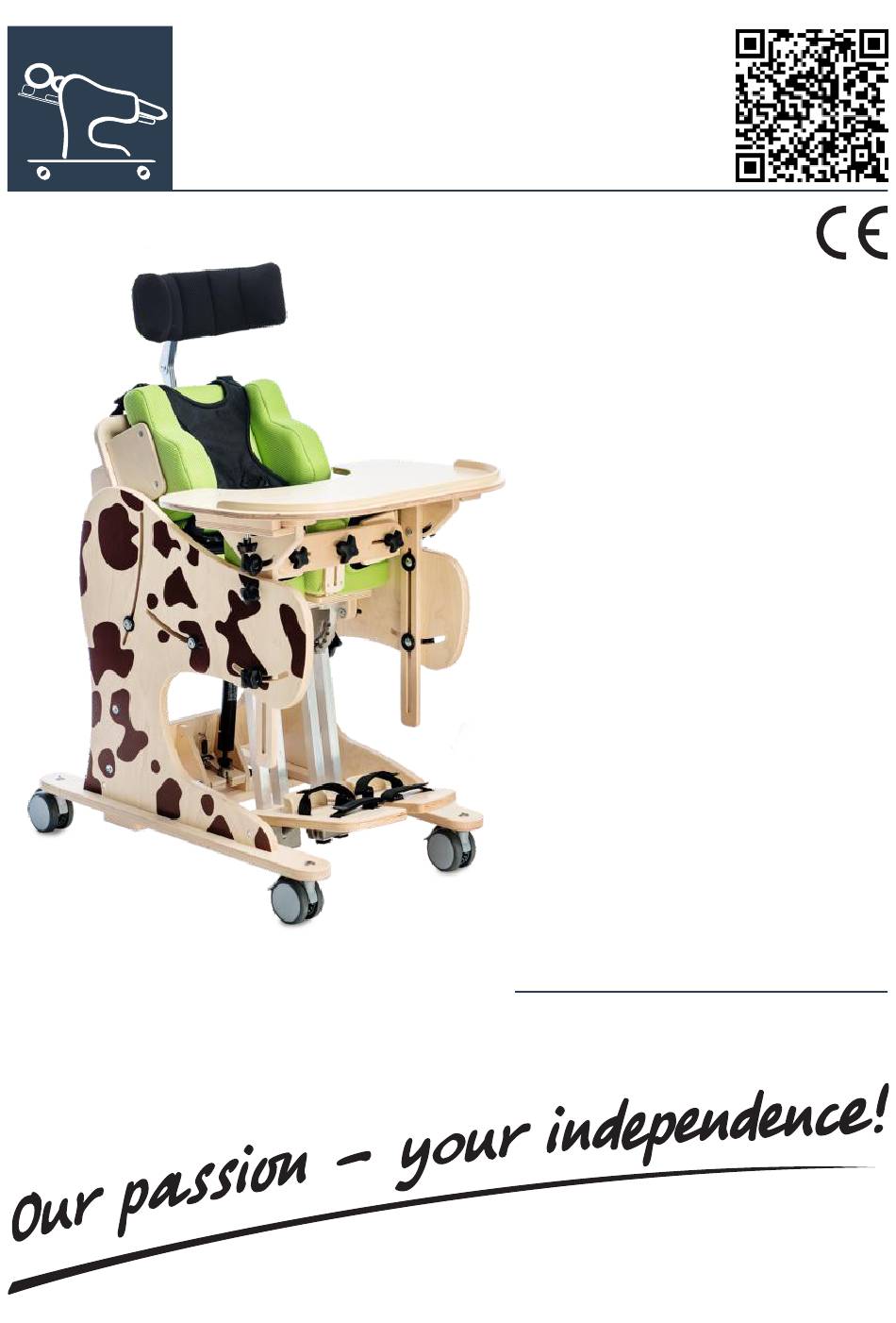

- Page 1 DALMATIAN INVENTO ™ MULTIFUNCTIONAL STANDER USER MANUAL...
- Page 2 CAUTION! Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-Med employee or at specialized medical store! CAUTION! AKCES-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.
-
Page 3: Table Of Contents
DALMATIAN INVENTO CONTENTS The purpose of user manual ....………..............5 Indications for use ......................5 3. General characteristics......................6 3.1 Standard equipment....................7 3.2 Additional equipment....................9 Size table..........................8 Detailed description on how to use multifunctional stander ........POSITIONING CHAIR ......................10... - Page 4 DALMATIAN INVENTO INTRODUCTION DALMATIAN Invento™ is widely used in the process of rehabilitation. It is recommended for not only children but also young people. It is used as a rehabilitation chair during adopting the sitting position and then as a static standing frame in the further process of rehabilitation.
-
Page 5: The Purpose Of User Manual
The present user manual contains basic information which is essential for proper usage, preparation, maintenance, cleaning and guarantee conditions regarding DALMATIAN INVENTO™ multifunctional stander. User manual should be kept in easily accessible place. It is designed for people who look after disabled children, and for both doctors as well as physiotherapists who operate the device. -
Page 6: General Characteristics
DALMATIAN INVENTO GENERAL CHARACTERISTICS OF STANDER 3.2. Standard equipment Frame with castors and brakes Independently adjustable footrest Deep adjustable seat Chest support (size 1, 2) Independently adjustable chest and pelvic support (size 3) Tray Forearm supports Adjustable HexagonPro™ Headrest Pelvic belt ('hold & pull' system) Backrest 10. -
Page 7: Additional Equipment
DALMATIAN INVENTO 3.2. Additional equipment DMI_015 DMI_002 DMI_003 DMI_020 DMI_016 Tango wheel 75/100/125 mm Soft cover for tray Belt for moving patients DMI_101 DMI_102 DMI_103 Thigh abduction belts Head supporting belt 3D foot adjustment DMI_106 DMI_109 DMI_114 Lower limb supporting... - Page 8 DALMATIAN INVENTO DMI_412 DMI_419 DMI_413 Shaped seat cushion (thigh Elastico backrest cushion Elastico seat cushion shape) DMI_431 DMI_507 Push handle Oxygen tank holder www.akces-med.com +48 17 864 04 77 export@akces-med.com...
-
Page 9: Size Table
DALMATIAN INVENTO SIZE TABLE Unit Symbol Measurement Size 1 Size 2 Size 3 [cm] Indicative user height* <100 80-130 100-165 [cm] Seat width [cm] Seat depth 16-25 20-31 27-42 [cm] Backrest height [cm] Headrest height 37-52 42-53 49-64 [cm] Backrest width... -
Page 10: Detailed Description On How To Use Multifunctional Stander
DALMATIAN INVENTO DESRIPTION HOW TO USE MULTIFUNCTIONAL STANDER I. POSITIONING CHAIR 5.1 The adjustment of seat Please follow these steps so as to adjust the depth of seat: loosen 4 fastening knobs situated under • the seat, adjust the depth of seat at your discretion, •... - Page 11 DALMATIAN INVENTO 5.2 The adjustment of backrest's tilt angle Please follow these steps so as to adjust the tilt angle of backrest: loosen fastening knobs, • adjust the tilt angle of backrest at your • discretion, tighten firmly fastening knobs.
- Page 12 DALMATIAN INVENTO 5.4 The adjustment of feet support a) Please follow these steps so as to adjust the height of footers: loosen fastening knobs, • adjust the height of footer at your • discretion, tighten knobs. • b) Please follow these steps so as to adjust...
- Page 13 DALMATIAN INVENTO 5.5 Abduction block with knee support a) Please follow these steps so as to adjust abduction block: loosen fastening knob, • move abduction block either forwards • or backwards, tighten knob. • a) Please follow these steps so as to...
- Page 14 DALMATIAN INVENTO CAUTION! If vest and pelvic belt are mounted, it is necessary to make sure that - buckles do not unfasten under pressure - buckles do not shift due to incorrect assembly 5.6 The adjustment of headrest a) Please follow these steps so as to adjust...
- Page 15 DALMATIAN INVENTO CAUTION! Shin cannot be squeezed by seat or any other elements of seat. 5.7 Assembly and adjustment of vest Please follow these steps so as to mount vest: fasten 4 fastening buckles, • pull cotters so as to adjust the vest at •...
- Page 16 DALMATIAN INVENTO 5.9 Assembly and adjustment of tray Please follow these steps so as to mount tray: loosen fastening knobs situated under tray's top, • adjust upper limb support at the same height, • place tray on upper limb support, •...
-
Page 17: Lying Function
DALMATIAN INVENTO Please follow these steps so as to adjust the tilt angle of upper part of upper limb support loosen fastening knob, • adjust the tilt angle at your discretion, • tighten fastening knobs. • II. LYING FUNCTION If you wish to adjust chair to lying position it is necessary to adjust two footrest and backrest horizontally. -
Page 18: Standing Frame
DALMATIAN INVENTO III STANDING FRAME Please prepare the device for lying function if you want to move on to upright standing. This process is described on page 17 (Look point II LYING FUNCTION page 17) CAUTION! When configuring the device for the upright... - Page 19 DALMATIAN INVENTO CAUTION! Please always make sure that patient's body parts are not placed between movable elements from the device, otherwise patient will hurt. www.akces-med.com +48 17 864 04 77 export@akces-med.com...
-
Page 20: Additional Equipment
DALMATIAN INVENTO ADDITIONAL EQUIPMENT 6.1 Footers with adjustment Please follow these steps so as to mount footers with adjustment: dismantle standard footers, ź mount footers with adjustment; mount them in a places where standard ź footers were mounted, adjust footers at your discretion, ź... -
Page 21: Independent Adjustable Side Pelottes
DALMATIAN INVENTO 6.3 Independent adjustable side pelottes Independent adjustable side pelottes are mounted by manufacturer. Please follow these steps so as to adjust them: measure patient, ź loosen fastening knobs, ź adjust the distance, ź move pelottes either upwards or ź... -
Page 22: Head Stabilizing Belt
DALMATIAN INVENTO 6.5 Head stabilizing belt In order to assemble head supporting belt, there is necessary to: attach Velcro to the both sides of the headrest (fig. 39) ź adjust the length of the belt according the patient's needs ź... -
Page 23: H Harness
DALMATIAN INVENTO 6.7 H harness Please look at point 6.6 so as to find out how to assembly vest. (point 5.6, page 13). Initially, patient should not adjust vest tightly. Once vest is put on, it should be fastened with the aid of belts with plastic straps. Vest can be quickly unfastened. - Page 24 DALMATIAN INVENTO Adjust vest with the aid of Velcro ź tapes situated at the back of vest. 6 points vest should be fastened in ź a place that is created for standard vest (point 5.6, page 14). So as to...
-
Page 25: The Use Of Multifunctional Stander
DALMATIAN INVENTO THE USE OF MULTIFUNCTIONAL STANDER CAUTION! DALMATIAN INVENTO™ multifunctional stander has to be used with compliance to guidelines included in this user manual. Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using DALMATIAN INVENTO ™... -
Page 26: How To Use Multifunctional Stander
DALMATIAN INVENTO 7.2. How to use multifunctional stander 1. Before use it is necessary to: · Unfold the device; · Place the device on even ground; · Make sure that all parts are serviceable, correctly mounted and stable; · Block brakes;... -
Page 27: Upright Position
DALMATIAN INVENTO 7.3. Upright position CAUTION! The length of time for upright position process is different for each patient. It is recommended to extend this time during the initial period (adaption period for the change of position). Either doctor or physiotherapist can make decision concerning the length of upright position process. - Page 28 DALMATIAN INVENTO CAUTION! As far as first upright standing is concerned, it takes place in rehabilitation, neurosurgery or orthopedics wards. Moreover, it has to be performed together with doctor and physiotherapist due to the fact that medical problems may appear during first treatments such as fainting, drop in blood pressure, dizziness etc.
-
Page 29: How To Use Vest
DALMATIAN INVENTO 7.1. How to use vest CAUTION! The vest provides posture support for wheelchair users as well as patients sitting in positioning chairs or other rehabilitation seats. When properly used, the vest allows the patient to adopt the correct sitting position for a longer period of time. - Page 30 DALMATIAN INVENTO Instructions for the proper use of the vest: 1) Make sure that the patient is sitting in the best possible position: in the middle of the seat, · deeply in the seat in such a way that the patient's lumbar spine rests ·...
- Page 31 DALMATIAN INVENTO 4) It should be remembered that any change of the inclination angle of the backrest, seat, foot support or tilt-in-space function might affect the effectiveness of the belts and supports! 5) Special attention should be paid to the use of stabilization elements or side supports.
-
Page 32: Safety Rules
It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of DALMATIAN INVENTO™ and its size. It is also essential to familiarize with the guidelines described in user manual before using the device. - Page 33 DALMATIAN INVENTO 6. It is forbidden to leave the device and the patient on unstable ground unattended, even if the brake is engaged. 7. It is forbidden to either go up or down the stairs; it doesn't matter if the patient is placed in the device or not.
- Page 34 9 where you will find information regarding this issue. 1) AKCES-MED Sp. z. o. o sells products free from manufacturing defects or faults. 2) Manufacturer gives the purchaser 36-month guarantee from the date of purchase.
-
Page 35: Maintenance And Cleaning
DALMATIAN INVENTO MAINTENANCE AND CLEANING DALMATIAN INVENTO™ should be kept clean and used in compliance with the manufacturer's recommendations. The device should be kept in clean, dry and ventilated room. Maintenance as well as cleaning have to be performed at least once a month. - Page 36 DALMATIAN INVENTO CAUTION! Remember that upholstery has to be always dry before using! Before using it is necessary to: · clean wheels; · check if base as well as wheels are correctly mounted; check if brake stops turning wheel ·...
-
Page 37: Labelling
DALMATIAN INVENTO LABELLING Symbols 10.1. Declaration that the product Protect from sunlight meets the essential requirements Catalog number Storage temperature limitation Serial number Relative humidity storage Please read the manual Dry vertically instructions before use Attention! Do not chlorinate Producer... - Page 40 ORTHOPAEDIC DEVICES MANUFACTURER Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. (17) 864 04 77 www.akces-med.com e-mail: export@akces-med.com Authorised Dealer Date of issue: 25.10.2015 The last update: 15.03.2019...
