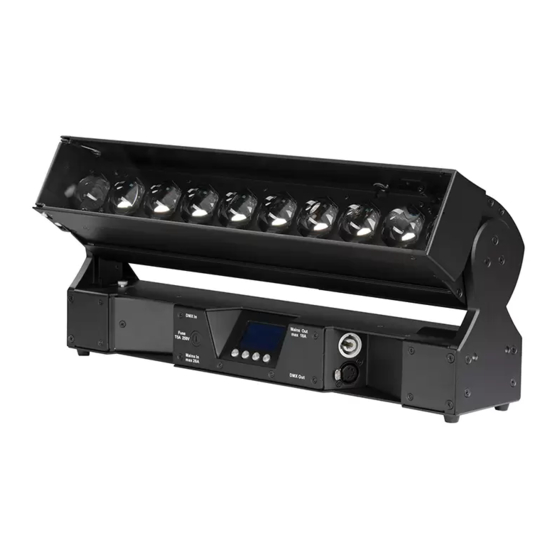

Summary of Contents for German Light Products Impression X4 BAR 10
- Page 1 Serviceanleitung // technical service manual Technische Serviceanleitung / Technical Service Manual e-mail : support@glp.de web : http://www.glp.de GLP German Light Products...
- Page 2 Serviceanleitung // technical service manual 0. Overview 0. Overview Pos. Code Name Quantity 210100410 X4-BAR-10-HEAD-MODULE 210100428 X4-BAR-YOKE-10 GLP German Light Products...
- Page 3 Serviceanleitung // technical service manual Head GLP German Light Products...
- Page 4 460200175 X-BAR-DRIVER-LR 210100217 PRIMARY-OPTICS 460200176 X-BAR SLED 320900032 EGRAF1205-29.8x20.3mm 460200177 X-BAR-LEDPSU 320900035 Sil-Pad800S-80X182.1 210100391 X-BAR-ZOOMDRIVER-MODULE 9.01 560500022 17HC2001-01N 310200446 X-BAR-KK-SEITENDECKEL 310300202 KREUZSCHLITZ-SK-BLECH-M4X12 210100422 X4-BAR-KK-SEITENBLECH-ASSEMBLY 320100280 DECKEL-ZOOM 210100419 X4-BAR-HEAD-FAN-LR-ASSEMBLY 310100832 FANCOVER-X-BAR 310200496 X-BAR-KK-PROFIL1-500 310100838 X-BAR-KK-SEITENBLECH2 210100421 X4-BAR-ENDCAP-ASSEMBLY GLP German Light Products...
- Page 5 Serviceanleitung // technical service manual GLP German Light Products...
- Page 6 210100417 X4-BAR-GEARWHEEL-ASSEMBLY 340100028 BELT-HTD-3M-306-6mm 310200429 ENDKAPPE-1 310100841 FAN-GRILL-X-BAR 210100435 ME50152V2-000C-A99-X4-BAR-10 310100413 X4-BAR-10-POWERCON-MODULE 14.1 210100393 X4BAR-5F-MODULE 14.2 210100392 X4BAR-5M-MODULE 210100425 X4-BAR-DISPLAY-ASSEMBLY 310200456 KEYSTOKE-X4L 460200173 X-BAR-MAIN 210100433 BODENDECKEL-ASSEMBLY-X4-BAR-10 470300007 BATTERY-9V 320200022 RICHCO-SOF-15129 310100835 BATTERY-SHEE 460200195 X-BAR-PFC-PSU-10 210100424 X4-BAR-FIXED-BLOCK-ASSEMBLY-10 GLP German Light Products...
-
Page 7: Wiring Diagram
Serviceanleitung // technical service manual 4.Wiring Diagram GLP German Light Products... - Page 8 Xbar10 DMX in+90 542100491 Xbar10 DMX out+170 540100492 Xbar10 Main to head+415 540100493 Xbar10 Tilt fb+310 540100494 Xbar10 tilthall+445 540100495 Xbar10 tilt motor+295 540100502 Xbar10 PSU to head +430 540100503 Xbar10 PSU to head +740 SWF-103F3950J-100mm/10KΩ/3950±1%(NTC) 470600001 GLP German Light Products...
