German Light Products KNV User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Software Version 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNV and is the answer not in the manual?

Questions and answers

Related Manuals for German Light Products KNV

Summary of Contents for German Light Products KNV

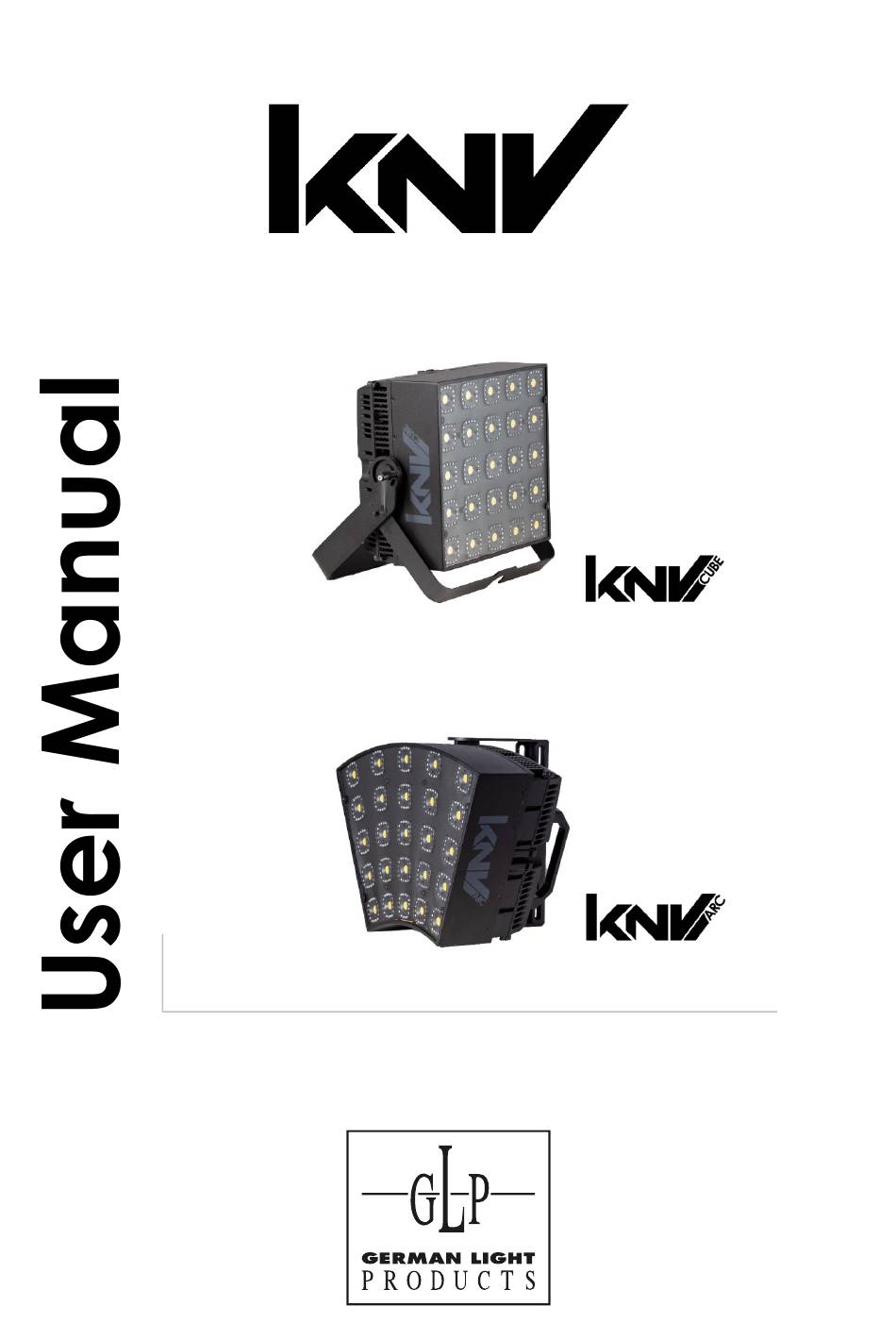

  • Page 1 Software Version 14...
  • Page 2 This manual covers fixture software version 14 © 2018 German Light Products GmbH. All rights reserved. The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries.

  • Page 3: Table Of Contents

    Key to symbols ..................5 Safety information ................... 5 Avoiding damage ..................7 Water and humidity ................7 Transportation and storage ..............8 KNV Cube overview ..................9 KNV Arc overview ..................10 Features ....................... 11 White LEDs ....................11 Color LEDs....................11 Pixel mapping ..................
  • Page 4 Control ....................61 Installation ....................62 Connections ..................62 Electrical ..........Error! Bookmark not defined. Thermal ....................62 Construction ..................62 Accessories .................... 63 Dimensions and weight ................ 63 12. Dimensions ....................64 KNV Cube ....................64 KNV Arc ....................65...

  • Page 5: Safety

    GLP supplier for assistance. Your GLP supplier will be happy to help. The user documentation for GLP® KNV lighting fixtures consists of three documents: • The KNV Quick Start and Safety Manual, supplied with KNV fixtures and available for download from www.glp.de. The Quick Start and Safety Manual contains important safety information and installation instructions that the installer and user must read.
  • Page 6 www.glp.de • Respect all warnings and directions given in the product’s user documentation and on the product. Read the user documentation and familiarize yourself with the safety precautions it contains before installing or using the product. GLP and affiliated companies will take no responsibility for damage or injury resulting from disregard for the information in the user documentation.

  • Page 7: Avoiding Damage

    Do not expose the fixture to heat (from other lighting fixtures for example). Water and humidity KNV fixtures are IP54 rated. In outdoor and high humidity applications, make sure that all external power and data connectors are rated IP54 or higher.

  • Page 8: Transportation And Storage

    www.glp.de Transportation and storage Transport the fixture either in a flightcase or in its original packaging to protect it from damage caused by shocks during transportation. Store the fixture in a dry location when not in use. User Manual Rev. 1.0...

  • Page 9: Knv Cube Overview

    G – AC mains power thru (Neutrik powerCON TRUE1) H – Neutrik EtherCON port for control data (DMX/Art-Net/sACN in/out) I – Neutrik EtherCON port for control data (DMX/Art-Net/sACN in/out) J – Control panel with backlit LCD display KNV User Manual Rev. 1.0...

  • Page 10: Knv Arc Overview

    4. KNV Arc overview Figure 3. Arc overview A – White LED B – RGB LEDs C – Mounting points for optical accessories D – Fixture connector locking channels E – Safety cable attachment point F – AC mains power in (Neutrik powerCON TRUE1) G –...

  • Page 11: Features

    White LEDs The KNV features a 5x5 matrix of cool white LEDs that produce powerful white light at 5000 K. The white LEDs can be controlled together or individually depending on the DMX control mode selected.

  • Page 12: Pixel Mapping

    Pixel mapping If you control the KNV’s 5 x 5 matrix of LED blocks individually, pixels are numbered as shown below as seen from the front of the fixture: 13 14 11 12 13 12 15 18 19 20...

  • Page 13: Pixel Orientation

    Random pixel sparkle The KNV’s Flare effect channels include a Random pixel setting. This setting applies the flare effect to individual pixels at random, giving an impressive sparkling effect. Again, we recommend that you try combining this effect with increased flash length.
  • Page 14 www.glp.de Dedicated FX channels • The first FX channel, the FX Selection channel, lets you choose and activate an FX from a list of dynamic FX patterns. If this channel is set to zero, the third strobe channel controls strobe flash rate. If an FX is selected on this channel, the third strobe channel controls FX speed.
  • Page 15 FX will start at Pixel 21 of the 30 pixels in FX Length and run on pixels 21 - 25 • Fixture 6: FX Length = 30, FX Offset = 26 FX will start at Pixel 26 of the 30 pixels in FX Length and run on pixels 26 - 30 KNV User Manual Rev. 1.0...

  • Page 16: Rgb Color Generator

    www.glp.de RGB color generator Where available, the RGB color generator effect gives instant access to automatic color effects such as random colors, ramp up/down colors and random pixel colors. These effects would be difficult to program on a DMX controller. Extra shutter In DMX modes 1, 6 and 7, an extra shutter effect is available.

  • Page 17: Display

    (see above) or if fixture temperature exceeds optimum level, we recommend that you use medium mode in combination with one of the Output limitation levels available via DMX and in the fixture’s control panel to keep the fixture in output/temperature balance. KNV User Manual Rev. 1.0...

  • Page 18: Fixture Information

    www.glp.de • Low mode sets fans to constant low speed. This mode is optimized for minimum noise. Light output intensity is smoothly reduced if it becomes necessary in order to keep fixture temperature at optimum level. If you want to avoid any automatic reductions in output intensity that may occur if fixture temperature exceeds optimum level, we recommend that you that you use low mode in combination with one of the Output limitation levels available via DMX and in the fixture’s control panel to keep the fixture in output/temperature balance.
  • Page 19 • Load Factory Backup reloads all the fixture’s factory default settings including DMX address, DMX mode and Control Protocol. This option reinitializes the fixture completely and returns to its state when it left the factory. KNV User Manual Rev. 1.0...

  • Page 20: Fixture Control Setup

    6. Fixture control setup To configure the KNV for use in a show or fixed installation, you need to open the fixture’s control menus and configure the fixture’s DMX Address, Control Mode (DMX Mode) and Control Protocol (DMX, ArtNet or sACN).

  • Page 21: Control Menus And Lcd Display

    • Firmware version and build data. DMX control is disabled when the control menus are active. See also the Display options on the DMX Control / Settings channel and in the Display control menu in the control panel. KNV User Manual Rev. 1.0...

  • Page 22: Control Menu Layout

    www.glp.de 8. Control menu layout Menus Notes DMX Start Address 1-512 Enter DMX address Control Mode Mode 1 RGBW + Shutter Mode 2 W Strobe + RGB Strobe Mode 3 RGB Strobe + 25x W Mode 4 W Strobe + 25x RGB Mode 5 Multilayer Mode 6...
  • Page 23 Reboot Force fixture to reboot Send DMX value 0-65353 Green Send DMX value 0-65353 Blue Send DMX value 0-65353 Manual DMX Shutter Send DMX value 0-65353 Stores current control Capture values as Stand-Alone Scene scene KNV User Manual Rev. 1.0...
  • Page 24 www.glp.de Information Temperatures Shows temperatures Output Limit Shows current output limit Shows master voltage Voltage Shows driver voltage DMX Link Quality Shows Mode, IP Address, TCP/IP Sub Address, MAC Address (hex) Network Ethernet Port Status Shows Ethernet Port Status ArtNet Status Shows ArtNet Status sACN Status Shows sACN Status...

  • Page 25: Dmx Control Modes

    LEDs only or RGB LEDs only. • DMX Mode 2 splits the KNV into a White Strobe and a separate RGB Strobe, each with standard strobe light control channels: Intensity, Flash Rate and Flash Duration.

  • Page 26: Special Notes On The Dmx Tables

    www.glp.de • DMX Modes 6 and 7 give you individual control of 25 separate pixels with 8- or 16-bit resolution. A separate Shutter channel provides strobe, pixel and ramp-up/down effects. This extra shutter affects all the LEDs, both white and RGB, by default, but you can change this setting via the Control / Settings DMX Channel or the fixture’s control panel so that the shutter applies to white LEDs only or to RGB LEDs only.

  • Page 27: Control Channel Layout

    87-89 34.1-34.9% Display Auto* 90-92 35.3-36.1% Display invert Off* 93-95 36.5-37.3% Display invert On* 96-98 37.6-38.4% No DMX = Capture scene* 99-101 38.8-39.6% No DMX = Stand-alone* 102-104 40.0-40.8% No DMX = Blackout* 105-107 41.2-42.0% KNV User Manual Rev. 1.0...
  • Page 28 www.glp.de No DMX = Hold* 108-110 42.4-43.1% Test pattern On* 111-113 43.5-44.3% Test pattern Off* 114-116 44.7-45.5% Rotation Off* 117-119 45.9-46.7% Rotate 90° * 120-122 47.1-47.8% Rotate 180° * 123-125 48.2-49.0% Rotate 270° * 126-128 49.4-50.2% Pixel mirror Off* 129-131 50.6-51.4% Pixel mirror On* 132-134...

  • Page 29: Dmx Mode 2: White Strobe With Fx, Rgb With Fx

    Tilted double lines in to out 63-65 24.7-25.5% Center line running dot 66-68 25.9-26.7% Middle line running dot 69-71 27.1-27.8% Outer line running dot 72-74 28.2-29.0% Corner to corner 75-77 29.4-30.2% Arrow 78-80 30.6-31.4% Wave 81-83 31.8-32.5% Wheel 84-86 32.9-33.7% KNV User Manual Rev. 1.0...
  • Page 30 www.glp.de Half wheel 87-89 34.1-34.9% Circling dot 90-92 35.3-36.1% Outer circle 93-95 36.5-37.3% Inner circle 96-98 37.6-38.4% Outer 4 dots 99-101 38.8-39.6% Outer single dot 102-104 40.0-40.8% Middle single dot 105-107 41.2-42.0% Spinning 2x1 dots 108-110 42.4-43.1% Asymmetrical 4 dots 111-113 43.5-44.3% Symmetrical 4 dots...
  • Page 31 Random strobe - 4 dot mask 18-20 7.1-7.8% Random strobe - 1 dot mask 21-23 8.2-9.0% Lite in/out - all 24-26 9.4-10.2% Lite in/out - circle mask 27-29 10.6-11.4% Lite in/out - 4 dot mask 30-32 11.8-12.6% KNV User Manual Rev. 1.0...
  • Page 32 www.glp.de Lite in/out - 1 dot mask 33-35 12.9-13.7% Snake 36-38 14.1-14.9% Raindrops 39-41 15.3-16.1% Random pixel 42-44 16.5-17.3% Random fake x 2 45-47 17.6-18.4% Random fake x 4 48-50 18.8-19.6% Line 51-53 20.0-20.8% Double line 54-56 21.2-22.0% Corner to corner line 57-59 22.4-23.1% Tilted double lines...
  • Page 33 Green / Magenta 120-129 47.1-50.6% Snap Red / Green / Blue 130-139 51.0-54.5% Snap Red / Yellow / Blue 140-149 54.9-58.4% Snap Red / Green / Blue / Yellow / Snap 58.8%-62.4% Magenta / Cyan 150-159 KNV User Manual Rev. 1.0...
  • Page 34 www.glp.de Red / Green / Blue - Horizontal line 160-169 62.7-66.3% Snap Red / Green / Blue - Vertical line 170-179 66.7-70.2% Snap No function 180-219 70.6-85.9% Snap Color scroll, slow -> fast 220-229 86.3-89.8% Fade Lite in 230-239 90.2-93.7% Snap Lite out 240-249...

  • Page 35: Dmx Mode 3: Rgb Strobe With Fx, White 25-Pixel

    Tilted double lines 60-62 23.5-24.3% Tilted double lines in to out 63-65 24.7-25.5% Center line running dot 66-68 25.9-26.7% Middle line running dot 69-71 27.1-27.8% Outer line running dot 72-74 28.2-29.0% Corner to corner 75-77 29.4-30.2% KNV User Manual Rev. 1.0...
  • Page 36 www.glp.de Arrow 78-80 30.6-31.4% Wave 81-83 31.8-32.5% Wheel 84-86 32.9-33.7% Half wheel 87-89 34.1-34.9% Circling dot 90-92 35.3-36.1% Outer circle 93-95 36.5-37.3% Inner circle 96-98 37.6-38.4% Outer 4 dots 99-101 38.8-39.6% Outer single dot 102-104 40.0-40.8% Middle single dot 105-107 41.2-42.0% Spinning 2x1 dots 108-110...
  • Page 37 Red / Green / Blue - Vertical line 170-179 66.7-70.2% Snap No function 180-219 70.6-85.9% Snap Color scroll, slow -> fast 220-229 86.3-89.8% Fade Lite in 230-239 90.2-93.7% Snap Lite out 240-249 94.1-97.6% Snap 250-255 98.0-100% Snap KNV User Manual Rev. 1.0...
  • Page 38 www.glp.de Channel group B: White 25-pixel White pixel 1 Intensity 0-100% 0-255 0-100% fade White pixel 2 Intensity 0-100% 0-255 0-100% fade White pixel 3 Intensity 0-100% 0-255 0-100% fade White pixel 4 Intensity 0-100% 0-255 0-100% fade White pixel 5 Intensity 0-100% 0-255 0-100%...
  • Page 39 RGB output limitation 80%* 162-164 63.5-64.3% RGB output limitation 60%* 165-167 64.7-65.5% RGB output limitation 40%* 168-170 65.9-66.7% RGB output limitation 20%* 171-173 67.1-67.8% RGB output limitation 10%* 174-176 68.2-69.0% No function 177-251 69.4-98.4% Reboot fixture* 252-255 98.8-100% KNV User Manual Rev. 1.0...

  • Page 40: Dmx Mode 4: White Strobe With Fx, Rgb 25-Pixel

    www.glp.de DMX Mode 4: White strobe with FX, RGB 25-pixel 86 DMX Channels Default Channel Command range Percent Fade Channel group A: White strobe with FX White LEDs dimmer Intensity 0-100% 0-255 0-100% Fade White LEDs flash Flash duration 7-650 ms 0-255 0-100% Fade...
  • Page 41 Rotate 90° ** 135-139 52.9-54.5% Rotate 180° ** 140-144 54.9-56.5% Rotate 270° ** 145-149 56.9-58.4% Horizontal flip ** 150-154 58.8-60.4% Rotate 90° & vertical flip ** 155-159 60.8-62.4% Rotate 180° & horizontal flip ** 160-164 62.7-64.3% KNV User Manual Rev. 1.0...
  • Page 42 www.glp.de Rotate 270° & vertical flip ** 165-169 64.7-66.3% 170-174 66.7-68.2% Random Rotate & flip ** 175-179 68.6-70.2% Random position ** 180-184 70.6-72.2% Fix 90° rotation & random posn. ** 185-189 72.5-74.1% Fix 180° rotation & random posn. ** 190-194 74.5-76.1% Fix 270°...
  • Page 43 Sync double flash slow > fast 110-144 43.1-56.5% Fade Pixel flare effect slow > fast 145-179 56.9-70.2% Fade Random strobe slow > fast 180-214 70.6-83.9% Fade Sync strobe 0.289 > 16.67 Hz 215-249 84.3-97.6% Fade KNV User Manual Rev. 1.0...
  • Page 44 www.glp.de Hyperspeed 250-252 98.0-98.8% Snap Open Snap 99.2-100% 253-255 Control / Settings Idle 0-11 0-4.3% Snap No function 12-38 4.7-14.9% Dimmer flash Off* 39-41 15.3-16.1% Dimmer flash On* 42-44 16.5-17.3% No function 45-47 17.6-18.4% Dimming curve Soft* 48-50 18.8-19.6% Dimming curve Linear* 51-53 20.0-20.8% No function...

  • Page 45: Dmx Mode 5: Multi-Layer Rgbw With Fx

    Snake 36-38 14.1-14.9% Raindrops 39-41 15.3-16.1% Random pixel 42-44 16.5-17.3% Random fake x 2 45-47 17.6-18.4% Random fake x 4 48-50 18.8-19.6% Line 51-53 20.0-20.8% Double line 54-56 21.2-22.0% Corner to corner line 57-59 22.4-23.1% KNV User Manual Rev. 1.0...
  • Page 46 www.glp.de Tilted double lines 60-62 23.5-24.3% Tilted double lines in to out 63-65 24.7-25.5% Center line running dot 66-68 25.9-26.7% Middle line running dot 69-71 27.1-27.8% Outer line running dot 72-74 28.2-29.0% Corner to corner 75-77 29.4-30.2% Arrow 78-80 30.6-31.4% Wave 81-83 31.8-32.5%...
  • Page 47 Red / Green / Blue - Vertical line 170-179 66.7-70.2% Snap No function 180-219 70.6-85.9% Snap Color scroll, slow -> fast 220-229 86.3-89.8% Fade Lite in 230-239 90.2-93.7% Snap Lite out 240-249 94.1-97.6% Snap 250-255 98.0-100% Snap KNV User Manual Rev. 1.0...
  • Page 48 www.glp.de Channel group C: Layer 3 RGBW strobe with FX (high priority, true color) Layer 3 = transparent 0-0.4% Snap Layer 3 master Layer 3 intensity 0-100% 2-65535 0.8-100% Fade Layer 3 flash 7-650 ms 0-255 0-100% Fade duration No flash 0-0.4% Snap Single flash if Dimmer Flash = ON...
  • Page 49 Rotate 270° ** 145-149 56.9-58.4% Horizontal flip ** 150-154 58.8-60.4% Rotate 90° & vertical flip ** 155-159 60.8-62.4% Rotate 180° & horizontal flip ** 160-164 62.7-64.3% Rotate 270° & vertical flip ** 165-169 64.7-66.3% 170-174 66.7-68.2% KNV User Manual Rev. 1.0...
  • Page 50 www.glp.de Random Rotate & flip ** 175-179 68.6-70.2% Random position ** 180-184 70.6-72.2% Fix 90° rotation & random posn. ** 185-189 72.5-74.1% Fix 180° rotation & random posn. ** 190-194 74.5-76.1% Fix 270° rotation & random posn. ** 195-199 76.5-78.0% 200-204 78.4-80.0% Bounce **...
  • Page 51 RGB output limitation 80%* 162-164 63.5-64.3% RGB output limitation 60%* 165-167 64.7-65.5% RGB output limitation 40%* 168-170 65.9-66.7% RGB output limitation 20%* 171-173 67.1-67.8% RGB output limitation 10%* 174-176 68.2-69.0% No function 177-251 69.4-98.4% Reboot fixture* 252-255 98.8-100% KNV User Manual Rev. 1.0...

  • Page 52: Dmx Mode 6: Rgbw 25-Pixel, 8-Bit

    www.glp.de DMX Mode 6: RGBW 25-pixel, 8-bit 102 DMX Channels Default Channel Command range Percent Fade RGBW 25-pixel 8-bit Red intensity 0-100% 0-255 0-100% Fade Green intensity 0-100% 0-255 0-100% Fade Pixel 1 RGBW Blue intensity 0-100% 0-255 0-100% Fade White intensity 0-100% 0-255 0-100%...
  • Page 53 Sync ramp down slow > fast 40-74 15.7-29.0% Fade Shutter, all pixels Sync ramp up-down slow > fast 75-109 29.4-%42.7 Fade Sync double flash slow > fast 110-144 43.1-56.5% Fade Pixel flare effect slow > fast 145-179 56.9-70.2% Fade KNV User Manual Rev. 1.0...
  • Page 54 www.glp.de Random strobe slow > fast 180-214 70.6-83.9% Fade Sync strobe 0.289 > 16.67 Hz 215-249 84.3-97.6% Fade Hyperspeed 250-252 98.0-98.8% Snap Open 253-255 99.2-100% Snap Control / Settings Idle 0-11 0-4.3% Snap No function 12-38 4.7-14.9% Dimmer flash Off* 39-41 15.3-16.1% Dimmer flash On*...

  • Page 55: Dmx Mode 7: Rgbw 25-Pixel, 16-Bit

    Fade Red intensity fine Green intensity coarse 0-65535 0-100% Fade Green intensity fine Pixel 6 RGBW (16-bit) Blue intensity coarse 0-65535 0-100% Fade Blue intensity fine White intensity coarse 0-65535 0-100% Fade White intensity fine KNV User Manual Rev. 1.0...
  • Page 56 www.glp.de Red intensity coarse 0-65535 0-100% Fade Red intensity fine Green intensity coarse 0-65535 0-100% Fade Pixel 7 RGBW Green intensity fine (16-bit) Blue intensity coarse 0-65535 0-100% Fade Blue intensity fine White intensity coarse 0-65535 0-100% Fade White intensity fine Red intensity coarse 0-65535 0-100%...
  • Page 57 Fade Red intensity fine Green intensity coarse 0-65535 0-100% Fade Pixel 20 RGBW Green intensity fine (16-bit) Blue intensity coarse 0-65535 0-100% Fade Blue intensity fine White intensity coarse 0-65535 0-100% Fade White intensity fine KNV User Manual Rev. 1.0...
  • Page 58 www.glp.de Red intensity coarse 0-65535 0-100% Fade Red intensity fine Green intensity coarse 0-65535 0-100% Fade Pixel 21 RGBW Green intensity fine (16-bit) Blue intensity coarse 0-65535 0-100% Fade Blue intensity fine White intensity coarse 0-65535 0-100% Fade White intensity fine Red intensity coarse 0-65535 0-100%...
  • Page 59 RGB output limitation 80%* 162-164 63.5-64.3% RGB output limitation 60%* 165-167 64.7-65.5% RGB output limitation 40%* 168-170 65.9-66.7% RGB output limitation 20%* 171-173 67.1-67.8% RGB output limitation 10%* 174-176 68.2-69.0% No function 177-251 69.4-98.4% Reboot fixture* 252-255 98.8-100% KNV User Manual Rev. 1.0...

  • Page 60: Cleaning And Maintenance

    www.glp.de 10. Cleaning and maintenance WARNING! Any service operation that requires removal of a cover must be performed by a professional service technician with the tools, skills, and personal protective equipment to maintain high-powered lighting equipment safely and efficiently. Suggested maintenance intervals The cleaning schedule depends on the operating environment.

  • Page 61: Technical Specifications

    DMX channel footprint: 10 / 23 /40 / 86 / 35/ 102 / 202 depending on mode Pixel mapping options: 25 x white pixels, 25 x RGB pixels, 25 x RGBW pixels Onboard interface: Battery-powered control panel with backlit LCD graphic display KNV User Manual Rev. 1.0...

  • Page 62: Installation

    Adjustable Floorstand-Bracket (supplied with fixture): Can support one KNV Cube suspended vertically, can be used as floorstand for KNV Cube Installation Bracket: Can support up to four KNV Cube fixtures suspended vertically from rigging clamp or support creative combinations of Cube and/or Arc fixtures...

  • Page 63: Accessories

    KNV Cube and Arc Fixed Installation Bracket, black KNV Cube and Arc Quick Module Connector kit, black (for fixture interlocking) KNV Cube and Arc Rigging Connector, black (allows up to four fixtures to be flown from rigging clamp) KNV CC (Cube-to-Cube) Connector Plate for fixture alignment, includes four M6 x 10...

  • Page 64: Dimensions

    12. Dimensions KNV Cube User Manual Rev. 1.0...

  • Page 65: Knv Arc

    German Light Products® KNV Arc KNV User Manual Rev. 1.0...
