Summary of Contents for Livoo DV149
- Page 1 User manual Portable multimedia player projector Reference: DV149 Version: Language: English WWW.LIVOO.FR...
-
Page 2: Safety Advices

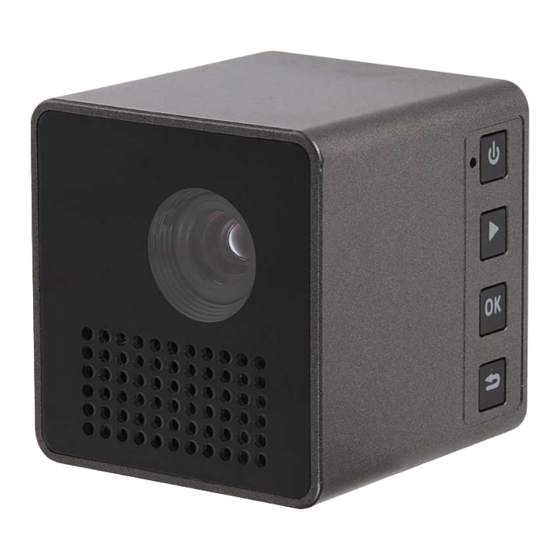

User manual You have purchased a product LIVOO brand and we thank you. We take great care in design, ergonomics and ease of use of our products. We hope that this product will give you complete satisfaction. This instruction manual is also available on our website www.livoo.fr... - Page 3 User manual Product Details: 1 Lens Power on/off To right /to down Okay Exit/Esc 6 Thermovent Interfaces: 1: Focus Handle 2: TF card 3: Earphone 4: 5V 2A input (Connect to USB devices through USB transferred cable) Note: please use standard 5V 2A adaptor, or it will impact projector stability. Keyboard Power on/off To right or down to choose...
-
Page 4: Product Connection
User manual Power off: Long press the button of power (about 6-7 seconds), projector is off. Specifications: Model N.W. Image System Lamp RGB LED Brightness 25 ansi lumes Contrast Ratio 800:1. Resolution 640*360 Power Supply 5V-2A 3,5mm Output earphone Product Size 46*47*48MM Lamp Life 20000 hours... - Page 5 User manual Main Interface on the projector to choose relevant Press icon and press to enter into submenu as left pic showed. Multimedia Boot Screen Enter into the file you save in the submenu of video. to choose the one you need, Press button of press button of to display.
- Page 6 User manual Multimedia Screen Press button of to enter into submenu of Multimedia (Video/Music/Photo/Txt). Press button of to choose relevant function icon. Press to display. Available setting item are: Video, Music, Photo and Txt. Details as below: Play / Pause Previous / Next FB / FF Turn...
-
Page 7: Wireless Connection
User manual To up / To down To left / To right Zoom in / Zoom out Photo info Clicking x” to close WIRELESS CONNECTION Android/iOS/Window system connected with the projector In main interface, press button choose Wi-Fi (EZCast) function icon, press button of to enter into submenu as left pic shows. - Page 8 User manual Projection by connecting to router Use Ezcast software when in mobile, laptop or computer system end. Projection by connecting to router can enhance the internet signal. Click to enter into interface “1” “2” Click button on the right top corner to enter “3” Choose the name begin with Uni-LINK interface...
- Page 9 User manual Then choose button on the left top corner to enter To find the Wi-Fi name by mobile remote to into “4” interface to choose setting to enter “5” connect successfully as above pic. interface Router connection interface in projector...
- Page 10 User manual Choose your router wifi name to connect successfully (Complete SYNC setting) Note : For function of « help » just can be used in mobile Wi-Fi connection as pic. HOW TO USE WIFI DISPLAY -Then it will come out begin with Uni-Link device - Upslide to open iOS notification center as interface.
- Page 11 User manual Note: With screen and push of iOS device do not need Ezcast APP. Android and PC end device need use Ezcast app to complete same screen and push function. Note: For function of « help » just can be used in mobile Wi-Fi connection as right pic showed.
- Page 12 User manual IOS DEVICE WIRED WITH THE SCREEN FUNCTION OPERATION GUIDE 1. Connect one end of the USB data cable to the Ios device, the other connect to USB on the projector. (Note: Please use the original date cable.) 2. After projector is powered on, choose “EZWire” to enter. Note: Make sure the projector remains on this page throughout the connection.
-
Page 13: Operation Guide
User manual 5. If the cable does not work with the screen (that is, the contents of the Ios device not projection to the projector), then upslide it under the main screen of the Ios device, bring up the “Control Center” menu, select the airplay mirror, wait for the search to the projector network address and select, Wait for the Ios device to cast the screen to the projector, If you have previously linked wifi with the screen function of the device, please turn off wifi function to avoid entering wifi wireless with the screen function,... - Page 14 User manual Note: Make sure the projector remains on this page throughout the connection. 3. Android device first scan QR code in the EZWire menu on the projector, download and install the EZCAST application, or search the EZCAST application in the app store, then download and install it. 4.
- Page 15 User manual 5. “EZCast” Setting Procedure (Please follow the options marked in the red box) Press button, pop up setting interface, Click on the first red box icon of “connect”, enter into “USB debugging”. 2) Return to the previous interface,Click on the second red box icon of “connect” ,enter into “USB Tethering”.
- Page 16 User manual 3) After the previous two steps “Connect” settings are complete, EZCAST app will jump to the main interface (if it is not jump to the main interface, please manually return to on the red box icon in the APP main interface as right pic shows. 4) Then it will come out projector device name begin with Uni-LinkX.
- Page 17 User manual 5) Waiting until jump to below interface as shows, then device connected successfully. If you need the same screen with picture or video, select the corresponding media to enter and select the file to open to complete the same screen function. 6) After the previous settings are complete, you can also open the mirror in the APP (The phone interface can be displayed in the same screen in projector)
- Page 18 User manual...
- Page 19 BP61071 67452 Mundolsheim – France Herewith declare under our sole responsibility, that the radio equipment Portable multimedia player projector DV149 (Frequency range 2400MHz-2483.5MHz) Fulfils the essential requirements of the RED Directive 2014/53/EU The following standards were applied: Radio: ETSI EN 300 328 V2.1.1 (2016-11) EMC: ETSI EN 301 489-1 V2.2.0 (2017-03)
- Page 20 The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product. LIVOO BP 61071 •...
