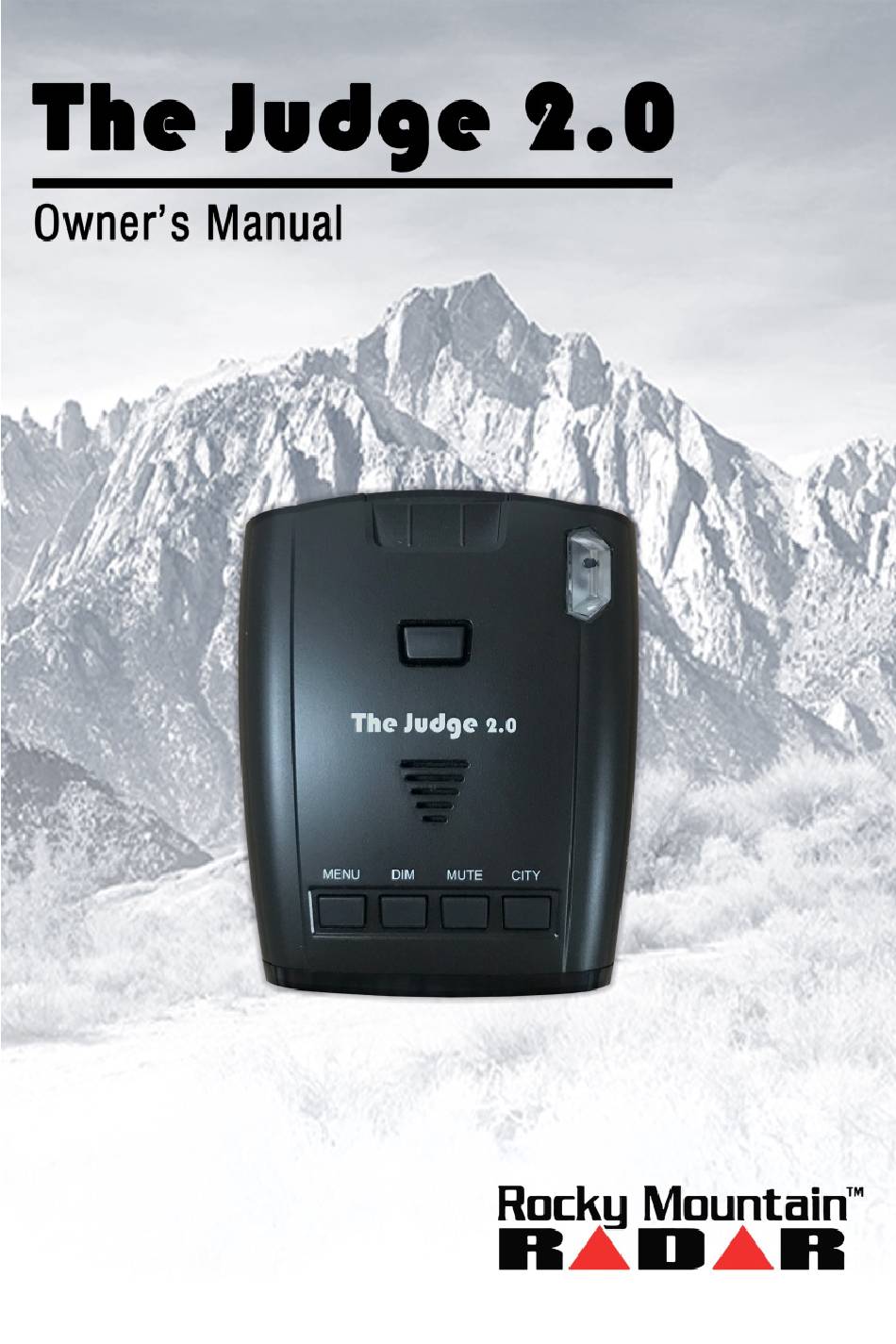

- Page 1 The Judge 2.0 Radar and Laser Detector Radar and Laser Scrambler Owner’s Manual Rocky Mountain Radar...
-
Page 2: Specifications
Specifications: Radar & Laser Detector: Frequencies: 10.525 GHz 24.125 GHz 33-36 GHz 904 Nano-meter Sensitivity: X - 110 Dbm K -124 Dbm Ka wide - 124 Dbm Laser < 200 nano-watt Alarm: Separate for each Band Variable alarm for Range Controls: Menu, Volume, On/Off, Voice, Language, Tone, Dim, Mute,... - Page 3 The Judge 2.0 is the result of Rocky Mountain Radar’s commitment to provide you, our valued customer, with the most innovative technologically advanced radar and laser detectors on the market.
- Page 4 The screen is clearly visible in all lighting conditions, so you don’t lose focus in any way from the road. Undetectable to Police: (detector detectors) The Judge 2.0 radar detector and laser detector incorporates a Monolithic Microwave Integrated Circuit (MMIC), which reduces internal signals from leaking out...
-
Page 5: Warranty
WARRANTY: This unit (The Judge 2.0) comes with a 3-year (36 month) warranty. Must Have Proof of Purchase Speeding ticket rebate: This unit comes with a 1 year of the Speeding Ticket Protection Program. - Page 8 Mounting the Unit: 1.) Place the suction cups on the windshield bracket. 2.) Place the windshield bracket into The Judge 2.0. Align the edge of the bracket with the slot opening on the front of the case. Gently slide the bracket into the case while pressing the bracket release button until it locks into place.
- Page 9 To prevent damage to the unit you must press the release button to release windshield mount before pulling it out. 3.) Clean the windshield before you mount the unit for better results. Place the windshield bracket in the upper center portion of the windshield. The ideal position will be right below the rear view mirror.
- Page 10 When changing the Settings on your detector, please keep in mind: • Buttons have multiple functions. • All current settings will be stored in memory. Controls: There are 4 buttons on top of The Judge 2.0, Menu, Dim, Mute and City.
- Page 11 Mute or City button to change the setting. Note: If no button is pressed for approximately 10 seconds The Judge 2.0 will automatically “Exit” the Menu mode. The Menu items are: 1.) Voice On/Off 2.) Language Mode English/ Spanish...
- Page 12 Please check your state and local laws and regulations of this product. Rocky Mountain Radar does not condone the use of excessive speed on the highways, nor does it endorse breaking the speed limit laws of the United States of America.
- Page 13 X Band on, K Band on, Ka Band on, Laser on, K Wide, Ka Wide. Self-Test Mode: Begins right after the start message “Rocky Mountain Radar” detection alarms with signal strength will be displayed along with the user preferred activated settings-scrambler test, voice, language and...
- Page 14 When all 5 arrows and the number 5 are displayed the signal is at the strongest level. VG-2, VG-3 and Spectre: The Judge 2.0 is 100% Undetectable. On The Judge 2.0 the new MMIC prevents detection of the radar detector completely.
- Page 15 The Judge 2.0 features K Narrow and K wide mode. K Wide operates at full detection strength. K Narrow is a very useful feature, where the frequency range swept in the K-band region is reduced and more centered around a tuned police radar gun.
-
Page 16: How Does It Work
Full Laser coverage using asynchronous pulse position modulation to confuse the lidar computer. How does it work? The Rocky Mountain Radar scramblers are full-featured radar and laser scramblers combining active laser and passive radar scrambling capabilities. The radar scrambling circuit mixes Pseudo Random Digital Noise Generator (PRDNS) with the incoming police radar signal and reflects it back to the radar gun. - Page 17 It sends out several more pulses and calculates your speed from the change in distance over time. The Rocky Mountain Radar scramblers only allow the Lidar to see up to 100 feet so it...
- Page 18 All Scramblers are factory set to the off Position: Scrambler: To turn the scrambler on/off: Note: If no button is pressed for approximately 10 seconds The Judge 2.0 will automatically “Exit” the Menu mode. 1. Press and hold the Menu button approximately 3-5 seconds or until “MENU”...
- Page 19 Limited Warranty The manufacturer warrants The Judge 2.0 against all defects in materials and workmanship for the period of 36 months from the date of the original purchase, subject to the following terms and conditions: The sole responsibility of the manufacturer under the Warranty period is limited to either repair or, at the option of the manufacturer, replacement of The Judge 2.0.
- Page 20 Accessories: The following accessories and parts are available: Windshields mount Suction Cups (set of 3) 2 amp fuses (two each) Power Cord Replacement Owner’s Manual Carrying Case (Free manual online download from our website) A $10.00 shipping and handling fee will be added to the total of each order.
- Page 21 The laser scrambler transmits a series of light pulses. There are no laws regarding the transmission of invisible light. Rocky Mountain Radar does not condone the use of excessive speed on the highways, nor does it endorse breaking the speed limit laws of the United States of America.
- Page 22 Can the police detect it? The radar and laser scramblers do not have RF emissions and cannot be detected. On The Judge 2.0 the new MMIC prevents detection of the radar detector completely. What states are they NOT legal in?
- Page 23 What is Punch-Through? The signal reflected by the car gets stronger the closer the target is to the radar gun. The Rocky Mountain Radar scrambler uses the radar signal as a carrier and reflects it through a high-gain antenna. It will work only as long as the scrambling signal is greater than the signal from the target.
- Page 24 Why won’t my unit turn on? Check the following: The on/off thumbwheel on the side of the unit The fuse in the power cord. (To check the fuse in the power cord, unscrew the silver tip end that plugs into the cigarette lighter. If the fuse is blown, replace with a 2 amp fast burning fuse).
- Page 25 What is the (EWD) K Filter? The EWD is a K filter that The Judge 2.0 has to help prevent false alarms caused by some safety features in newer vehicles, for example Blind-spot/side-assist/anti- collision warning and other safety technology that operate in K Band.
- Page 26 What is the difference between K/Ka Narrow/ Wide? When on Wide mode the unit will pick up all signals around; some may be false signals from buildings or other vehicles. Since these signals are valid signals the detector will display them as detection. On Narrow mode the unit will shorten slightly the distance and reduce the false alarms.
- Page 27 It does not cover insurance costs or other incidental costs. Rocky Mountain Radar administers the program. Rocky Mountain Radar shall not be liable for direct, indirect, incidental or consequential damages from participation in this program.
- Page 28 Rocky Mountain Radar does not endorse excessive speeds over the posted limit. Please drive carefully. To ensure prompt processing of claims, be sure to enclose all required documents. All claims are verified through the court systems and may take up to eight weeks to process.
- Page 29 CONDITIONS OF TICKET REBATE PROGRAM To qualify for the ticket rebate program: 1. Must have proof of purchase. 2. Verified owner of a radar and laser scrambler product does not exceed 15 miles per hour OR 30% over the posted speed limit, whichever is less.
- Page 30 LIMITS The one year laser ticket rebate program covers speeding tickets that do not exceed 15 MPH or 30% over the posted limit whichever is less. Please use the chart to determine whether you have a claim.
-
Page 31: How To File A Claim
If it does not have the address and telephone number please include with proof of purchase. 2. Legible copy of ticket (both sides). 3. Legible copy of court receipt as proof of payment. 4. Court address. To: Rocky Mountain Radar 6469 Doniphan Drive El Paso, Texas 79932... - Page 32 Rocky Mountain Radar 6469 Doniphan Drive El Paso, Texas 79932 (915)587-0307 Phone (915)587-6408 Fax Follow us on Facebook www.rockymountainradar.com...
