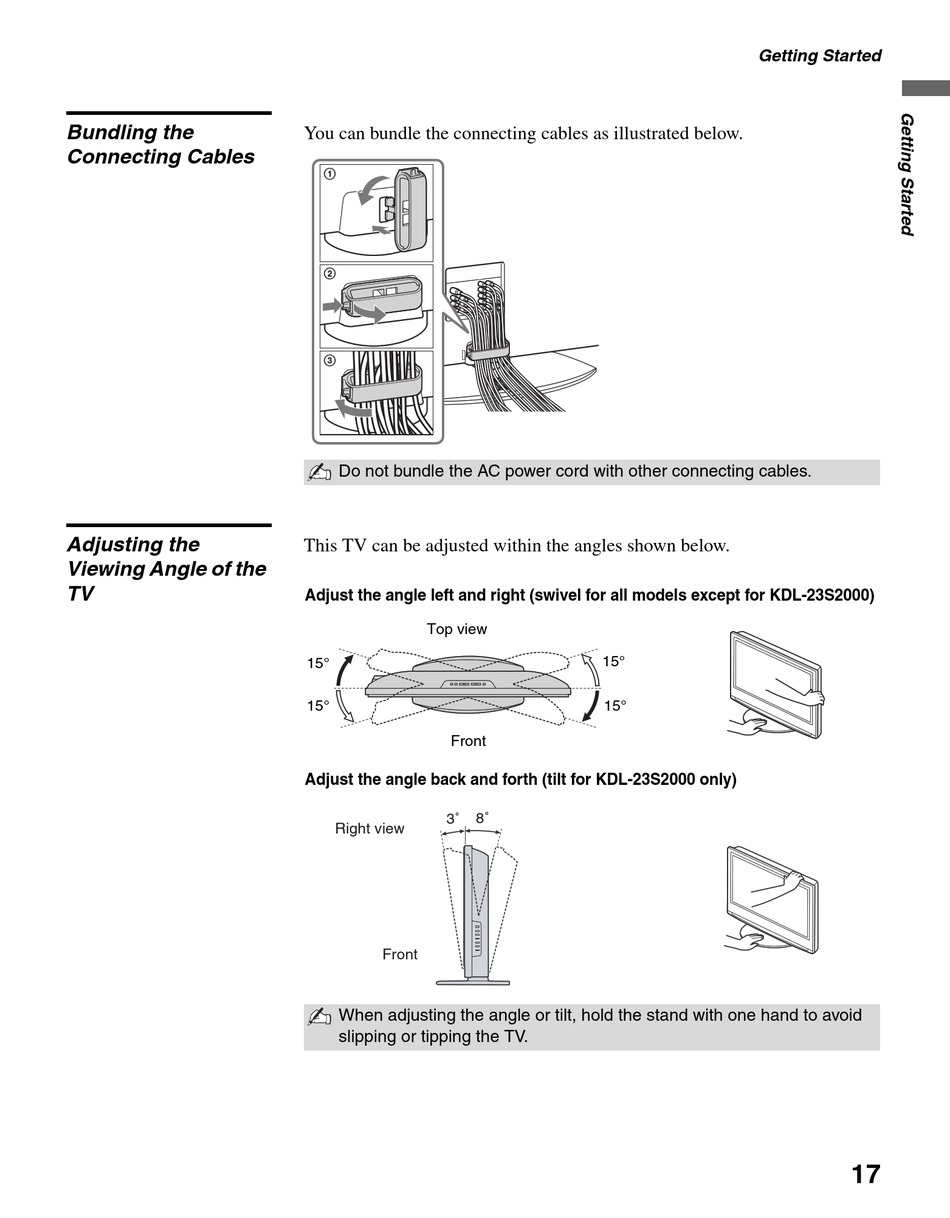

Bundling the
Connecting Cables
Adjusting the
Viewing Angle of the
TV
You can bundle the connecting cables as illustrated below.
1
2
3
Do not bundle the AC power cord with other connecting cables.
This TV can be adjusted within the angles shown below.
Adjust the angle left and right (swivel for all models except for KDL-23S2000)
Top view
15°
15°
Front
Adjust the angle back and forth (tilt for KDL-23S2000 only)
3˚ 8˚
Right view
Front
When adjusting the angle or tilt, hold the stand with one hand to avoid
slipping or tipping the TV.
Getting Started
15°
15°
17
