CONFIGURATION JUMPERS

9.0
9.1

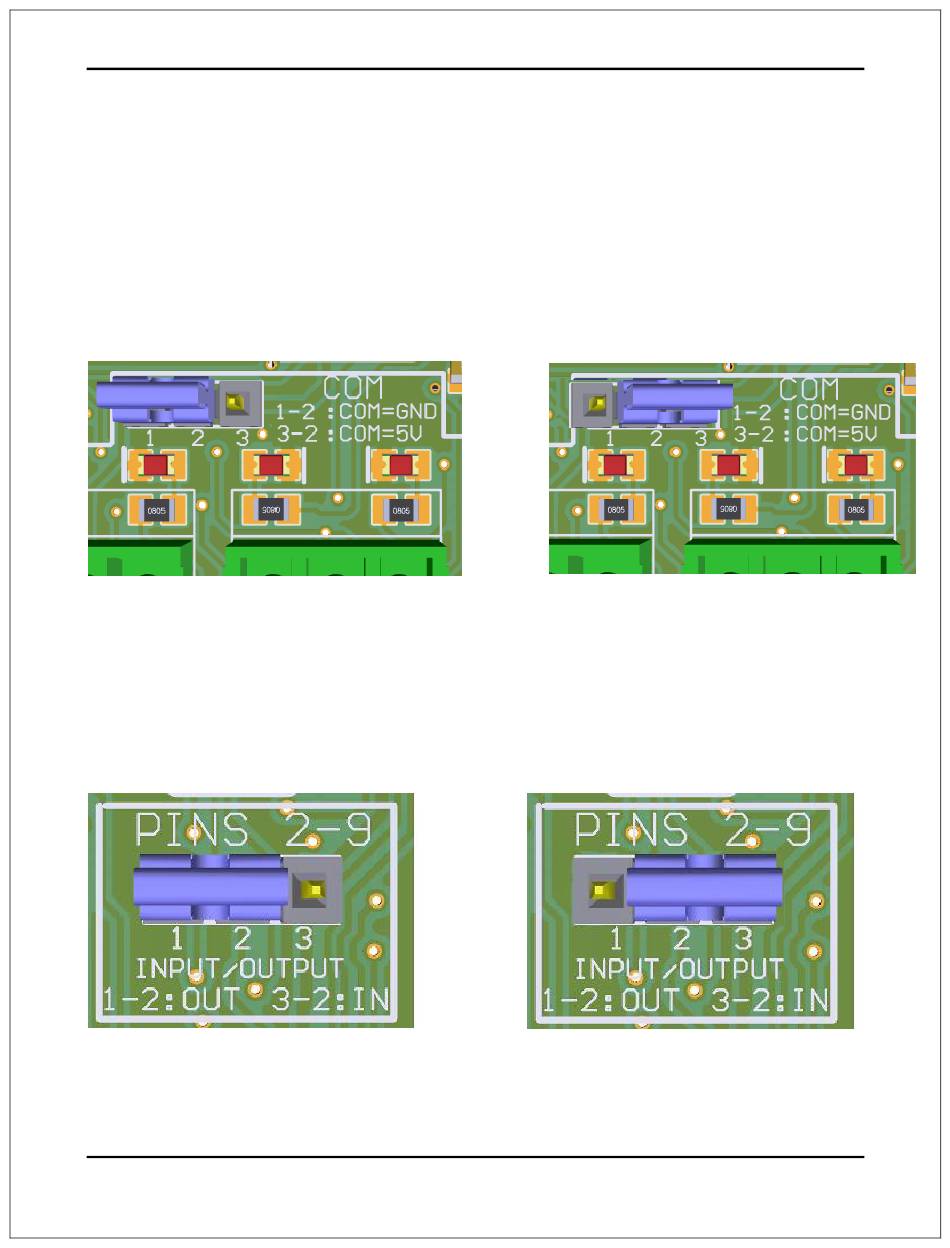

Using the COM configuration jumper

The COM terminal can be +5vdc or GND.
1-2: COM= GND
9.2

Using the Pins 2-9 direction jumper

There is a jumper to select the pins 2-9 direction.
1-2: OUTPUTS
User's Manual
2-3: COM= +5VDC
2-3: INPUTS
