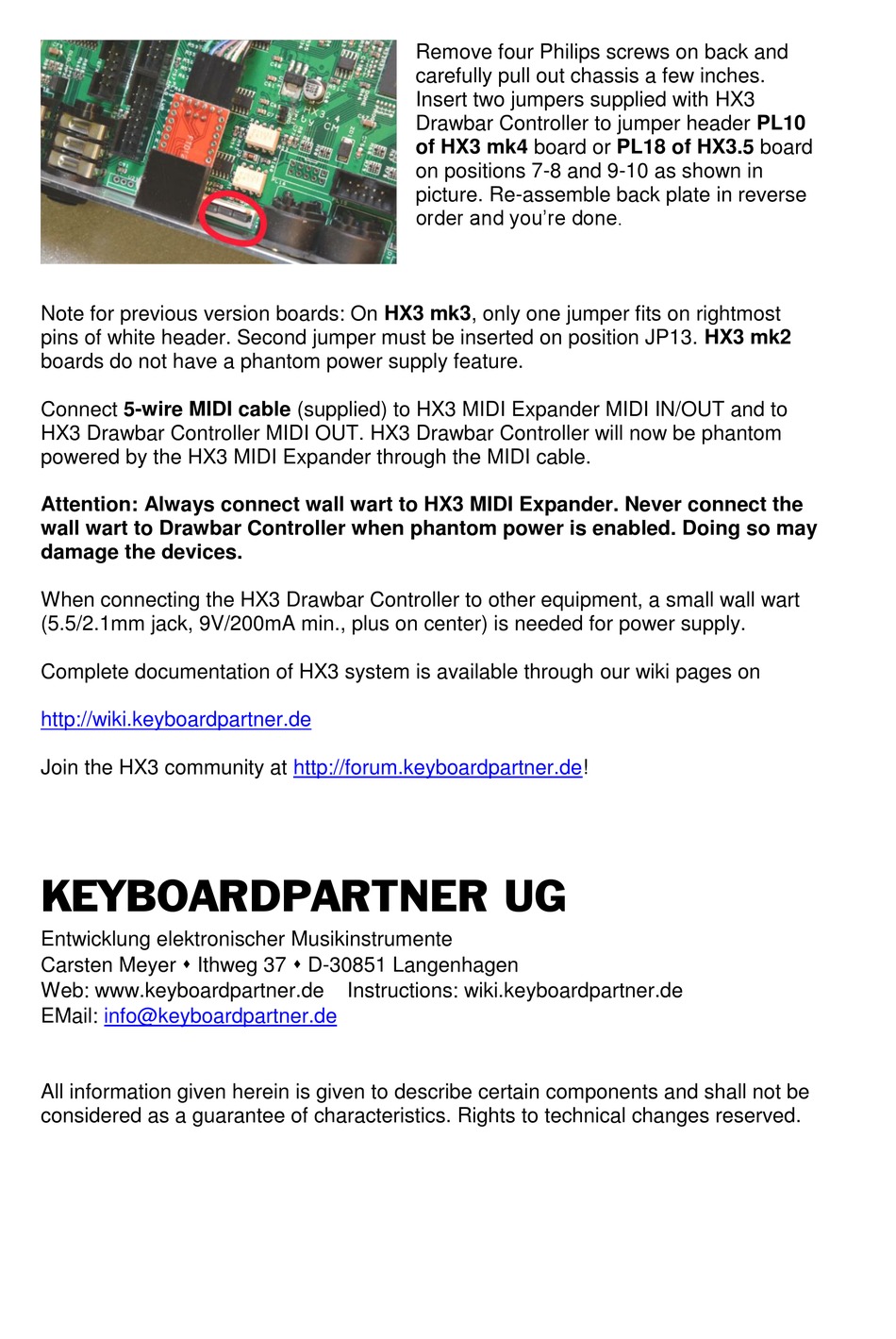

KEYBOARDPARTNER HX3 Drawbar Controller User Manual page 5

Note for previous version boards: On HX3 mk3, only one jumper fits on rightmost
pins of white header. Second jumper must be inserted on position JP13. HX3 mk2
boards do not have a phantom power supply feature.
Connect 5-wire MIDI cable (supplied) to HX3 MIDI Expander MIDI IN/OUT and to
HX3 Drawbar Controller MIDI OUT. HX3 Drawbar Controller will now be phantom
powered by the HX3 MIDI Expander through the MIDI cable.
Attention: Always connect wall wart to HX3 MIDI Expander. Never connect the
wall wart to Drawbar Controller when phantom power is enabled. Doing so may
damage the devices.
When connecting the HX3 Drawbar Controller to other equipment, a small wall wart
(5.5/2.1mm jack, 9V/200mA min., plus on center) is needed for power supply.
Complete documentation of HX3 system is available through our wiki pages on
http://wiki.keyboardpartner.de
Join the HX3 community at http://forum.keyboardpartner.de!
KEYBOARDPARTNER UG
Entwicklung elektronischer Musikinstrumente
Carsten Meyer  Ithweg 37  D-30851 Langenhagen
Web: www.keyboardpartner.de
EMail: info@keyboardpartner.de
All information given herein is given to describe certain components and shall not be
considered as a guarantee of characteristics. Rights to technical changes reserved.
Remove four Philips screws on back and
carefully pull out chassis a few inches.
Insert two jumpers supplied with HX3
Drawbar Controller to jumper header PL10
of HX3 mk4 board or PL18 of HX3.5 board
on positions 7-8 and 9-10 as shown in
picture. Re-assemble back plate in reverse
order and you're done.
Instructions: wiki.keyboardpartner.de
