HD Video Capture

Quick Start Guide

Thanks for purchasing ezcap286 HD Video Capture. The following guides you how to set up. Hope
this device will bring you nice digital experience.
With this ezcap286 HD Video Capture, you can capture up to 1080P video from HD camera with
HDMI or SDI port.

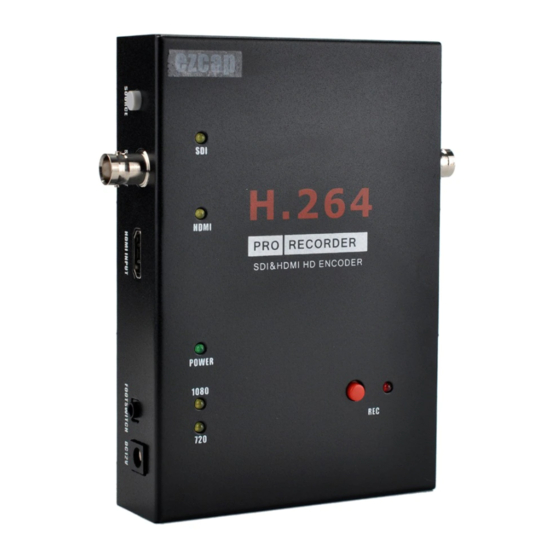

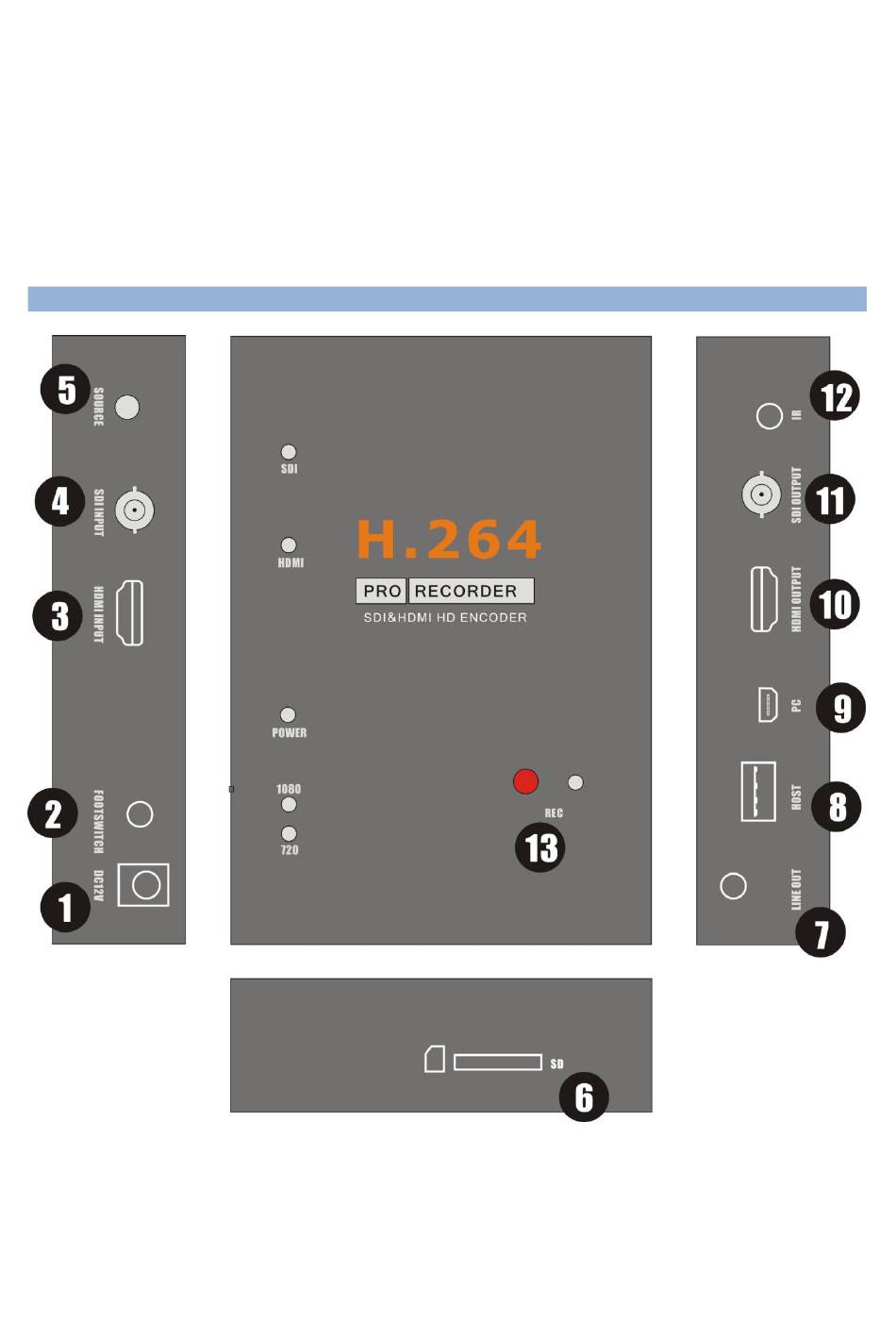

Features/ports and buttons:
1. PWR—DC 12V power supply.
2. FOOTSWITCH—3.5mm port to connect footswitch to capture video.
3 HDMI INPUT—HDMI input.
4 SDI INPUT—SDI input.
