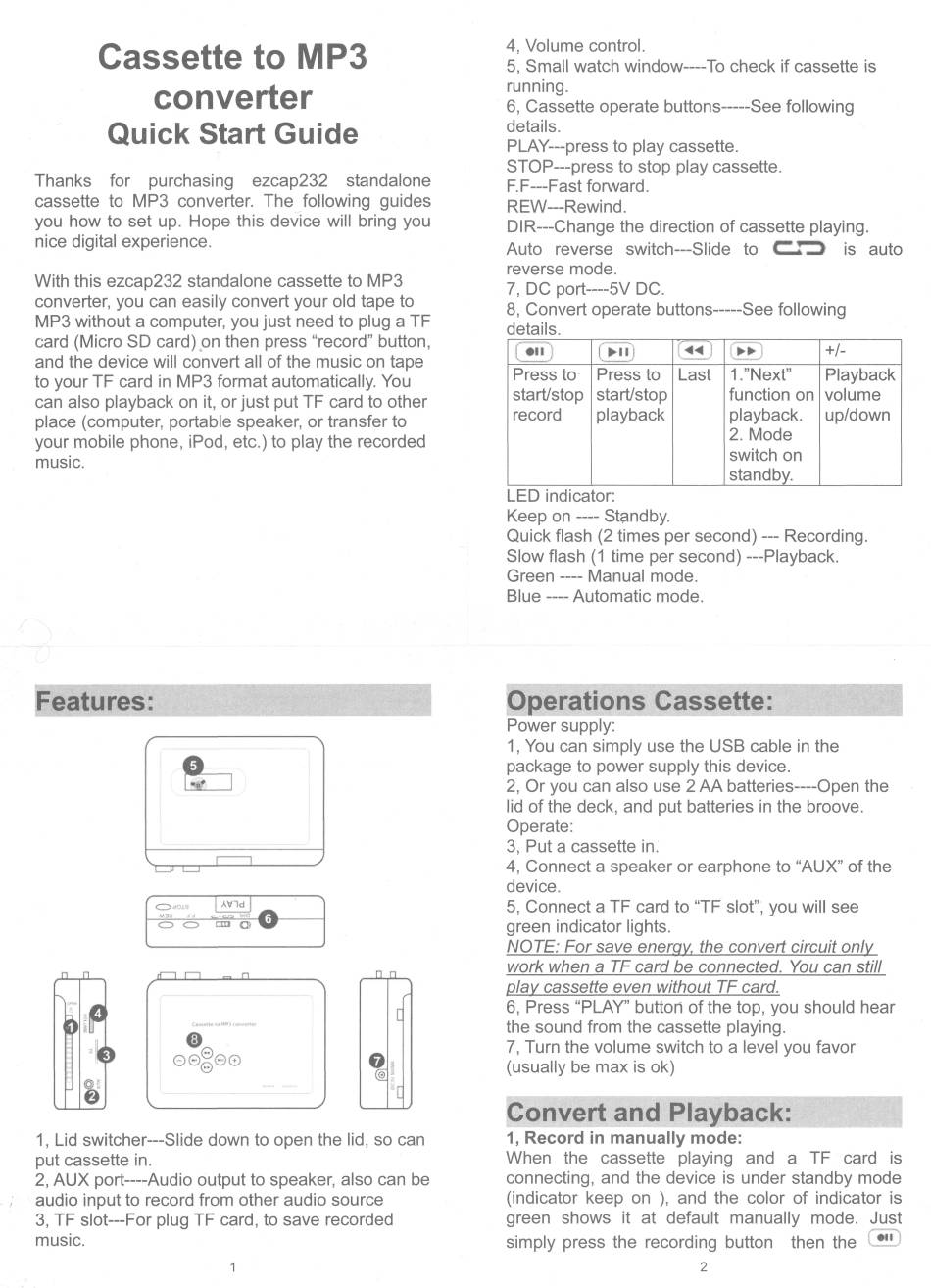

EzCAP ezcap232 Quick Start Manual

Cassette to MP3
converter
Quick Start Guide
Thanks for purchasing ezcap232 standalone
cassette to MP3 converter. The following guides
you how to set up. Hope this device will bring you
nice digital experience.
With this ezcap232 standalone cassette to MP3
converter, you can easily convert your old tape to
MP3 without a computer, you just need to plug a TF
card (Micro SD card) .on then press "record" button,
and the device will convert all of the music on tape
to your TF card in MP3 format automatically. You
can also playback on it, or just put TF card to other
place (computer, portable speaker, or transfer to
your mobile phone, iPod, etc.) to play the recorded
music.
Features:
@ t
@
=· ·
t.'l~
f
~
==
C)
e
00 80
e
1, Lid switcher---Slide down to open the lid, so can
put cassette in.
2, AUX port----Audio output to speaker, also can be
audio input to record from other audio source
3, TF slot---For plug TF card, to save recorded
music.
4, Volume control.
5, Small watch window----To check if cassette is
running.
6, Cassette operate buttons-----See following
details.
PLAY---press to play cassette.
STOP---press to stop play cassette.
F.F---Fast forward.
REW---Rewind.
DIR---Change the direction of cassette playing.
Auto reverse switch---Slide to
C:.."'::>
is auto
reverse mode.
7, DC port----5V DC.
8, Convert operate buttons-----See following
details.
C •iD
c ~•• ;
~
(
..
:
..
)
+/-
Press to Press to Last
1."Next"
Playback
start/stop start/stop function on volume
record playback playback.
up/down
2. Mode
switch on
standby.
LED indicator:
Keep on ---- Standby.
Quick flash (2 times per second) --- Recording.
Slow flash (1 time per second) ---Playback.
Green ---- Manual mode.
Blue ---- Automatic mode.
Operations Cassette:
Power supply:
1, You can simply use the USB cable in the
package to power supply this device.
2, Or you can also use 2 AA batteries----Open the
lid of the deck, and put batteries in the broove.
Operate:
3, Put a cassette in.
4, Connect a speaker or earphone to "AUX" of the
device.
5, Connect a TF card to 'TF slot", you will see
green indicator lights.
NOTE: For save energy, the convert circuit only
work when a TF card be connected. You can still
play cassette even without TF card.
6, Press "PLAY" button of the top, you should hear
the sound from the cassette playing.
7, Turn the volume switch to a level you favor
(usually be max is ok)
Convert and Playback:
1, Record in manually mode:
When the cassette playing and a TF card is
connecting, and the device is under standby mode
(indicator keep on ), and the color of indicator is
green shows it at default manually mode. Just
simply press the recording button then the
~
