Summary of Contents for Cybernetyx EyeRIS IX Series

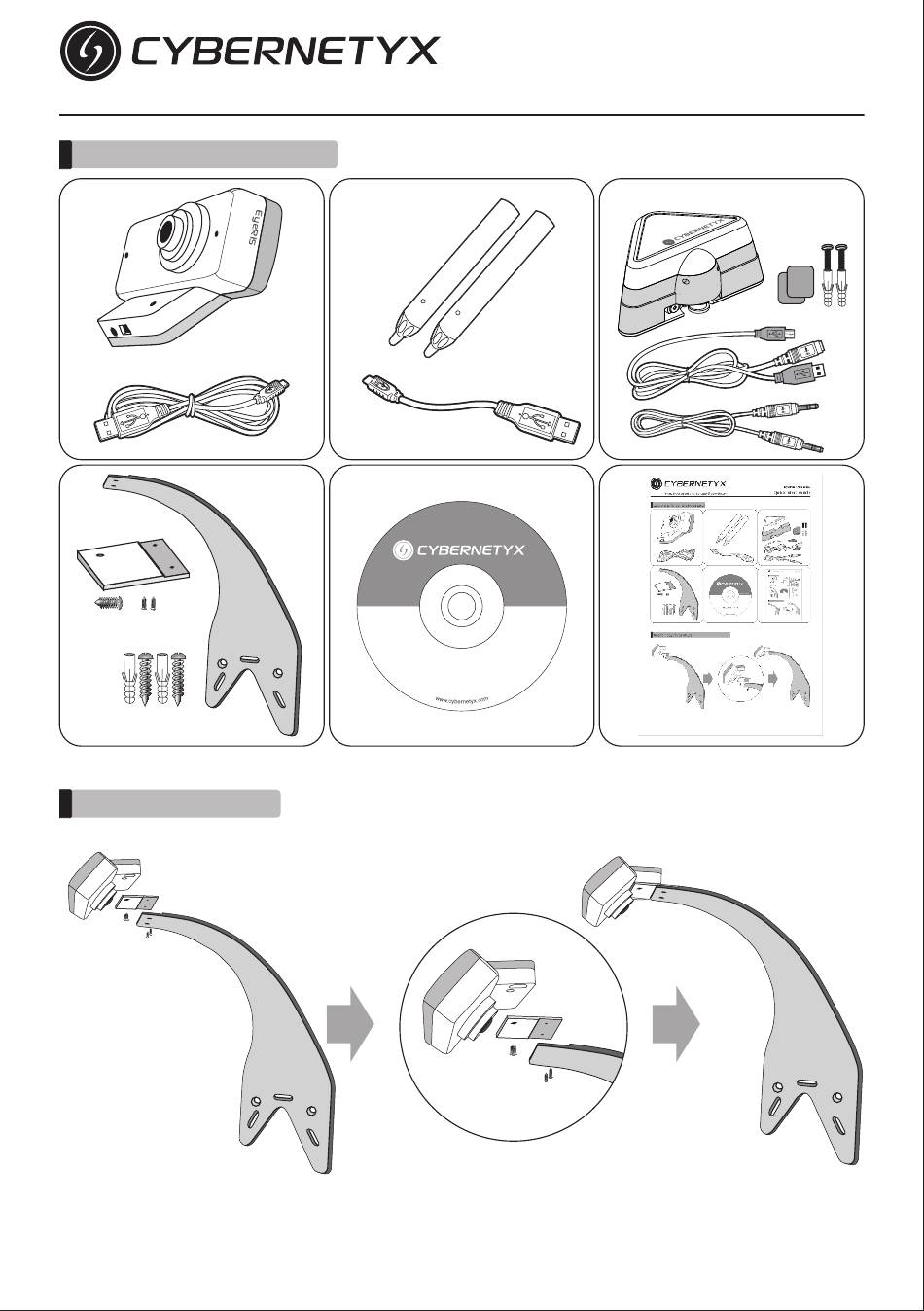

- Page 1 EyeRIS IX-Series Quick Start Guide For any further support e-mail us: support@cybernetyx.com Components for Standard Mount Setup Freude an Technik EyeRIS v3.1 Assembling EyeRIS on Mount...
- Page 2 Installing EyeRIS Standard Mount on whiteboard 1. Measure and mark center & top point of whiteboard as shown below: 2. Place EyeRIS mount & mark the holes as shown below 3. Drill holes on wall using a drill machine...
- Page 3 4. Fix plastic wall fishers and screws provided in the h/w set to fix mount as shown below Fishers Screws 5. Place back the whiteboard on wall Installing TOUCH v2.0 on whiteboard Fix TOUCH unit using double sided tape or magnets as shown below 25mm Projection Area Magnets...
- Page 4 Installing TOUCH v2.0 on Wall Fix TOUCH unit on the wall using plastic wall fisher and screws as shown below 1 inch Screws Projection Area Fisher TOUCH v2.0 Fixing OPTIBAR Projection area Projection area Whiteboard Setup Wall Setup Following points should be taken care while using OPTIBAR Setup: OPTIBAR stickers to be used only in following projection setup.
- Page 5 Connectivity Align TOUCH 1. Press ‘Align’ button to turn ON the red line Laser Align 2. Rotate Gear ‘A’ counter clockwise so that red line laser is visible on the surface Whiteboard Whiteboard TOUCH TOUCH Align Top View 3. Adjust Gear ‘B’ so that the red line laser becomes parallel to wall or board surface Whiteboard Whiteboard TOUCH...
- Page 6 Click here Registered Offices Cybernetyx Interaktiv UG (haftungsbeschränkt) Friedrichstraße 15A, 31737 Rinteln, Germany Phone: + 49 162 342 8337 Indian operation CYBERNETYX Technik Pvt. Ltd. Plot : C-98, Sector-65, Noida - 201301, India Phone: + 91 120 421 8662 www. cybernetyx.com...
