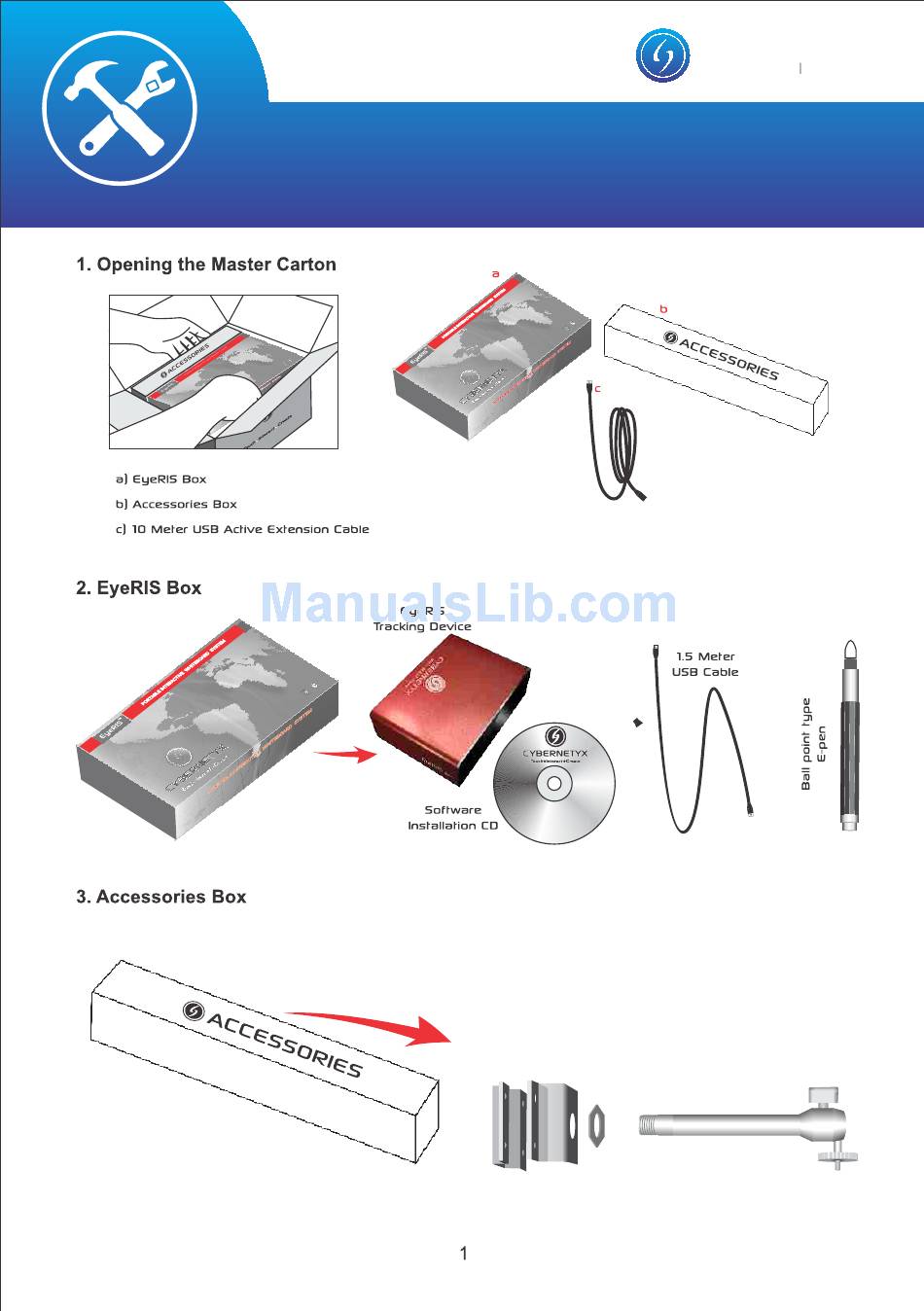

- Page 1 CYBERNETYX Interaktive Whiteboards Touchscreen Systeme Hardware Installation Manual 1.1> 2.1> 3.1> PROJECTOR MOUNT...
- Page 2 4. Mount with Projector Rod. Put the bottom portion of ceiling mount into the female part of the projector mount clamps using the nut provided. Bottom part of ceiling mount Socket 4.1> Female Clamp Other part of Clamp Using the four long screw fasten the projector mount clamps on the projector rod.
- Page 3 Mount and align the EyeRIS device using the socket at the end of the bottom portion of ceiling mount. 4.3>...
- Page 4 5. Mount with Projector Rod. 5.1>...
