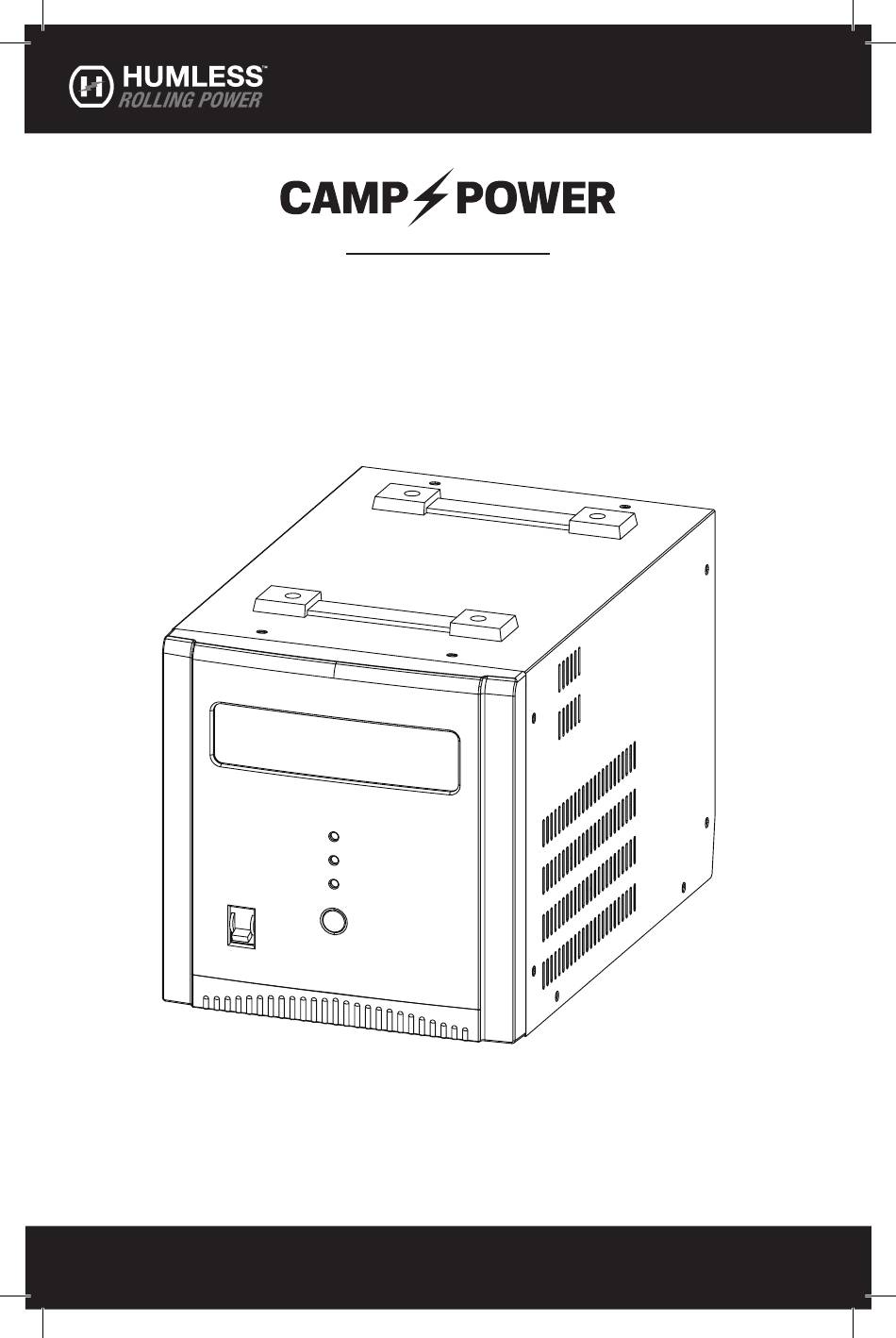

- Page 1 USER MANUAL SIM-700 PORTABLE INVERTER ATTENTION: Please follow the instructions in this user manual and pay close attention to all warnings. Please DO NOT operate before reading this USER MANUAL.
- Page 2 Neither Humless Rolling Power nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ........1 1.1 Foreword . -
Page 4: Introduction
1. INTRODUCTION 1.1 Foreword This manual provides a detailed introduction regarding the use of the Camp Power SIM-700. Please read the user instructions thoroughly in order to get the maximum benefit from your SIM-700. Should any questions arise during installation, please contact your installer or customer support (see page i). -
Page 5: Safety Precautions
8. DO NOT open the case or touch any internal parts or wiring. Only connect cables to the provided external ports. Warranty is voided if case is opened. 9. Please contact Humless Rolling Power for any repairs or maintenance needs. (See page i for contact information) 2. OPERATING INSTRUCTIONS 2.1 Product Installation &... -
Page 6: Precautions
Disconnect the battery and solar panel and any AC/shore power/generator. In the event of failure please contact your Humless Rolling Power dealer. 5. The unit has a high temperature shutdown feature, if this happens it will give a beeping sound. Disconnect output loads, turn off solar (PV), and let the unit cool down. -
Page 7: Ac Priority Mode
2.3 AC Priority Mode When AC power supply is normal: AC input will provide power to AC outputs through inverter. At this time, PV (Solar) gives power to batteries only through MPPT control system. 2.4 AC/Shore Power/Generator Power Cut Off The system automatically acts as a UPS (Universal Power Supply), this will allow constant AC output. -
Page 8: Product Panel & Display Details
3. PRODUCT PANEL & DISPLAY DETAILS TOP Green LED: Solar panel connect state. Long light means normal. Light off or flash means connection is unusual. Middle Yellow LED: Battery connect state. Long light means normal, light off or flash means connection is unusual. Bottom Red LED: Means abnormal state, light means solar part abnormal. -
Page 9: Turning On Steps
2. AC charging is main charging for unit. If AC switch is on and battery voltage is low unit will charge when AC Power is available. 4.3 Turning On Steps ATTENTION: Do not use unit unless connected to the proper battery! Step 1: Please ensure the battery is connected properly (positive/ negative and voltage is consistent with the product the). -
Page 10: Lcd Display
5. LCD DISPLAY AC/Grid power input normal, device though AVR supplies output. AC/Grid power input normal, battery through inverter supplies AC output. Temperature is to high, device cuts off output. Battery over voltage, short circuit, high temperature. AC/Grid power input is over voltage. AC/Grid power input is low voltage. -
Page 11: Specifications
6. SPECIFICATIONS SIM-700 Power Capacity: AC out 700W Battery voltage 12Vdc Working mode PV(Photovoltaic priority) / AC (AC priority) Optional Input voltage 15Vdc-50Vdc range Max. charge current Max. conversion efficiency Panel indicator Display LED Graphic Screen LED lights light Input voltage 100Vdc~120Vdc range Input frequency... - Page 12 50 Hz / 60 Hz ± 0.3Hz frequency adaptive Wave form Linear load ≤ 3% distortion Inverter output PV-AC transfer 4Ms typical value Max.6 Ms time Efficiency Inverter mode ≥ 80% 110%-130% shutdown at 30s, Inverter overload 130%-150% shutdown at 3s c r i Systems automatically shut down 1 time / 1S, silence auto after 5S /...
- Page 13 NOTES:...
- Page 16 ©2018 Humless Rolling Power, LLC. All Rights Reserved. 1374 West 200 South, Lindon UT, 84042 www.HumlessRollingPower.com 083118 •...
