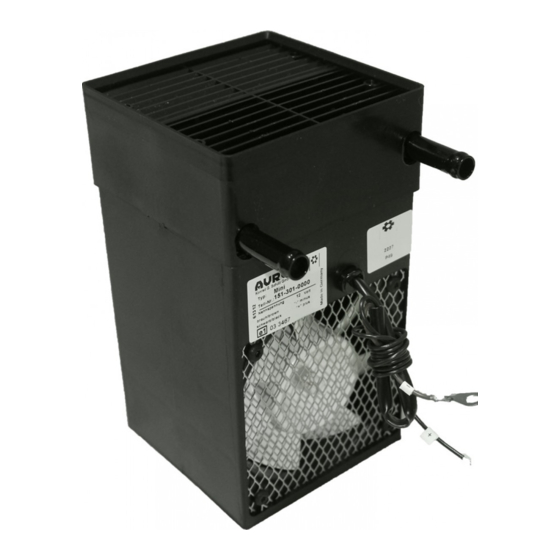

Heater Mini
Content:
1
2
3
4
5
6
7
8
9
10
The information on this document and the copyrights are ownership of
AURORA Konrad G. Schulz GmbH & Co. KG, Joachim Schulz str.4, D-69427 Mudau.
Transmission or duplication of this document or the utilization of the contents is not allowed without the
agreement of AURORA Konrad G. Schulz GmbH & Co. KG otherwise it is explicit allowed. Violation will be
prosecuted. All rights of patents, industrial designs and trademarks are reserved.
We reserve the right to make technical modifications
author: 15.04.1999 KH
date/name
a) 7726 14.05.01 KH
b) 8639 19.03.03 KH
c) 9708 28.06.04 KH
d) 11440 18.04.06 KH
Technical
Information
A U R O R A
Konrad G. Schulz GmbH & Co. KG
Tel.: 0 62 84 / 92 02-0
info@aurora-eos.com
www.aurora-eos.com
Please pay attention to ISO 16016.
checked: 25.03.15 CK
date/name
e) 11717 11.07.06 KH
f) 12014 24.10.06 KH
g) 16415 05.10.10 KH
h) 19358 08.11.12 KH
no.
912-100-0123
released: 25.03.15 i.A.CK
date/name
i) 20613 11.11.13 KH
j) 21985 10.03.15 KH
page
1/8
Advertisement
Table of Contents
Related Manuals for Aurora Mini Series
Summary of Contents for Aurora Mini Series
-
Page 1: Table Of Contents
Transmission or duplication of this document or the utilization of the contents is not allowed without the agreement of AURORA Konrad G. Schulz GmbH & Co. KG otherwise it is explicit allowed. Violation will be prosecuted. All rights of patents, industrial designs and trademarks are reserved. -
Page 2: Safety Advises
Please pay attention to the rules for the prevention of accidents. Device description The heater versions differences are the nominal voltage, the air outlets and the heat exchanger connections. This technical information is valid for the following versions: AURORA-part no. nominal Air outlets Heat exchanger connection-∅ voltage... - Page 3 Technical 912-100-0123 Information AURORA-part no. nominal Air outlets Heat exchanger connection-∅ voltage 151-301-0017 air outlet box with flap and 1 ∅12 straight connection socket ∅55 mm 151-301/302-0018 12V/24V air outlet box with flap and 1 ∅12 straight connection socket ∅55 mm...
- Page 4 The heater can basically be operated with external or recirculating air. Therefore have the requirements set into the vehicle according to the operation situation. The heater is delivered by AURORA completely pre-mounted, the installation into the vehicle is carried out by the customer.
-
Page 5: Function Description
During setting the drills, please, make sure that inside components are not damaged. As an option fixing elements can be supplied by AURORA. hose After installation of the Mini the electrical, the water side connection and optional the air connections have to be set. -
Page 6: Technical Data
The warm air hoses are pushed over the heaters sockets (option). It is essential to use appropriate hose clips for connecting the warm water hoses to the heat exchanger with a tightening torque of approx. 3-3,5 Nm (if using AURORA-clips). Check the system on leaks. -
Page 7: Maintenance
Cooling water circuit: When refilling the cooling water quality has to be considered. When using AURORA water valves the warranty expires when defects occur due to contamination in the water circuit. (see TI 971-190-0003 anticorrosion/antifreeze solution. Please order in the case of need) The air suction grid has to be checked on contamination and cleaned if necessary in regularly intervals. -
Page 8: Fault Diagnosis
page Technical 912-100-0123 Information Fault diagnosis Fault Cause Remedy Fuse defective or loose Check the seating of the fuse? If No air flow necessary insert correctly. Renew defective fuses. Interruption of line Test lines on loose contacts or breaks Blower motor defective replace motor switch for blower defective change operation element...
