Videosec SS-B User Manual

User Guide

RF Smart AC Switch & Push Switch
The SS-B / SS-C is a RF switch designed with 100-240VAC input and 100-240VAC output, to switch on/off single
color LED lamps, traditional incandescent and halogen lights. The RF switch comes with 1 channel and maximum
1.5A or 3A output and can be compatible with a variety of RF series remote controls. Push function is available
while the RF switch is connected with a push switch.
Feature
● RF smart switch with relay output, without dimming function.
● Suitable to insert standard panel bottom box.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● One RF switch can accept up to 10 remote control.
● Great compatibility with a variety of dimming remote.
● To switch single color LED lamps, traditional incandescent and halogen lights.
● Connect with external push switch optional.
Technical parameter
Input voltage Output voltage
Model
SS-B 100- 240VAC 100- 240VAC
SS-C 100- 240VAC 100- 240VAC

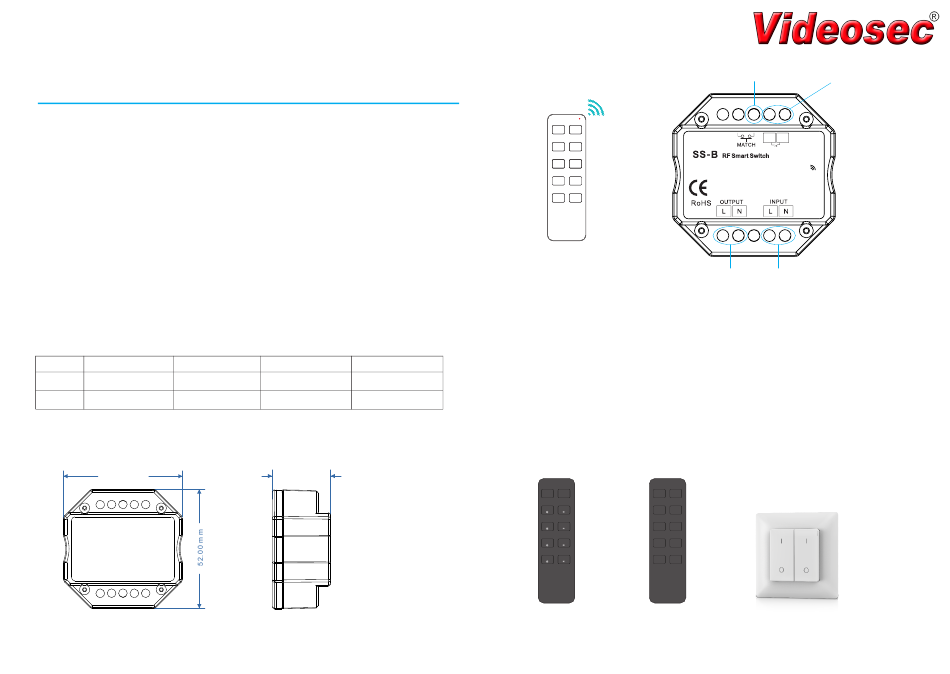

Dimension
52.00 mm
Output current Output power
1.5A 150-360 W
3.0A 300-720 W
26.00 mm
Interface specification
Uin=100-240VAC
Iin=1.5A
RF Remote
AC output
Match guide
There are two kinds of method to match the RF switch with the RF remote.
Use Match key
●
1. Match: Short press match key of the RF switch, within 5s, press any zone on/off key of the remote.
2. Delete: Long press match key of the RF switch for 5s, delete all matched remote.
Use Power-up
●
1. Match: Switch off the power, then switch on power again,
short press on/off key 3 times on the remote quickly within 5s after power on, the link is done.
2. Delete: Switch off the power, then switch on power again,
short press on/off key 5 times on the remote quickly within 5s after power on, the unlink is done.
Available RF remote
ON OFF
ON OFF
All All All All
ON OFF
1 1 2
ON OFF 3 4
2
ON OFF
3 5 6
ON 4 OFF 7 8
RU4 RU8
4 zone remote 8 zone remote
Match key External Push Switch
-
+
Push-Key
Uout=100-240VAC
2.4G
Iout=1.5A
-
Pout=150 360W
Temp Range:-30℃~+55℃
AC input
PF1-2
2 zone remote
