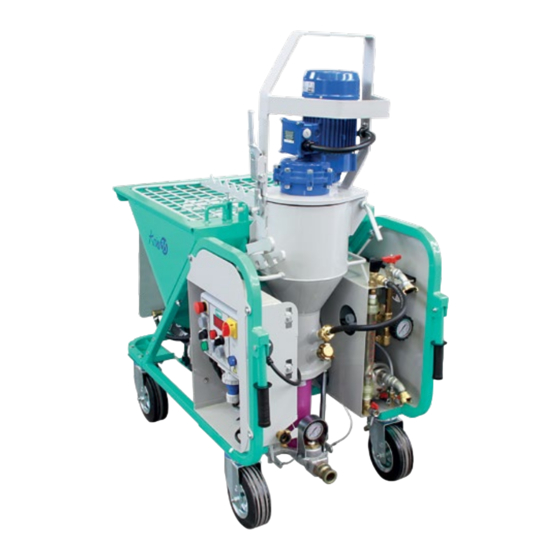

IMER USA Koine 35 Quick User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
www.imerusa.com | IMER USA (301) 336-3700

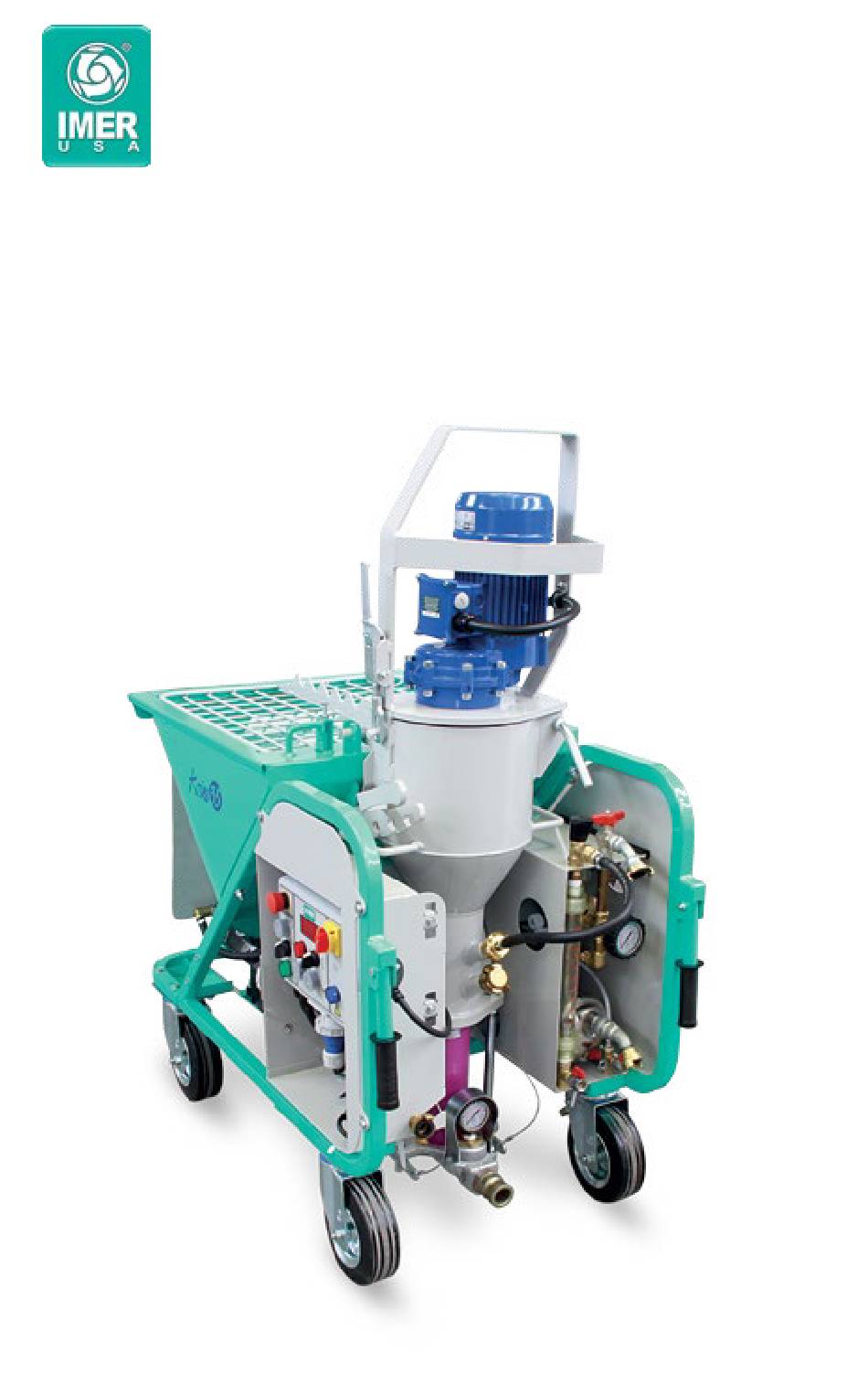

Koine 35 Quick User Guide
IMER USA
1

Advertisement

loading

Related Manuals for IMER USA Koine 35

Summary of Contents for IMER USA Koine 35

  • Page 1 | IMER USA (301) 336-3700 Koine 35 Quick User Guide IMER USA...

  • Page 2: Table Of Contents

    Bagged materials present many different characteristics when mixing, spraying or pumping. Please consult with the material producers or IMER to learn if the Koine 35 is the right pumping system for the material to be used. The Koine 35 is a continuous pump / mixer that can only be used with pre-blended materials.
  • Page 3 | IMER USA (301) 336-3700 Setup Step 1: Plug the 220V, single phase connection into the plug and switch “ON” the main on/off switch (3) as shown on the control panel (Fig. 1). A blue light (2) indicates that the pow- er is on.

  • Page 4: Setup--3

    Koine 35 Quick User Guide Setup (Continued) Step 4 (For Spraying): Attach the air hose to the air port (Fig. 4) and to the spray wand. Open the air valve on the spray wand. (Fig. 5) There are different spray nozzle tips, the sizes depend upon the application, spray pattern and volume desired.

  • Page 5: Priming And Calibrating--5

    | IMER USA (301) 336-3700 Priming and Calibrating Step 5: Fill the mixing chamber with water (Fig. 6) by remov- ing the water feed hose and directing water into the port allowing the mixing chamber to overflow. Press the manual water control switch (5) shown in (Fig.
  • Page 6 Koine 35 Quick User Guide Priming and Calibrating (Continued) Step 6: Load the feeding hopper (Fig. 8) with the bags of material to be pumped or sprayed and switch on the hopper feeding wheel (Fig. 9). The feeding wheel will not start spin- ning until (9) “forward”...
  • Page 7 | IMER USA (301) 336-3700 Priming and Calibrating (Continued) Step 7: Once the switch (9) in (Fig. 7) is engaged to forward, the system will start to feed material into the mixing cham- ber and material will start to flow from the material hose outlet (Fig.
  • Page 8 Koine 35 Quick User Guide Priming and Calibrating (Continued) Step 8: Prime the material hose with portland cement slurry by mixing a small bucket of straight portland cement and water, mixing to a flowable “pancake batter” consistency free of lumps. A good rule of thumb is about 1 gallon per every 100’...

  • Page 9: Pumping And Spraying--9

    | IMER USA (301) 336-3700 Pumping and Spraying Step 9: Once the material hose is connected after you have cal- ibrated and primed the pump you may commence operation of the pump. Ensure that the feeding wheel is set to “on”, the water booster switch is “on”.

  • Page 10: Clean

    Koine 35 Quick User Guide Clean-Up (Continued) Step 12: Now you need to run water through the material hose to clear it out. Place a sponge ball into the material hose from the cam lock end and attach it to the supplied 25mm to geka coupler adapter.
  • Page 11 | IMER USA (301) 336-3700 Clean-Up (Continued) Step 13: Open the main motor hatch and remove the mixing paddle and insert the clean-out tool (Fig. 15). Insert the tool into the stator end making sure that it is seated properly.
  • Page 12 Koine 35 Quick User Guide Koine 35 Error Code Table These error messages are shown on the inverter display panel when specific situations arise: ERR 00: The drive motor is open or the mixing chamber is not 90º •The main power cord from the motor to the feeding wheel switch disconnected.
