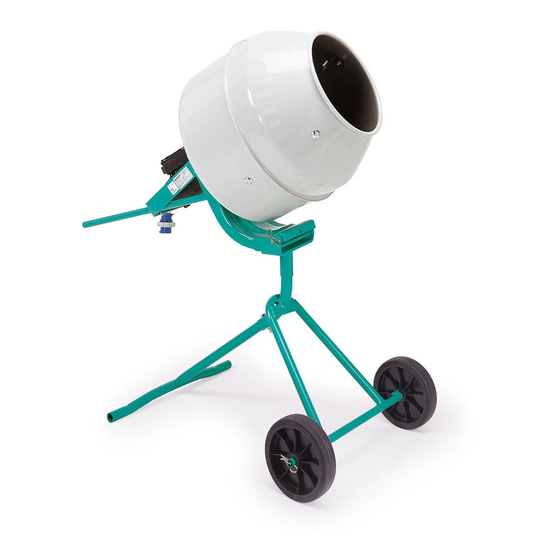

- Page 1 IMER U.S.A. inc. MINUTEMAN MIXER (1126608) INSTRUCTION MANUAL IMER U.S.A. Inc. Part. number 3210929_R01 - 12/2012 221 Westhampton Place Capitol Heights, MD 20743 Machine serial N° Ph / 800.275.5463...
- Page 2 S/N : Thank you for purchasing a MINUTEMAN Mixer from an IMER U.S.A. dealer. Your decision is an intelligent one. No other mixer in the world today offers the features and value of the MINUTEMAN Mixer. * After the initial set-up the MINUTEMAN Mixer can be knocked down or reassembled in 1 minute.
-
Page 3: Table Of Contents
WIRING DIAGRAM ....................page 5 SAFETY NOTES ......................page 6 ASSEMBLY ....................... page 7 MOVING THE MINUTEMAN................. page 9 SETTING UP THE MINUTEMAN ................page 9 OPERATING THE MINUTEMAN ................page10 MAINTENANCE AND CLEANING................. page10 ORDERING SPARE PARTS ..................page10 SPARE PARTS DIAGRAM .................. -
Page 4: Technical Data
IMER U.S.A. Inc. MINUTEMAN TECHNICAL DATA 1 MIXING DRUM 5 GEARBOX MOUNTING FRAME 2 ON/OFF SWITCH 6 SWIVEL BRACKET 3 DUMP HANDLE 7 MAIN FRAME 4 MOTOR AND GEARBOX DRIVE 8 T-BAR Drum capacity 5 cubic feet Batch Output 2.5 cubic feet, 225 lbs. *... -
Page 5: Noise Level
IMER U.S.A. Inc. MINUTEMAN NOISE LEVEL The MINUTEMAN has a noise emission level of 65 decibels. It's very quiet, operate it anywhere. WIRING DIAGRAM Neutral wire Phase wire Stop and start button Thermal protection for electric motor Capacitor Single phase motor... -
Page 6: Safety Notes
SAFETY NOTES IMPORTANT ! READ THIS SECTION CAREFULLY ! Your MINUTEMAN mixer has been designed with safety in mind. However, as with any type of machinery, some basic DO'S and DONT'S apply: DO NOT Place your hand or hands in or around any part of... -
Page 7: Assembly
(wheel axles, swivel bracket, etc.). Periodically inspect your mixer for abnormal wear or damage. If something does not seem right call your dealer or IMER USA direct @ 800.275.5463. Wear the appropiate safety gear; hard hat ,gloves, goggles, ear protection and wear tight clothing around the mixer. - Page 8 IMER U.S.A. Inc. MINUTEMAN ASSEMBLY Fit the gear-box frame and motor assembly (# Slide the swivel bracket (# 15 Drawing 1) onto 7 Drawing 1) into the swivel bracket (# 15 the main frame upright. The gear-box and motor Drawing 1) with the anchor pin, (# 17 Drawing...
-
Page 9: Moving The Minuteman
DIRECTION CORRECT ASSEMBLY POSITION FOR WRONG ASSEMBLY POSITION FOR THE SWIVEL BRACKET THE SWIVEL BRACKET MOVING THE MINUTEMAN WARNING Drawing 4 Always disconnect the power cord before moving the mixer. To roll the machine, hold the support leg and dump handle and move as shown in Drawing 4. -
Page 10: Maintenance And Cleaning
4) The ON/OFF switch in the motor of the MINUTEMAN mixer provides thermal protection to the motor in the event of overheating. Should your motor shut off automatically, turn off the unit and unplug it for 15 minutes. - Page 11 IMER U.S.A. Inc. MINUTEMAN DRAWING #1 - FRAME AND DRUM ASSEMBLY Ref. P.n. Description NOTE 2222193 SCREW TB M12 x 25 2250155 MIXING PADDLE 2223700 5588 M12 Z 2250719 DRUM 2222982 T - BOLT 2224428 WASHER 14X36X6 3210935 GEAR BOX FRAME...
- Page 12 IMER U.S.A. Inc. MINUTEMAN DRAWING #2 MOTOR AND GEARBOX ASSEMBLY (110/115 V - 60Hz)
- Page 13 IMER U.S.A. Inc. MINUTEMAN DIAGRAM #2 MOTOR AND GEARBOX ASSEMBLY COD. 3210492 (110 / 115 V - 60 Hz) UP TO SERIAL RIF. P.n. Description Note NUMBER: 2222010 BOLT M6x25 2207405 OIL SEAL 55x40x10 2222012 BOLT M6x60 3210485 GEARBOX CASE-HALF...
-
Page 14: Warranty
IMER U.S.A. Inc. MINUTEMAN U.S.A. INC. EQUIPMENT WARRANTY IMER U.S.A. INC. HEADQUARTERS 221 Westhampton Place Capitol Heights, MD 20743 Ph / 800.275.5463 We warrant to the original purchaser that the IMER equipment described herein (the "equipment") shall be free from defects in material and workmanship under normal use and service for which it was intended for period of one (1) year from the date of purchase by the original purchaser.
