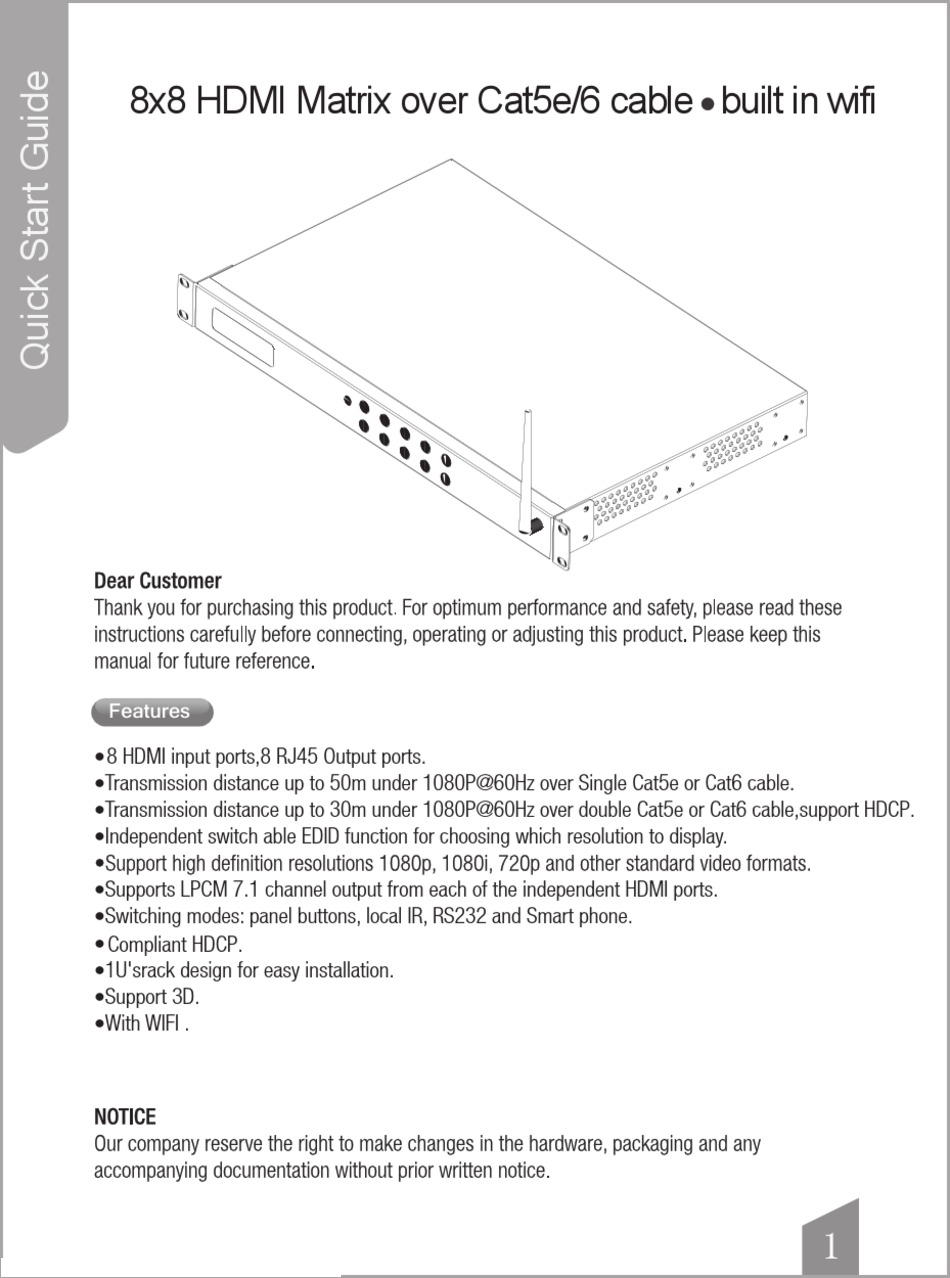

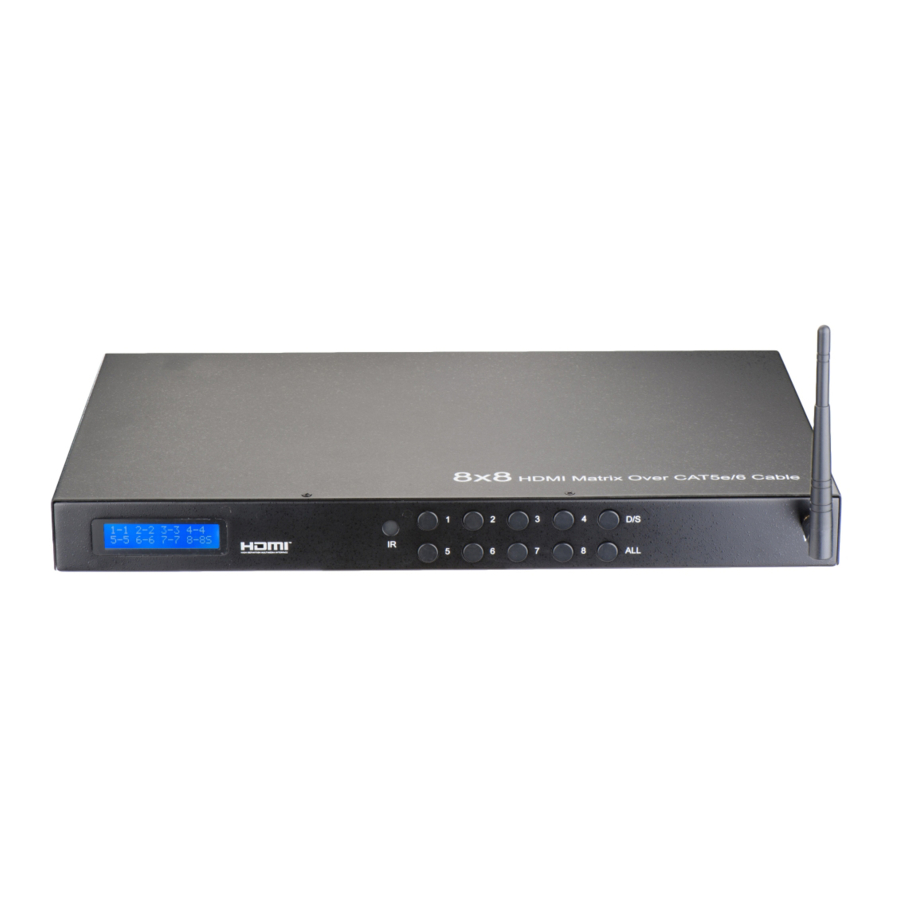

8x8 HDMI Matrix over Cat5e/6 cable built in wifi
Features
• 8 HDMI input ports,8 RJ45 Output ports.
•Transmission distance up to 50m under 1080P@60Hz over Single Cat5e or Cat6 cable.
•Transmission distance up to 30m under 1080P@60Hz over double Cat5e or Cat6 cable,support HDCP.
•Independent switch able EDID function for choosing which resolution to display.
•Supports LPCM 7.1 channel output from each of the independent HDMI ports.
•Switching modes: panel buttons, local IR, RS232 and Smart phone.
•Support HDCP .
Compliant HDCP.
•1U'srack design for easy installation.
•Support 3D.
•With WIFI .
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SX-MX88-3DCAT and is the answer not in the manual?

Questions and answers

Related Manuals for Foxun SX-MX88-3DCAT

Summary of Contents for Foxun SX-MX88-3DCAT

  • Page 1 8x8 HDMI Matrix over Cat5e/6 cable built in wifi Features • 8 HDMI input ports,8 RJ45 Output ports. •Transmission distance up to 50m under 1080P@60Hz over Single Cat5e or Cat6 cable. •Transmission distance up to 30m under 1080P@60Hz over double Cat5e or Cat6 cable,support HDCP. •Independent switch able EDID function for choosing which resolution to display.
  • Page 2 TABLE OF CONTENTS Packing contents Package Contents 1) Main Unit: 8x8 HDMI Matrix Dimensional drawing 2) Power supply DC 12V 4A Speci cations 3) Remote Controller Panel Descriptions 4) IR-RX cable x 1PCS Connecting and Operating 5) M3x5 Screw x 8PCS Typical Application 6) Operating Instructions Maintenance...
  • Page 3 -5 to +35 C(+23 to +95 5 to 90%RH (No Condensation) 225MHz/6.75Gbps Up to 1080p@60Hz@24 b/pixels, support 3D HDMI receptacle. RJ45 receptacle Power connector terminal Power DC receptacle IR Extender 1080P 30m over Dual Cat5e/6 cable , support HDCP. 1080P 50m over Single Cat5e/6 cable Note: Please restart the matrix after changing the ※...
  • Page 4 ALL: Press this button to set all the outputs to display the same input source. First pressing ALL: Press this button to set all the outputs to display the same input source. First pressing the “All”button then,press an input number to confirm the selection. the “All”button then,press an input number to confirm the selection.

  • Page 5: Operation

    Operation 8-8D 1. Front panel control There are four groups of LEDs for each output port. The LED lit on the position means that the output port selects this input as its source.For eg.”5-8” led lit,means output5 is selecting input8 source. 2.
  • Page 6 2.1 Receive Window The “receive window” will show the message received from matrix. When you click the Control Buttons (see step 4) or send Control Command (see 2.3) to matrix, it will send out the message about “operation results” as right: 2.2 Status Button Click this button to read the status of Matrix.
  • Page 7 4 Setting Button Click this button to enter Setting menu. If the signal is not stable, please turn on the S mode(Transmitter HDMI OVER sigle cat5e cable) 4.1 EDID Set button 1).Select the Output Port in “Port Select” column, click “Read EDID” button to get EDID from display equipment.
  • Page 8 5.Android OS control 5.1 Install android apk(Matrix88.apk) 5.2 Connect device (10.10.100.254), then click “connect” to enter. Main menu...
  • Page 9 6.IOS control 6.1 Go to “App store ”， search “Matrix88” ,download and install the APP. 6.2 Connect device Set the Wifi in your iPhone/iPad ,run “Matrix88”, input equipment WIFI module’s IP address (10.10.100.254) ,then click “Button” to enter. Main menu...
  • Page 10 RS-232 pin assignment HDMI Matrix Remote Control Console Assignment Assignment...

  • Page 11: Hdmi Matrix

    HD camera IPTV Blue-ray player Xbox HDMI matrix HDMI cable Dual Cat5e/6 cable...
  • Page 12 RS-232 Commands (The symbol "_ " in the belowing command means : Press the space key ) command feedback description cir_0x\r\n 63 69 72 20 30 xx 0D 0A Output 1 select input 1~8 “x” : indicate the input port, range from 0~7. “y”...
