Foxun SX-EW70 Operating Instructions Manual

Hdmi wall plate

Table of Contents

Download this manual

Operating Instructions

FEATURES

•Incorporates HD Base-T technology

•Following North American wall plate standard(2 Gang indoor outlet)

•Full HD support: 1080p@60Hz@48 b/pixels, 4Kx2K and support 3D

•Extends HDMI and IR up to 228 feet (70 meters) using one CAT5e (or better) cable

•With Infrared control signal passing through function.

•Supports high bit-rate audio formats (Dolby True-HD / DTS Master Audio)

•Both inner and outer power connectors provided

•UTP cable termination follows the standard of IEEE-568B.

•CEC Pass-Through

•DC 5V power supply

•Compliant HDCP

Table of Contents

Need help?

Do you have a question about the SX-EW70 and is the answer not in the manual?

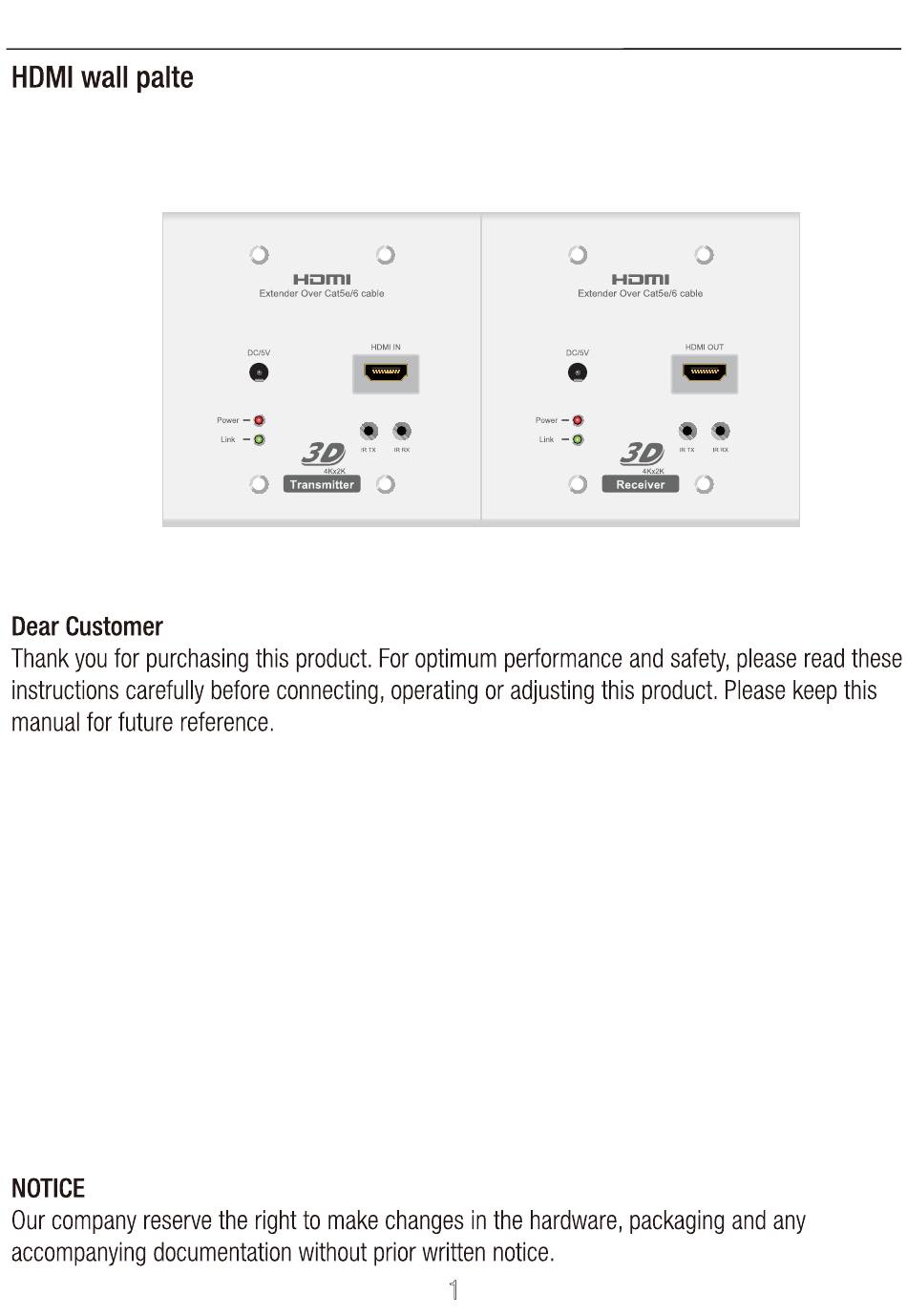

Page 1 Operating Instructions FEATURES •Incorporates HD Base-T technology •Following North American wall plate standard(2 Gang indoor outlet) •Full HD support: 1080p@60Hz@48 b/pixels, 4Kx2K and support 3D •Extends HDMI and IR up to 228 feet (70 meters) using one CAT5e (or better) cable •With Infrared control signal passing through function.
Page 2 Operating Instructions...
Page 3 Operating Instructions -5 to +35 C(+23 to +95 F) 5 to 90%RH (No Condensation) 300MHz/9Gbps Up to 1080P and 4Kx2k HDMI receptacle. RJ45 Power connector terminal Power DC receptacle IR Blaster 1080P 228FT/70m over single CAT5E/6 cable 110-240V/ 5VDC power supply 3Watts(TX),5Watts(RX) ABS fire retardant plastic W115.5xH114.5xT32.5mm...
Page 4 Operating Instructions...
Page 5 Operating Instructions 7) Copy EDID function Copy the EDID of the sink which connected the OUTPUT1,it is suggested to put lowest or For example: One SDTV(480p) ,one HDTV(1080p), in order to make the 2 TV work, you need to put the SDTV is connected to the output 1 .
