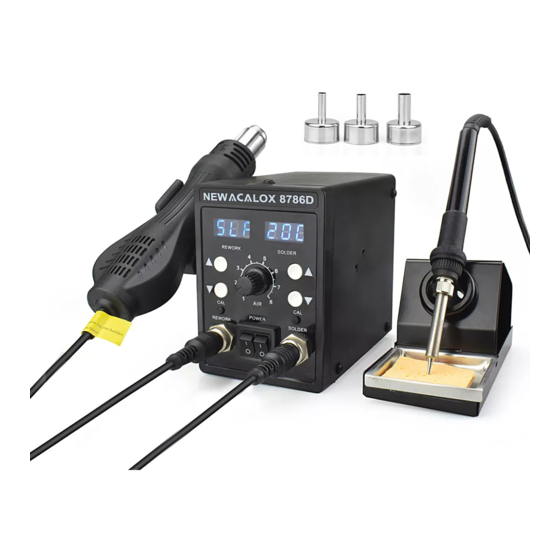

NEWACALOX 878D/8786D
SMD REWORK STATION User Manual
welcome to use newacalox 878D soldering station. This manual will show
the parameters, performance, usage and precautions of this machine.
If you have any problem of usage or any suggestion about this soldering
station, please send the email to
Warranty :
1: HEAT GUN Accessories and soldering iron accessories if broken within
a month can send a replacement by connecting with after service.
(support@newacalox.com)
2:If the gadgets in the package are lost, please contact us for reissue,
thank you.
3:We will guide you carefully about the use and maintenance of this
product.
Our products 878D soldering station use the brush-less fan,and long life
and low noise.It is very good for repair phone and PCB.Please read this
operating instruction manual carefully before using the serial products of our
company.Thank you!
If you like our product, can you share your experience or review for it on
Amazon. It can help us a lot,thanks in advance.
Matters Needing Attention :
1.
Be careful not to burn yourself when using it because it is hot.
2.
make sure that you have connected the heat gun handle to the station before turn
on it. And Only can unplug the heat gun after trun off station. Otherwise, it will burn
out the heat gun handle and damage the main machine of the rework station.
3.
When you stop using soldering station, please don't disconnect the plug
immediately when you turn off the power button of soldering station. And this
soldering station will automatically shut down as soon as it stop blowing wind.
Otherwise you will shorten the life of soldering station. And please remove the
plug if you do not use this station for a long time.
4.
when using this station for the first time, please use it in a ventilated environment.
Keep the heat gun away from your eyes. When the oil is exhausted, the heat gun
will no longer have an unpleasant smell.
support@newacalox.com,
thank you.
