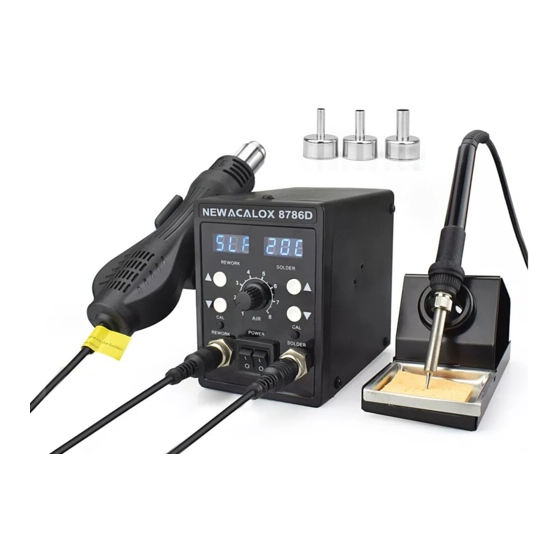

NEWACALOX 8786D
SMD REWORK STATION User Manual
This manual will show the parameters, performance, usage and precautions
of this machine.
Warranty :
1: HEAT GUN Accessories and soldering iron accessories if broken within a
month can send a replacement by connecting with after service.
2:If the gadgets in the package are lost, please contact us for reissue, thank
you.
3:We will guide you carefully about the use and maintenance of this product.
newacalox 8786d soldering rework station uses a brush-less fan, and long life
and low noise.It is very good for repair phone and PCB. Please read this
operating instruction manual carefully before using the serial products of our
company. Thank you!
Matters Needing Attention :
1. Be careful not to burn yourself when using it because it is hot.
2. make sure that you have connected the heat gun handle to the station
before turn on it. And Only can unplug the heat gun/soldering iron after trun off
station. Otherwise, it will burn out the heat gun handle and damage the main
machine of the rework station.
3. When you stop using soldering station, please don't disconnect the plug
immediately when you turn off the power button of the soldering station.
Otherwise, you will shorten the life of the rework soldering station. And please
remove the plug if you do not use this station for a long time.
4. when using this station for the first time, please use it in a ventilated
environment. Keep the heat gun away from your eyes. When the oil is
exhausted, the heat gun will no longer have an unpleasant smell.
5. The handle is a gravity-sensing type, which can be turned on when facing
downwards and enters dormant state when facing upwards.
6. For 8786D, click the right black knob to adjust the temperature
Specification
Only for 110v
Advertisement
Table of Contents
Related Manuals for Newacalox 8786D
Summary of Contents for Newacalox 8786D
- Page 1 3:We will guide you carefully about the use and maintenance of this product. newacalox 8786d soldering rework station uses a brush-less fan, and long life and low noise.It is very good for repair phone and PCB. Please read this operating instruction manual carefully before using the serial products of our company.
- Page 2 Usage...
- Page 3 Essential product for cell phone repair, laptop repair, circuit boards, etc. Suitable for unsoldering multiple components,such as SOIC CHIP QFP PLCC and BGA etc (especially for flat cables and cable connectors).International standard heater for convenient use and exchange, noise-reducing and space- saving.
- Page 4 Hot air Gun : 1.Assemble the station with the heat gun and soldering accessories. 2. Make sure to turn off all the on-off buttons before plug in the power supply. 3. set the temp steps can follow (Temperature Adjustment ) 4.Set the airflow by rotating the airflow setting knob.
- Page 5 Temperature memory function When you turn off the station at 400 ℉, when you turn on next time, it will auto heat up to the 400 ℉. 5.When you finish your work, put the blower handle back on the holder,the station will stop warming automatically,the station will show “---”,that meant the tool is going to enter standby state 6.To switch off the power and unplug if there is no operation for a long period...
- Page 6 Temperature Calibration All 8786D soldering rework stations have been temperature-calibrated before leaving the factory. Do not do the calibration without guide. If you need to calibrate after a long time of use, please contact the after-sales customer service mailbox(support@newacalox.com) to calibrate according to...
- Page 7 temperature measuring instruments. Nozzles don't fit The nozzles produced are all tight. In order to avoid being too easy to fall off during use, there is a danger of burns. You can take it out with pliers. After a few more uses, there will be no this problem again, or you can use pliers to adjust the size of the nozzle.
