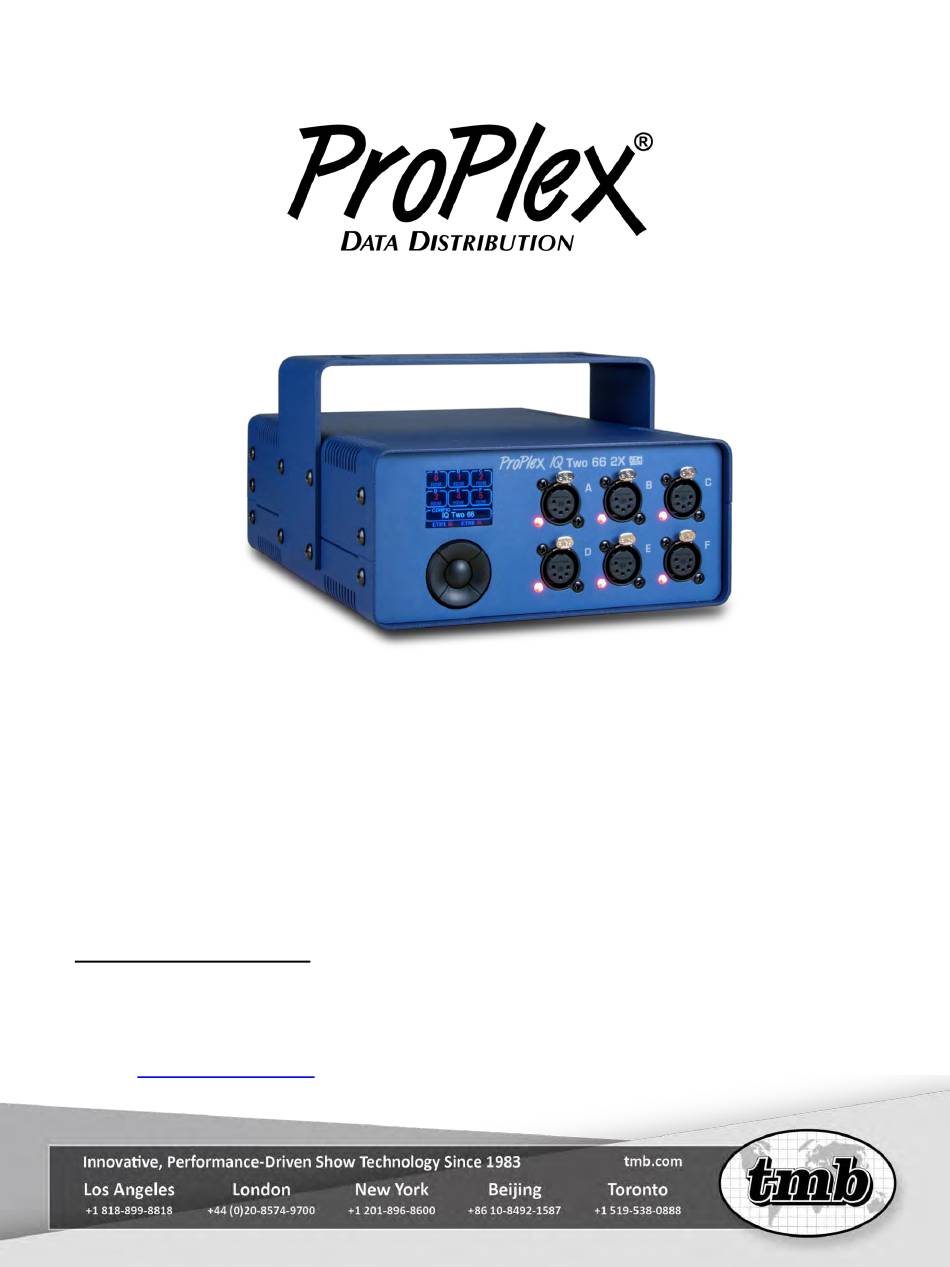

- Page 1 ProPlex IQ Two 66 2x USER MANUAL TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com...
-
Page 2: Specifications
Specifications Power 100-240 VAC 50-60 Hz Power Consumption 10.2 A Fuse 1.0A 250V Ethernet Ports DMX Ports DMX Connectors Neutrik XLR5 Female (NC5FAV) DMX Port Isolation Optical, up to 1000V Ethernet Connectors Neutrik EtherCon RJ45 Ethernet Type 1 Gbps Network Protocols ArtNet, sACN (E1.31) Cooling Convection... - Page 3 Overview NOTE: Ethernet port 1 supports PoE Input...
-
Page 4: Led Status Information
LED status information Configuration ProPlex IQ Two can be configured locally on the unit by using the keypad or remotely through the Ethernet port by accessing the built-in web page with a web browser or with the ProPlex Software. Access Main menu functions using the navigation pad next to the LCD display. - Page 5 At the bottom of the home screen are located two indicators. ETH1 and ETH2 indicates status of the two Ethernet ports located at the back of the unit. RED: None of the ports are connected and active. GREY: Port is inactive GREEN: Port is connected and active (1Gbps) ORANGE: Port is connected and active (10/100 Mbps) Menu Tree...
-
Page 6: Port Setup
Port Setup Press any of the directional buttons on the home screen to activate selection window marked green. Press <SELECT> to access the desired menu. Use <UP> and <DOWN> buttons to scroll through the menus. <LEFT> menu button can be used as secondary <BACK> button and <RIGHT>... - Page 7 Direction Press <SELECT> to access the DMX Direction submenu. Press <UP> or <DOWN> to assign the port direction (OUT/ IN) for each DMX port. Press <SELECT> or <RIGHT> to accept, <LEFT> to decline changes. Press <SELECT> to access the RDM submenu. Press <UP>...
-
Page 8: Protocol Setup
When the "Hold values" (DEFAULT) setting is chosen, after the source DMX is lost, the ProPlex IQ Two 66 2X holds the last DMX values it has received and continues to output these values until incoming DMX has been restored. - Page 9 Source loss timeout Press <UP> or <DOWN> to set Source loss timeout (5-120s) Press <LEFT> or <RIGHT> to decline or confirm, <SELECT> to accept. This setting determines how long the IQ Two 2x will wait before using the Source Loss setting. This time is set in seconds (5-120). Once the source loss timeout time has been reached, the IQ Two will revert to the Source Loss timeout setting.
-
Page 10: Network Setup
Network Setup Press <SELECT> or <RIGHT> to enter the Network Setup submenu or <LEFT> to return to the home screen. IP Address Press <UP> or <DOWN> to change value for each highlighted window. Press <LEFT> or <RIGHT> to navigate selection window. Press <DOWN>... -
Page 11: Node Setup
Node Setup Press <SELECT> or <RIGHT> to enter the Node Setup submenu or <LEFT> to return to the home screen. Info Info menu gives the information about the software version currently on the device. Press any button to return to NODE submenu. LCD/LED Brightness Press <DOWN>... -
Page 12: User Configuration
Universe Format Press <DOWN> or <UP> to choose how Universe format for DMX ports will be displayed at the home screen. Press <SELECT> or <RIGHT> to set or <LEFT> to decline. Press <LEFT> to return to the home screens. Configuration Press <SELECT>... - Page 13 By pressing Record, another window will pop up to confirm or decline recording. Navigate to decline by pressing <LEFT> or confirm by pressing <RIGHT> Press <SELECT> to confirm or decline changes. If the user chooses to record current settings, it will return user to previous window.
-
Page 14: Installation
By pressing any of three default settings, another window will pop up to confirm or decline changes. Navigate to decline by pressing <LEFT> and confirm by pressing <RIGHT>. Installation MOUNTING / RIGGING Orientation – ProPlex Mini units may be mounted in any position, using the standard yoke. Always make sure there is adequate room for ventilation. - Page 15 ProPlex RackMount Kits are available for both Single- or Dual-unit mounting configurations. The 2U RackMount Kit Single is comprised of two rack ears, one long and one short. The Dual has two short rack ears + two Dual Joiners for front and rear of the units. To fasten the rack ears to the ProPlex PortableMount chassis, remove the three chassis screws on each side that align with the rack ear mounting holes at the front of the chassis.
-
Page 16: Limited Warranty
(2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods. -
Page 17: Return Procedure
Please send returned merchandise prepaid and in the original packing. Freight call tags will not be issued for shipping the product to TMB, but TMB will pay the freight for return to the customer. Clearly label package with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will delay service.
